PECA 30 / 30 E : programming-configuration
19
ARDETEM

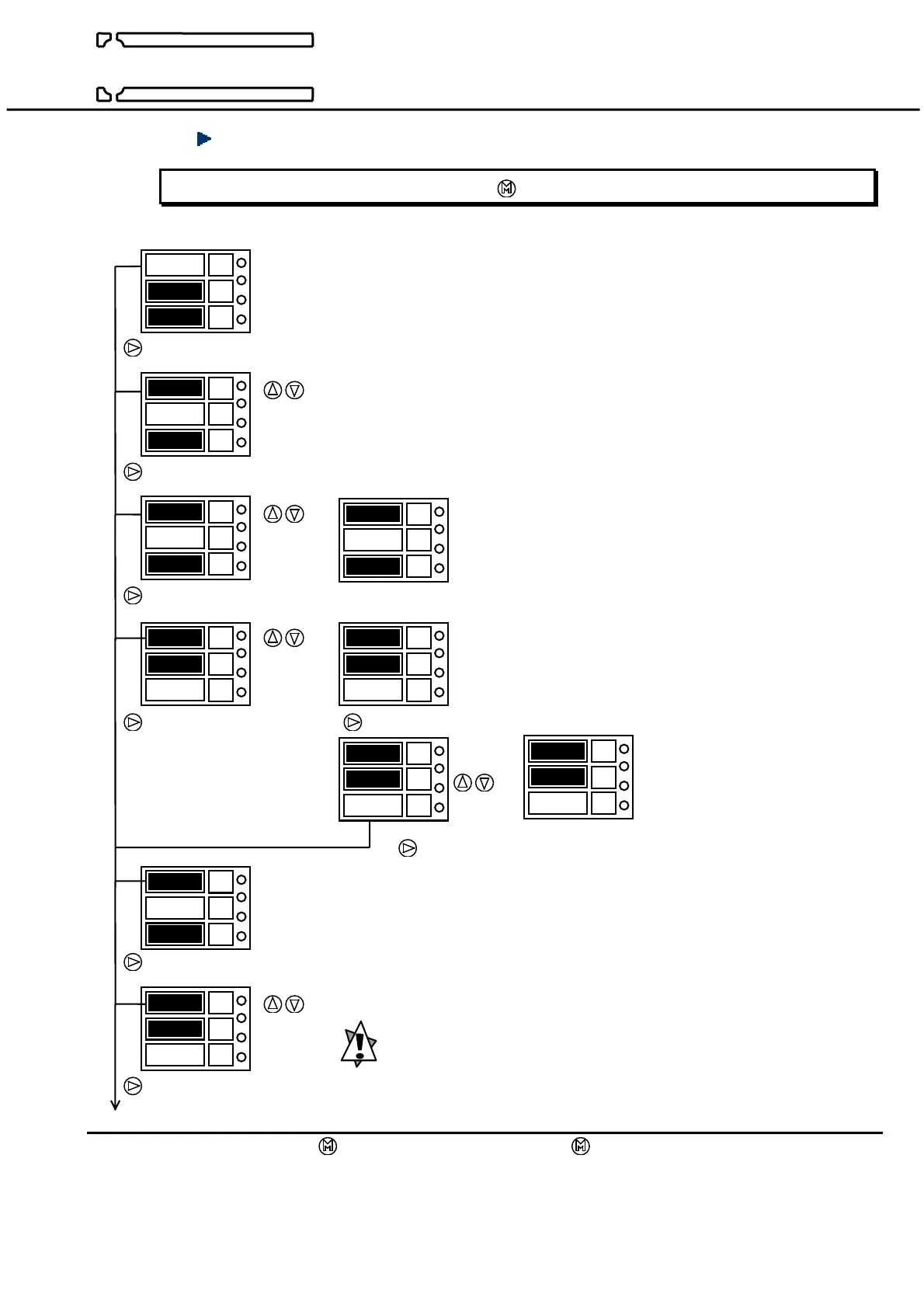

CONFIGURATION OF MEASURED NETWORK
Access from the measurement cycle :

 conF  codE=1.111  rES
Example : 3-phase unbalanced network with neutral, calibre 230V, CT ratio : 1500/5A , VT : 12KV/110V
Network type Nr 1 to 5


Network type choice : 1=single phase 2=3-phase balanced
3=3-phase unbalanced without neutral (3 wires) without current leak
4=3-phase unbalanced with neutral (4 wires)
5=3-phase unbalanced without neutral (3 w.), leak current measurement


Choice of current sense : receiving or generating
load of current (it modifies the P & Q sign).


Power factor (cosinus)
electric « YES » or mathematical « no ».
See the explains page 15 and 31
 
COS analog output

adjusted on +/-1 or 0
(details page 31)

Voltage calibre


Choice of the voltage calibre : 2 calibres : 500V or 150V
CAUTION : simple voltage calibre for the network Nr 4
mesh voltage calibre for the network Nr 2,3 and 5.

See the next page

back to the main menu

back to the measurement.
rAP
n°
CAL
rES
n°4
SEnS
REC.
SEnS
g
En.
no
COS
ELEC.
YE
S
COS
ELEC.
rAP
n°
CAL
150U
CAL
Urn
-1.1
COS
Sor.
0
COS
Sor.
