ARDETEM PECA 30 - Single Phase Network Wiring; NETWORK Nr4

PECA 30 / 30E : wiring schema
45
ARDETEM

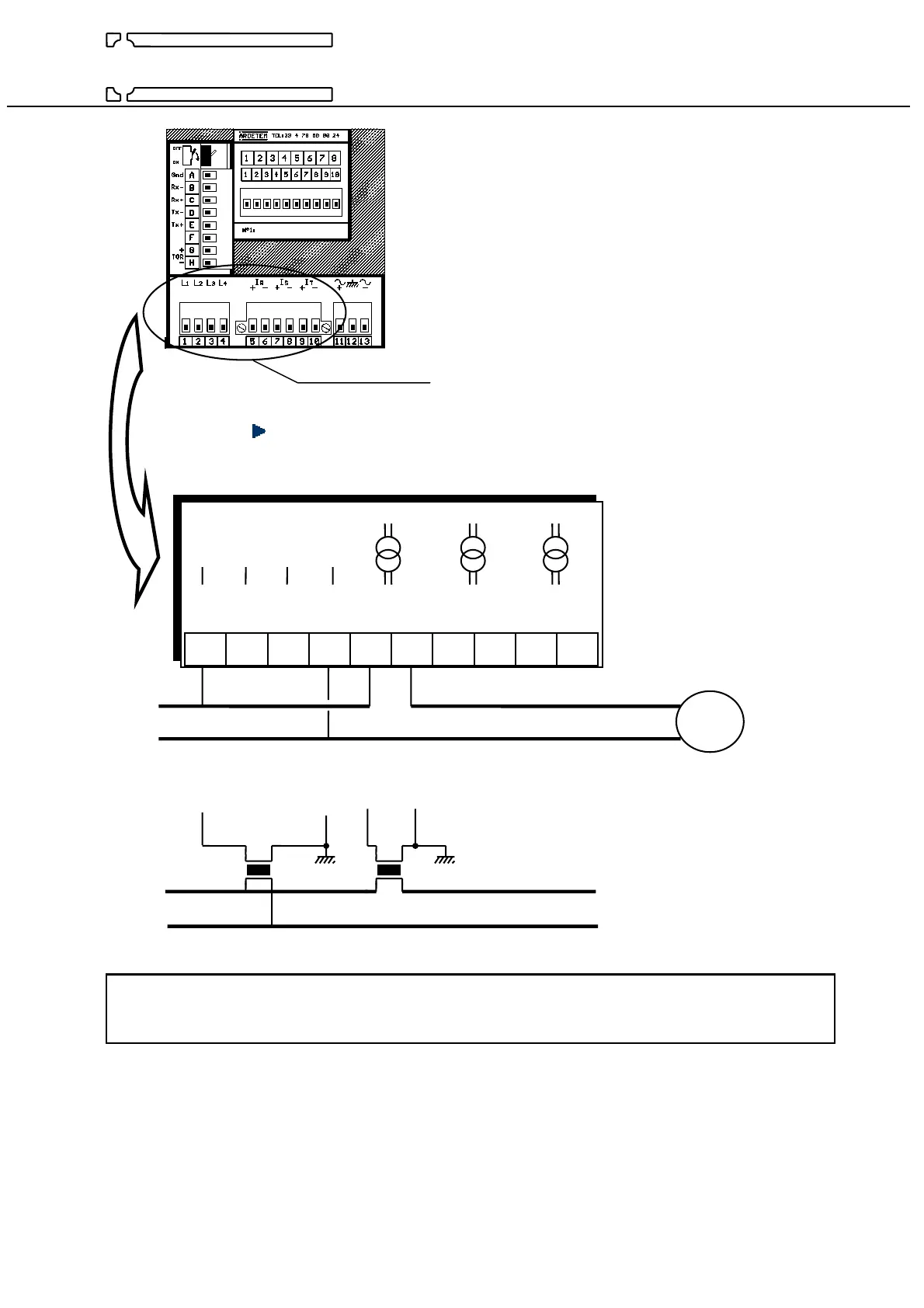

SINGLE PHASE NETWORK WIRING : NETWORK Nr 1
PECA
programmable 150V or 500V
- To choose at the order :
the internal CT : 1A or 5A
L1 L2 L3 L4 IR IS IT
+ - + - + -
1 2 3 4 5 6 7 8 9 10
Phase
load
Neutre
With external CT and VT :
Phase
Neutre
Note : Respect the wiring sense : to P1 corresponds S1 and to P2 corresponds S2.
Wire the secondary S2 of CT to the ground.
S1
P1 P2
TP
S1
P1 P2
TC
1 4 5 6
Input : Measured network
- voltage calibre,
programmable 150V or 500V
- internal CT : 1A or 5A
to choose at the order
