ARDETEM PECA 30 - Expansion Boards Wiring

PECA 30 / 30E : wiring schema
52
ARDETEM
Expansion boards

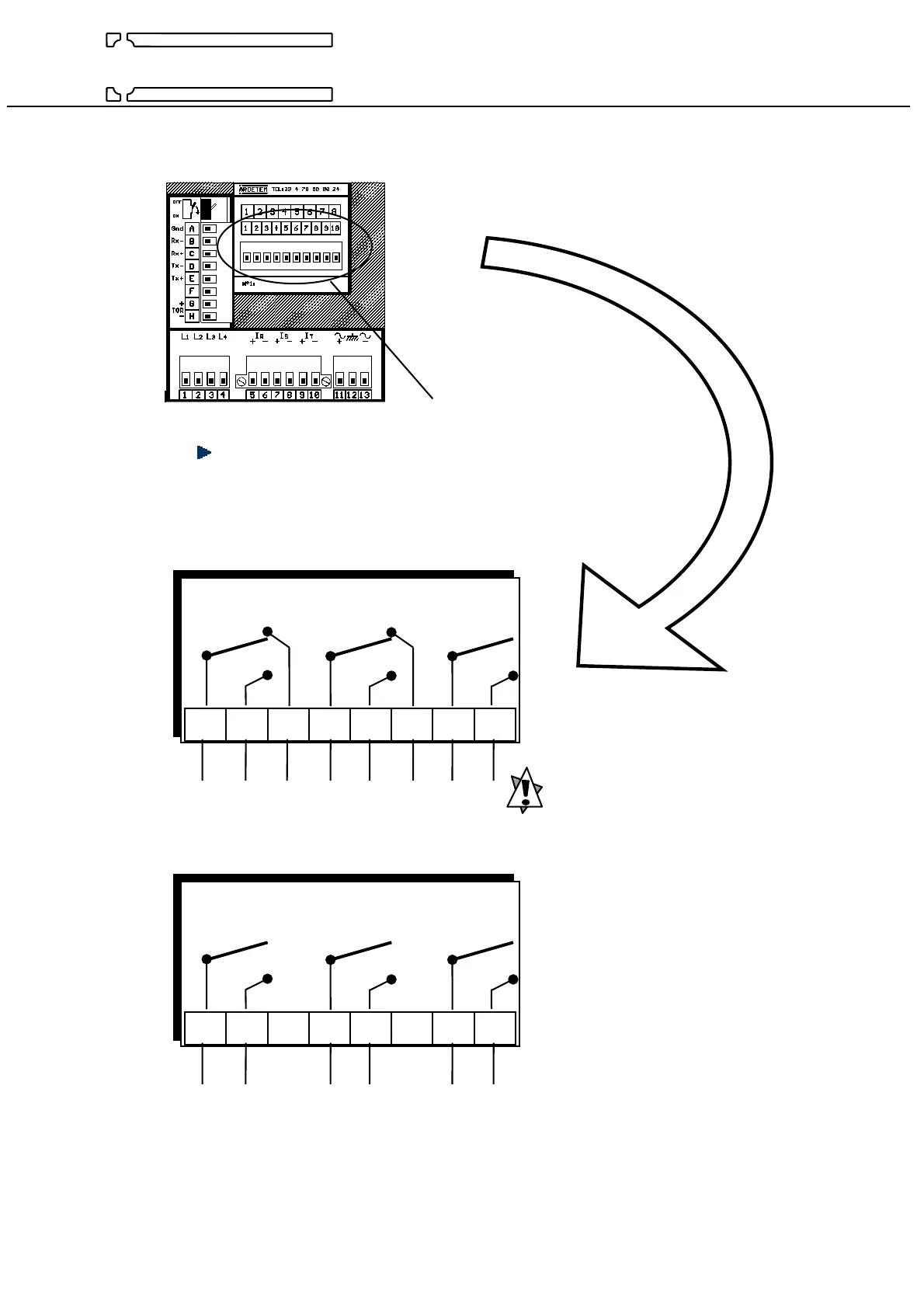

EXPANSION BOARDS WIRING :
For the PECA analyser, we have an expansion board choice among the following list :
• Board of 3 threshold relay outputs
PECA
1 2 3 4 5 6 7 8
C1 T1 R1 C2 T2 R2 C3 T3 Relays 5A - 250V AC
 Boards of 3 pulse outputs (relay contacts)
PECA
1 2 3 4 5 6 7 8
output 1 output 2 output 3
