PECA 30 / 30E : wiring schema
53
ARDETEM

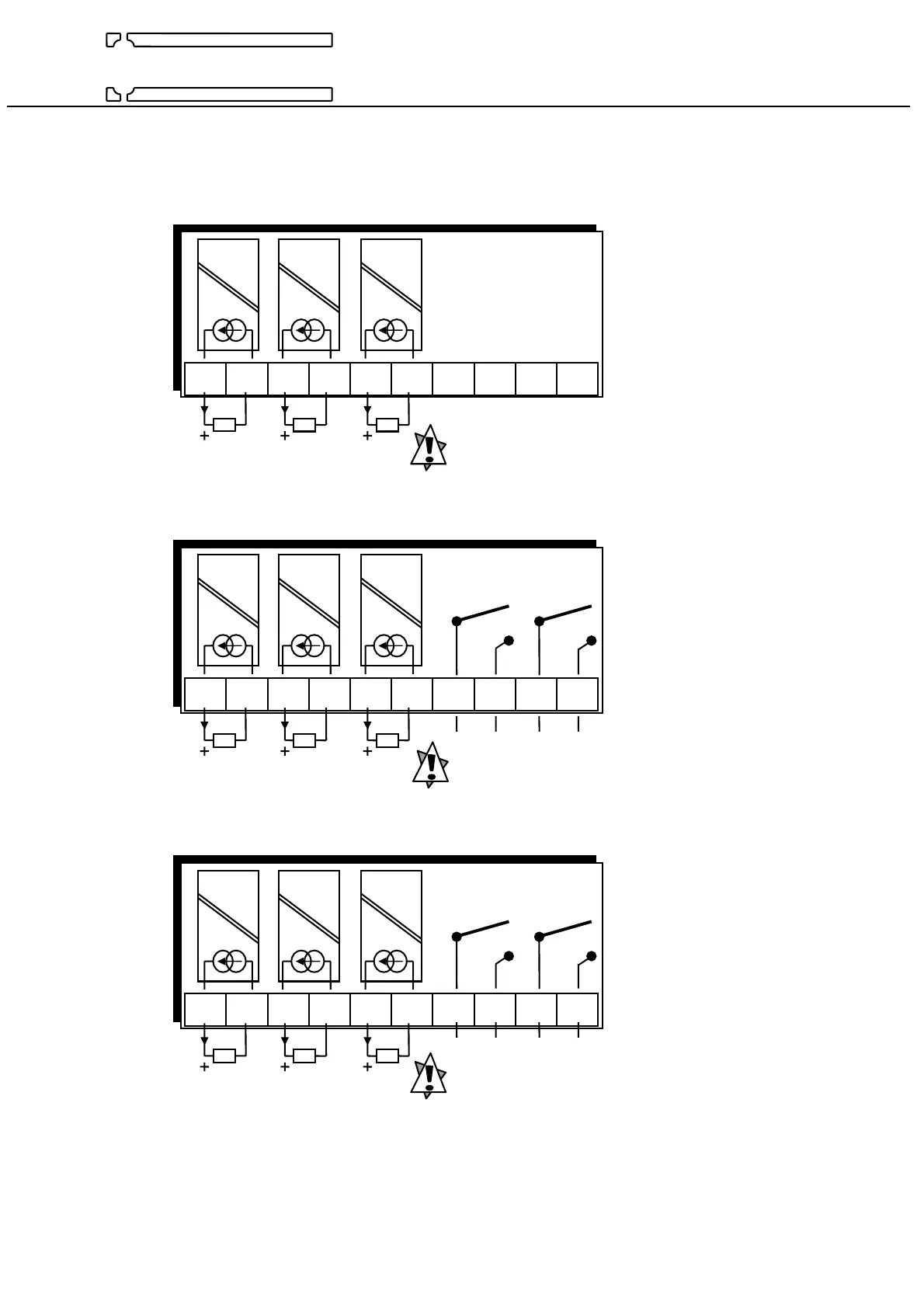

 Board of 3 current outputs (scale between -20 and +20mA)
PECA
1 2 3 4 5 6 7 8 9 10
I1 I2 I3
Load with or without common point Rc < 600Ω (20 mA)
 Board of 3 current outputs + 2 threshold relay outputs
PECA
1 2 3 4 5 6 7 8 9 10
I1 I2 I3 sortie1 sortie2
Load with or without common point Rc < 600Ω (20mA) Relay 2A - 125V Ac
 Board of 3 current outputs + 2 pulse outputs (relay contact)
PECA
1 2 3 4 5 6 7 8 9 10
I1 I2 I3 sortie1 sortie2
Load with or without common point Rc < 600Ω (20 mA)
