Argo ALICE 13 - Display Board Layout; Display Board Views

Service Manual
Technical Information
18

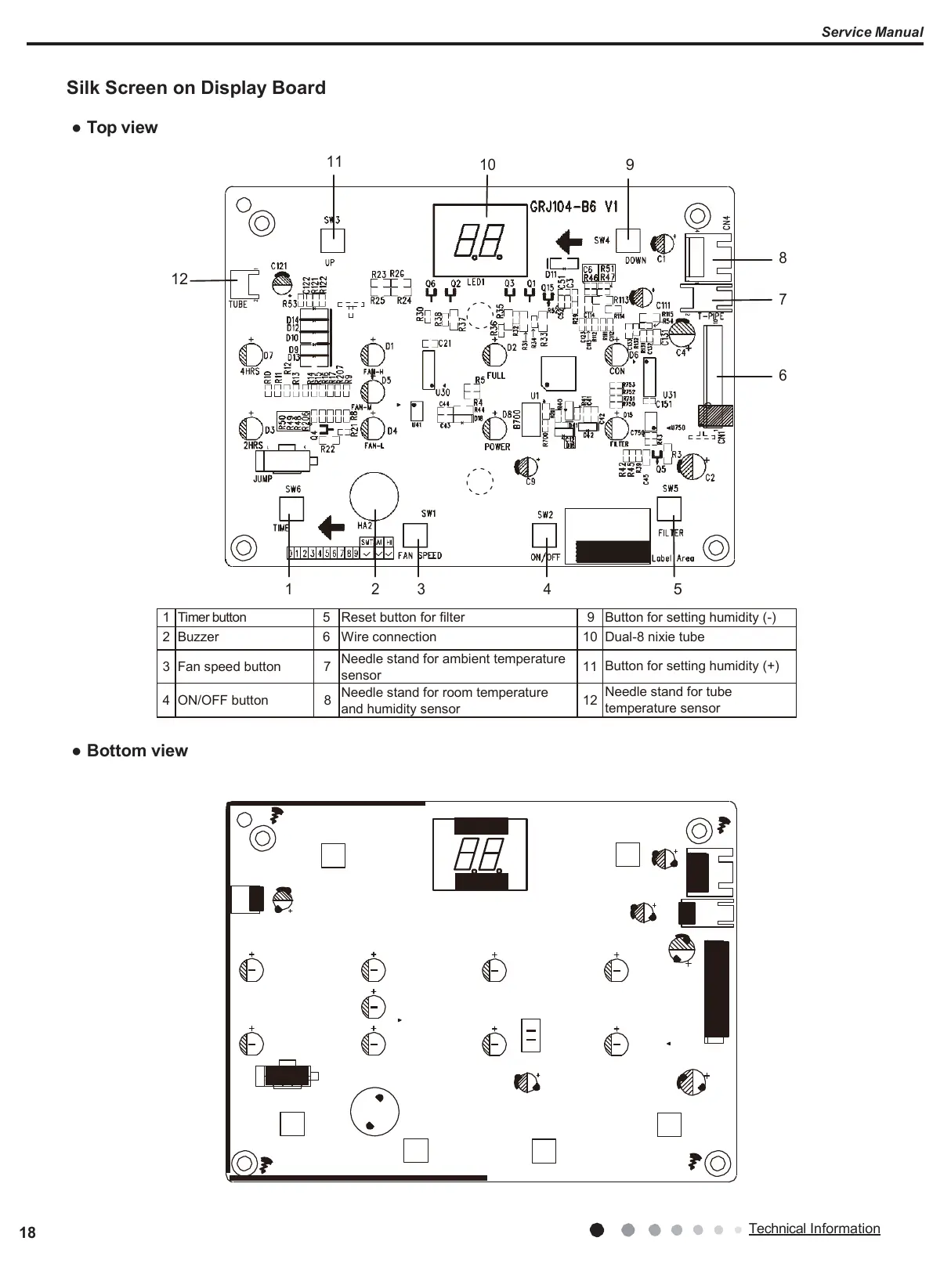

Silk Screen on Display Board
● Top view
11
10 9
8
12
7
6
1 2 3 4 5
1
Timer button
5
Reset button for filter
9
Button for setting humidity (-)
2
Buzzer
6
Wire connection
10
Dual-8 nixie tube
3
Fan speed button
7
Needle stand for ambient temperature
sensor
11
Button for setting humidity (+)
4
ON/OFF button
8
Needle stand for room temperature
and humidity sensor
12
Needle stand for tube
temperature sensor
● Bottom view
