Service Manual
Maintenance
30

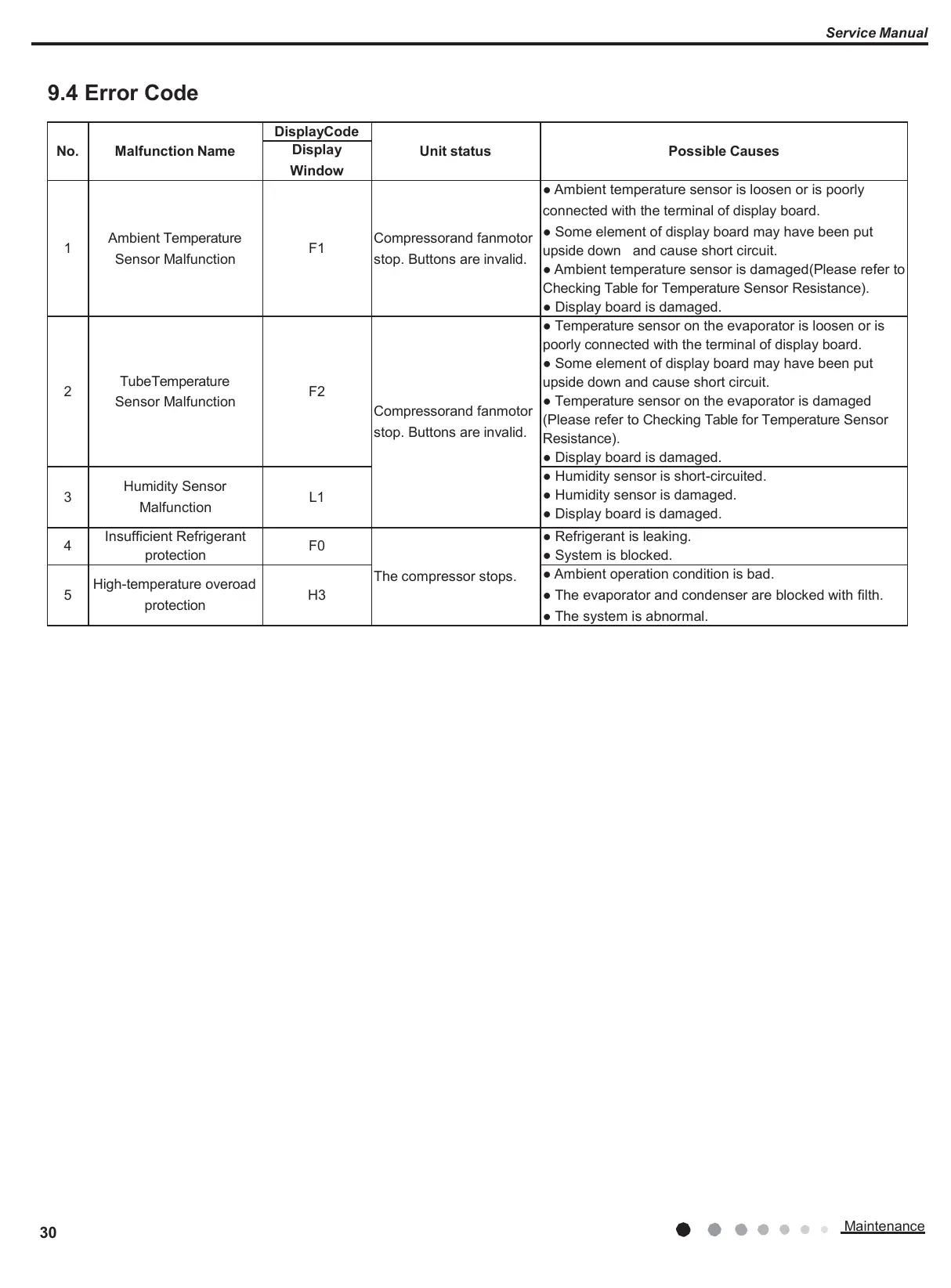

9.4 Error Code
No.
Malfunction Name
DisplayCode
Unit status
Possible Causes
Display
Window
1
Ambient Temperature
Sensor Malfunction
F1
Compressorand fanmotor
stop. Buttons are invalid.
● Ambient temperature sensor is loosen or is poorly
connected with the terminal of display board.
● Some element of display board may have been put
upside down and cause short circuit.
● Ambient temperature sensor is damaged(Please refer to
Checking Table for Temperature Sensor Resistance).
● Display board is damaged.
2
TubeTemperature
Sensor Malfunction
F2
Compressorand fanmotor
stop. Buttons are invalid.
● Temperature sensor on the evaporator is loosen or is
poorly connected with the terminal of display board.
● Some element of display board may have been put
upside down and cause short circuit.
● Temperature sensor on the evaporator is damaged
(Please refer to Checking Table for Temperature Sensor
Resistance).
● Display board is damaged.
3
Humidity Sensor
Malfunction
L1
● Humidity sensor is short-circuited.
● Humidity sensor is damaged.
● Display board is damaged.
4
Insufficient Refrigerant
protection
F0
The compressor stops.
● Refrigerant is leaking.
● System is blocked.
5
High-temperature overoad
protection
H3
● Ambient operation condition is bad.
● The evaporator and condenser are blocked with filth.
● The system is abnormal.

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
