Service Manual
Maintenance
42

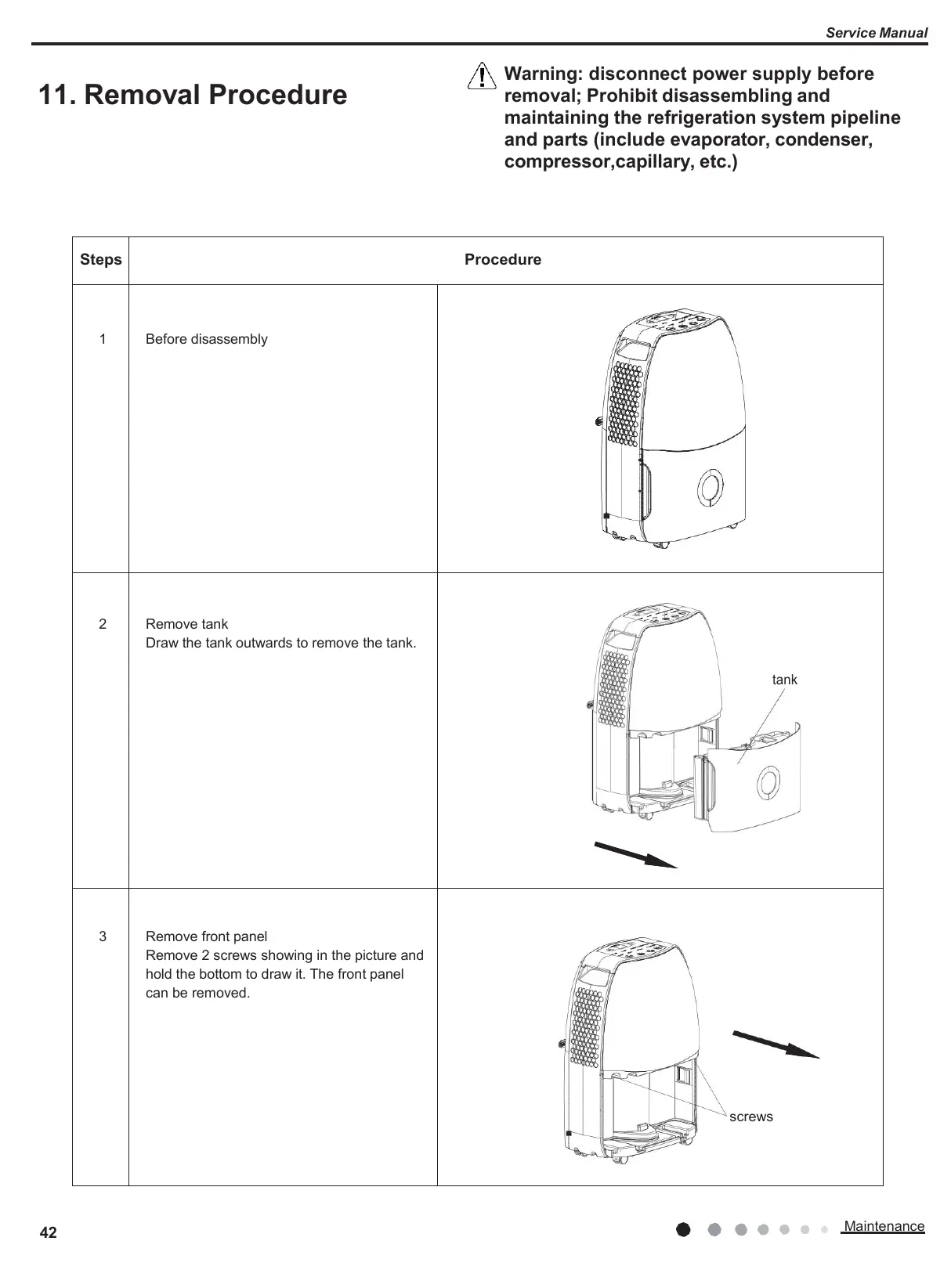

11. Removal Procedure
Warning: disconnect power supply before
removal; Prohibit disassembling and
maintaining the refrigeration system pipeline
and parts (include evaporator, condenser,
compressor,capillary, etc.)
Steps
Procedure
1
Before disassembly
2
Remove tank
Draw the tank outwards to remove the tank.
tank
3
Remove front panel
Remove 2 screws showing in the picture and
hold the bottom to draw it. The front panel
can be removed.
screws
