Argo ALICE 13 User Manual

Service Manual
Maintenance
32

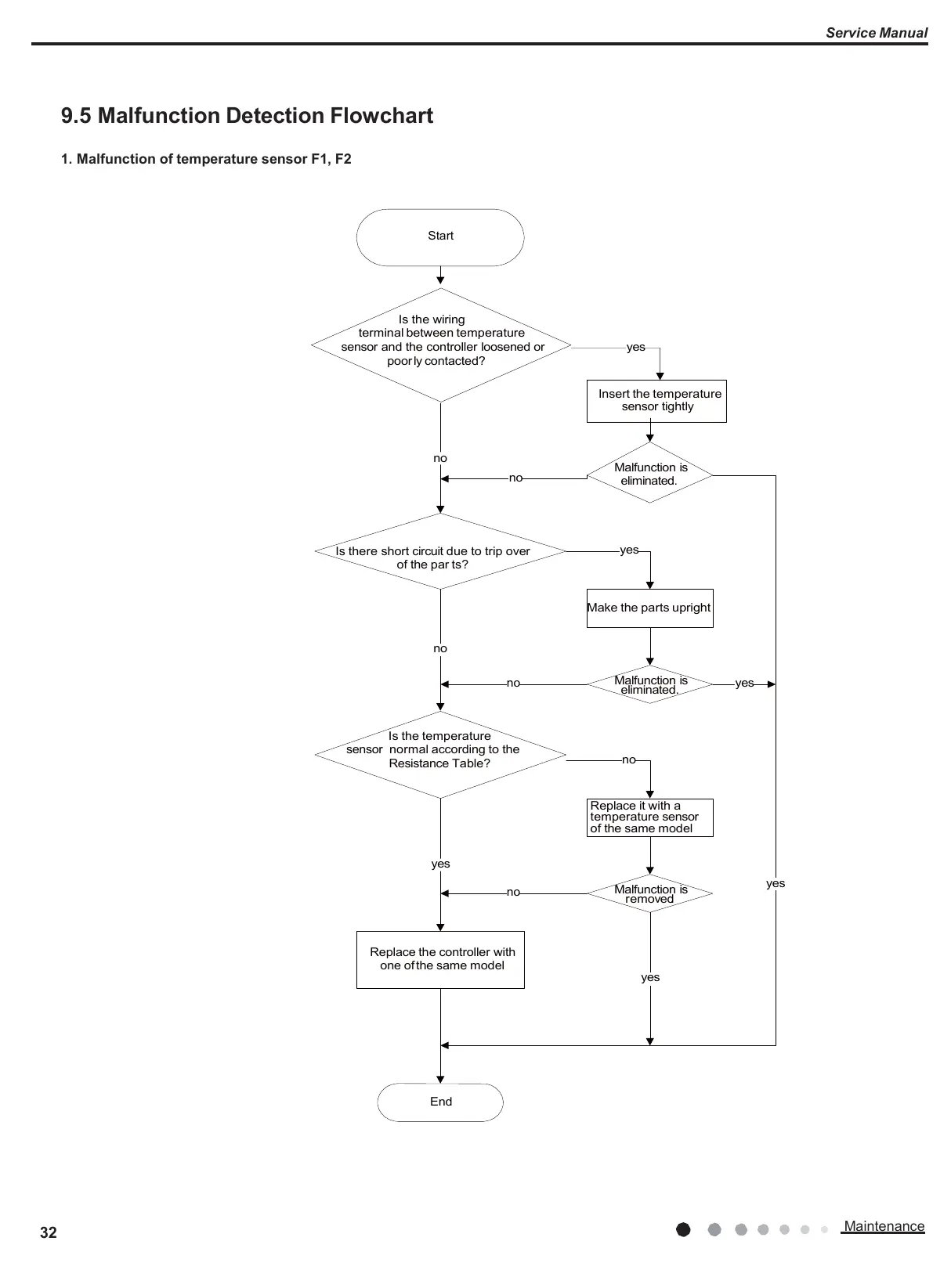

9.5 Malfunction Detection Flowchart
1. Malfunction of temperature sensor F1, F2
Insert the temperature
sensor tightly
Make the parts upright
Replace it with a
temperature sensor
of the same model
Replace the controller with
one of the same model
Start
Is the wiring
terminal between temperature
sensor and the controller loosened or
poor ly contacted?
yes
no
no
Malfunction is
eliminated.
Is there short circuit due to trip over
of the par ts?
yes
no
no
Malfunction is
eliminated.
yes
Is the temperature
sensor normal according to the
Resistance Table?
no
yes
yes
no
Malfunction is
removed.
yes
End

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
