Argo ALICE 13 User Manual

Service Manual
Technical Information
19

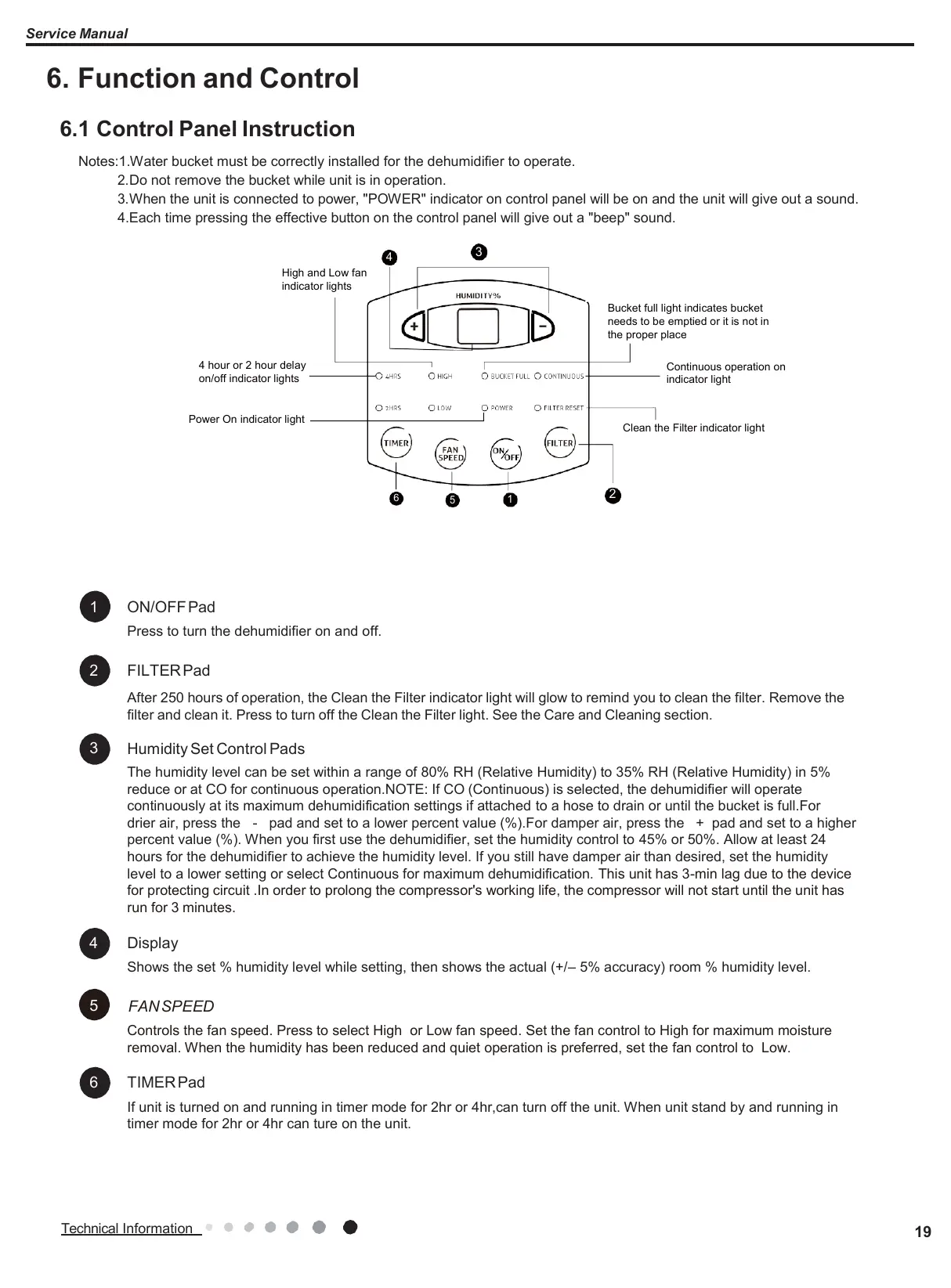

6. Function and Control
6.1 Control Panel Instruction
Notes:1.Water bucket must be correctly installed for the dehumidifier to operate.
2. Do not remove the bucket while unit is in operation.
3. When the unit is connected to power, "POWER" indicator on control panel will be on and the unit will give out a sound.
4.Each time pressing the effective button on the control panel will give out a "beep" sound.
4
3
High and Low fan
indicator lights
4 hour or 2 hour delay
on/off indicator lights
Bucket full light indicates bucket
needs to be emptied or it is not in
the proper place
Continuous operation on
indicator light
Power On indicator light
Clean the Filter indicator light
6
5
1
2
ON/OFF Pad
Press to turn the dehumidifier on and off.
FILTER Pad
After 250 hours of operation, the Clean the Filter indicator light will glow to remind you to clean the filter. Remove the
filter and clean it. Press to turn off the Clean the Filter light. See the Care and Cleaning section.
Humidity Set Control Pads
The humidity level can be set within a range of 80% RH (Relative Humidity) to 35% RH (Relative Humidity) in 5%
reduce or at CO for continuous operation.NOTE: If CO (Continuous) is selected, the dehumidifier will operate
continuously at its maximum dehumidification settings if attached to a hose to drain or until the bucket is full.For
drier air, press the - pad and set to a lower percent value (%).For damper air, press the + pad and set to a higher
percent value (%). When you first use the dehumidifier, set the humidity control to 45% or 50%. Allow at least 24
hours for the dehumidifier to achieve the humidity level. If you still have damper air than desired, set the humidity
level to a lower setting or select Continuous for maximum dehumidification. This unit has 3-min lag due to the device
for protecting circuit .In order to prolong the compressor's working life, the compressor will not start until the unit has
run for 3 minutes.
Display
Shows the set % humidity level while setting, then shows the actual (+/– 5% accuracy) room % humidity level.
FAN SPEED
Controls the fan speed. Press to select High or Low fan speed. Set the fan control to High for maximum moisture
removal. When the humidity has been reduced and quiet operation is preferred, set the fan control to Low.
TIMER Pad
If unit is turned on and running in timer mode for 2hr or 4hr,can turn off the unit. When unit stand by and running in
timer mode for 2hr or 4hr can ture on the unit.
5
4
3
2
1
6

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
