Argo ALICE 13 User Manual

Service Manual
Technical Information

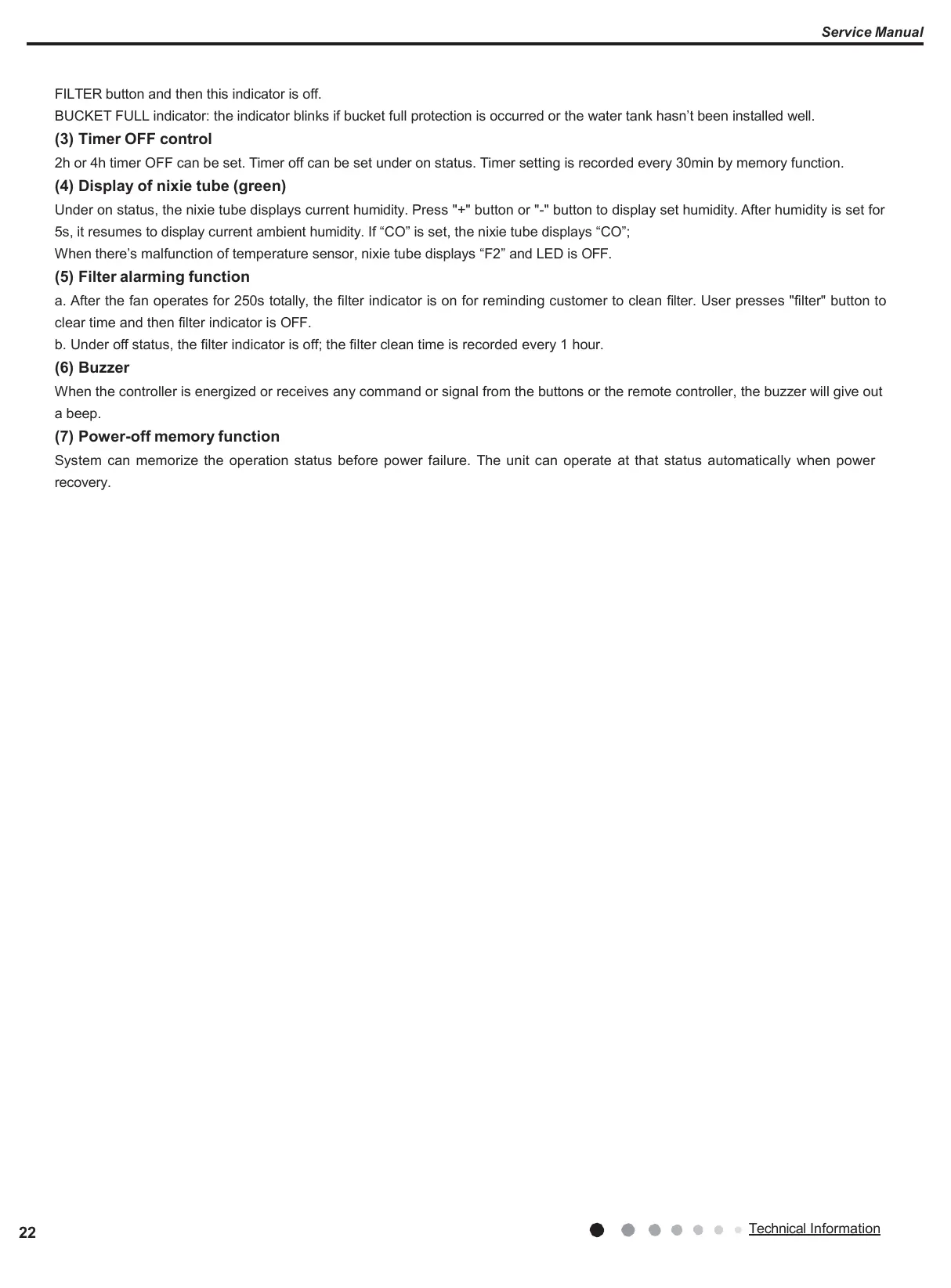

22
FILTER button and then this indicator is off.
BUCKET FULL indicator: the indicator blinks if bucket full protection is occurred or the water tank hasn’t been installed well.
(3) Timer OFF control
2h or 4h timer OFF can be set. Timer off can be set under on status. Timer setting is recorded every 30min by memory function.
(4) Display of nixie tube (green)
Under on status, the nixie tube displays current humidity. Press "+" button or "-" button to display set humidity. After humidity is set for
5s, it resumes to display current ambient humidity. If “CO” is set, the nixie tube displays “CO”;
When there’s malfunction of temperature sensor, nixie tube displays “F2” and LED is OFF.
(5) Filter alarming function
a. After the fan operates for 250s totally, the filter indicator is on for reminding customer to clean filter. User presses "filter" button to
clear time and then filter indicator is OFF.
b. Under off status, the filter indicator is off; the filter clean time is recorded every 1 hour.
(6) Buzzer
When the controller is energized or receives any command or signal from the buttons or the remote controller, the buzzer will give out
a beep.
(7) Power-off memory function
System can memorize the operation status before power failure. The unit can operate at that status automatically when power
recovery.

Argo ALICE 13 Specifications

General

Airflow	115 m³/h
Display	LED
Noise level	43 dB
Product color	White
Built-in display	Yes
Water tank capacity	3 L
Suitable for room area up to	15 m²
Suitable for room volume up to	- m³
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	220 W
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	35 - 80 %

Weight and Dimensions

Depth	225 mm
Width	353 mm
Height	496 mm
Weight	11500 g
