12
E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
5.2 Frameset SKUs and Descriptions

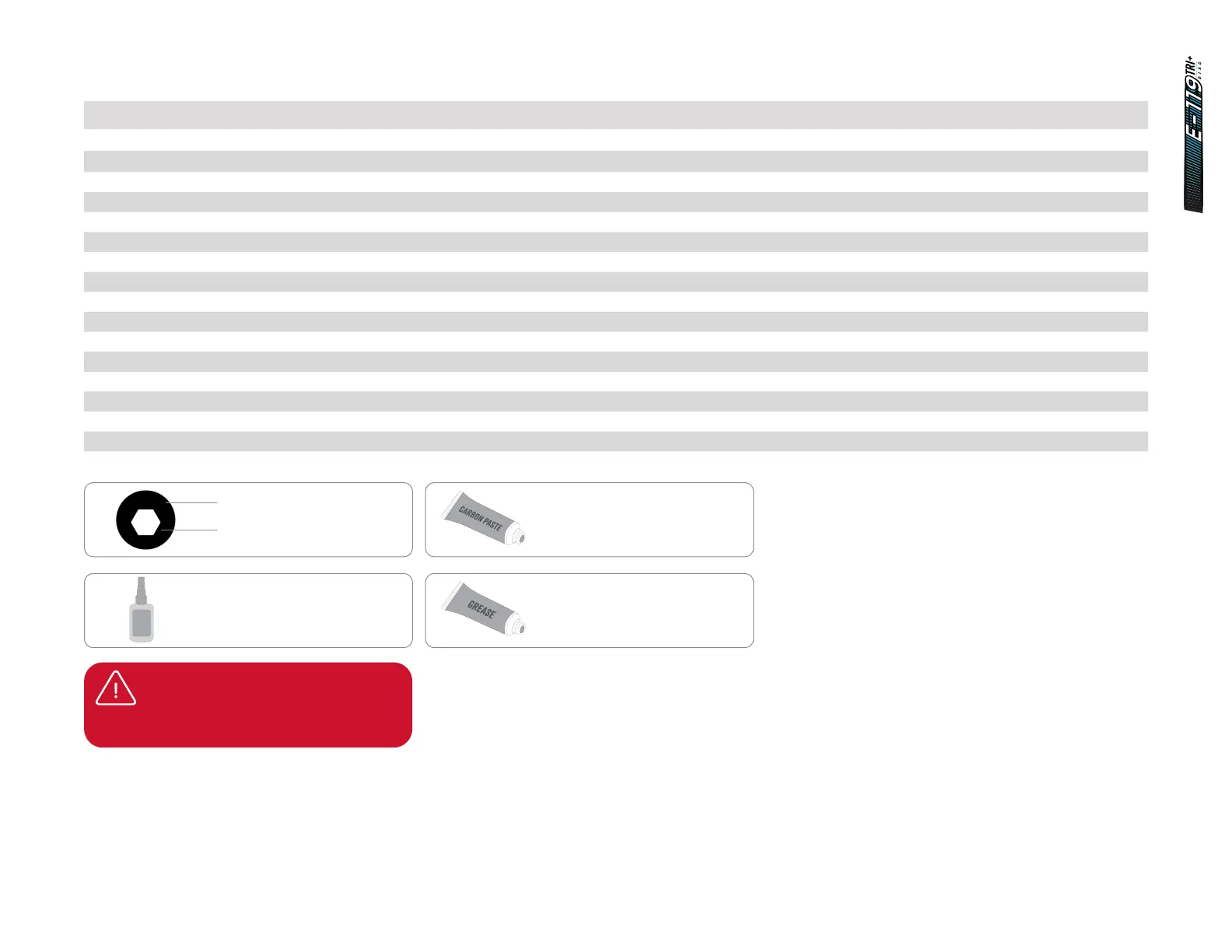

IMPORTANT:
Indicates special precautions and
important steps that must be taken to
avoid damage and/or injury.
Apply carbon paste on the
indicated surfaces.
Apply grease on the
indicated surfaces.
Apply threadlocker on the
indicated surfaces.
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
Torque Value
Allen key size
No. Name A18 SKU# Qty
63 DT Swiss RWS thru axle REAR 12 x 161 mm w/ Handle 80813 1
64 3D Headset tool 36165 1
65 E-119 Disc Bento box 81558 1
66 E-119 Disc Bento box clamp 81559 1
67 E-119 Disc Tall Stem Cap 81560 1
68 E-119 Disc Stem Cap Rubber Plug 81561 2
69 E-119 Disc Socket Head Cap Screw M4 x 0.7 x 16 81562 3
70 Foam liner for hydraulic hose 80811 3
71 E-119 Disc Rear Caliper Assembly (TKD120-R) 81547 1
72 E-119 Disc TRP Bleed Screw 81548 2
73 E-119 Disc TRP Brake Pad Pin 81549 2
74 E-119 Disc 20mm Rear Flat mount Screw 81550 2
75 E-119 Disc Right Brake lever Assembly 81551 2
76 E-119 Disc Lever wedge set with screw 81553 2
77 E-119 Disc Front Caliper Assembly (TKD120-F) 81555 1
78 E-119 Disc 27mm Front Flat mount Screw 81556 2
