E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
12.2 frame routing – Mechanical

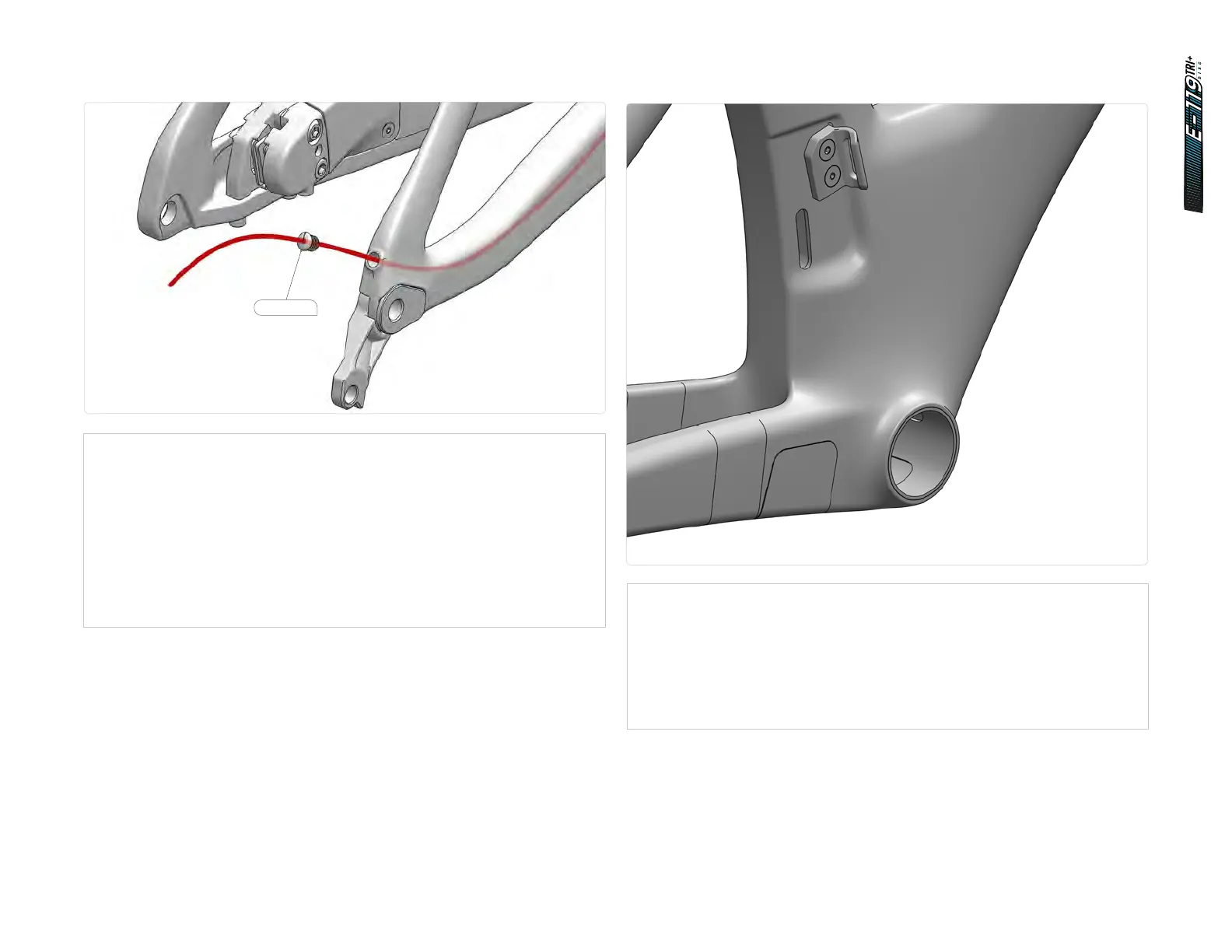

Rear derailleur:
1. Insert the rear derailleur housing into the rear hole on the drive side seatstay.
(Prekink the housing to ease the routing under the BB sleeve)
2. Guide the rear derailleur housing under the BB sleeve until it comes out from
the bento box opening on the top tube.
3. Insert the long grommet mechanical (SKU: 80985) into the hole on
the seatstay.
80985
Front derailleur with full housing:
1. Insert the front derailleur housing into the hole on the drive side of the seat
tube. (Prekink the hausing to ease the routing under the BB sleeve.)
2. Guide the front derailleur housing under the BB sleeve until it comes out from
the bento box opening on the top tube.
