Argon 18 E-119 TRI+ - 6. SEAT POST ASSEMBLY; 6.1 SEAT POST ASSEMBLY

13

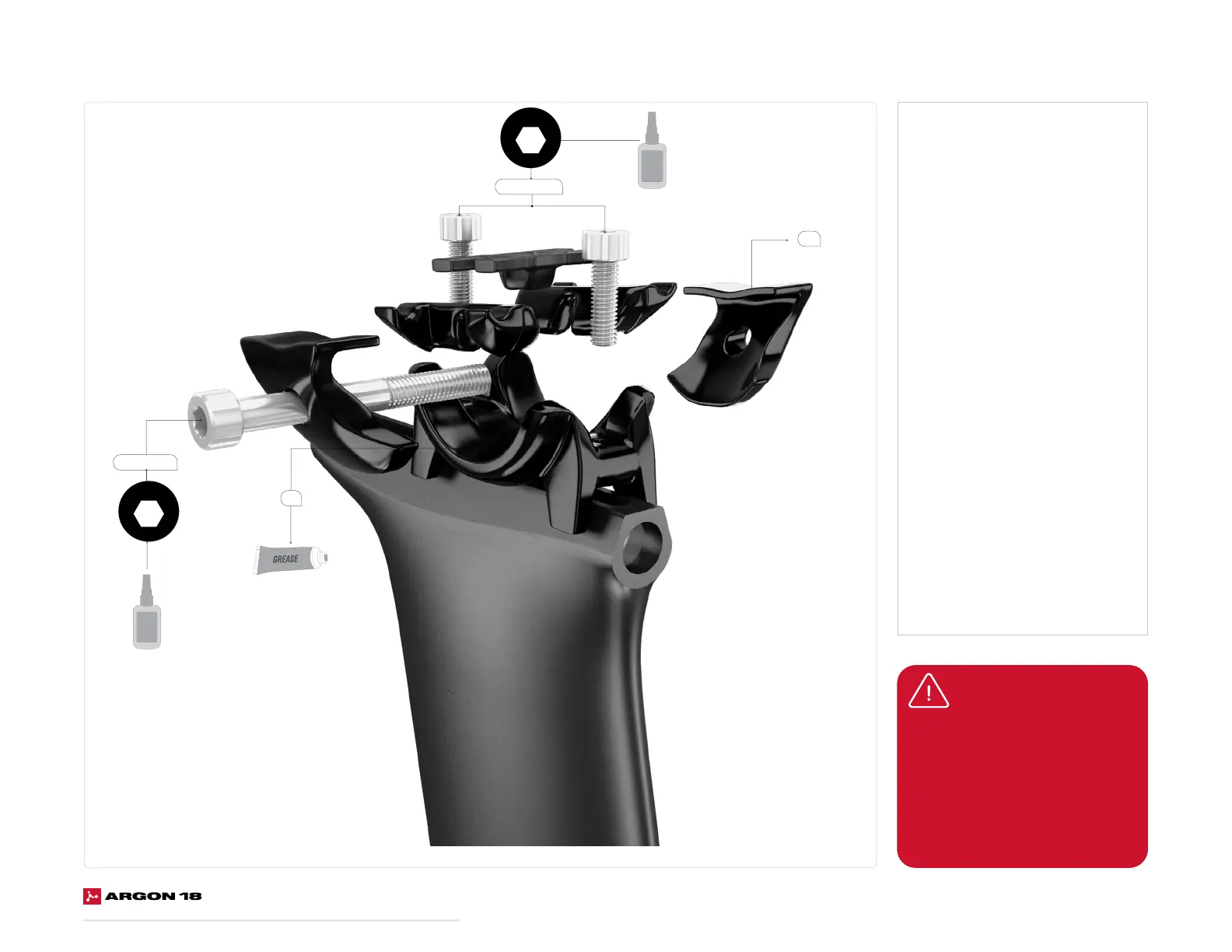

6.1 Seat Post Assembly
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
The seat post comes fully assembled.
1. Loosen the two M5 x 16mm screw
to allow the seat post head
assembly
to slide.
2. Apply a drop of blue threadlocker
(no. 242) to the M5 x 16 mm
screw thread.
3. Position the seat post head at the
desired position and tighten the
two
M5 x 16 mm screws to 6 Nm.
4. Unscrew the M6 x 55 mm as far
as possible without fully removing
from the lock nut (A).
5. Apply a drop of blue threadlocker
(no. 242) to the M6 x 55 mm screw
thread.
6. Apply Carbon paste to the curved
face of the lower part (B)
7. Set the saddle rails into the
seatpost clamp.
8. Adjust the angle of the saddle
and tighten the M6 x 55 mm
screw to 12 Nm.
M5 x 16mm
4
6Nm
2.5
1Nm
4
5.5Nm
4
7Nm
2
HT-1/4
5
12Nm
2
2Nm
3
3Nm
4
3Nm
8
35Nm
2.5
HT
3
HT
40Nm
4Nm
T25
T25
4
3Nm
10
HT
2.5
5
9Nm
2.5
HT-2
2.5
HT-5
2.5
2Nm
3
2.5
HTHT
3
4Nm
3
2Nm
6
10Nm
2.5
HT
4Nm6Nm
8
B
M6 x 55mm
A
IMPORTANT:
The E-119 Tri Disc’s saddle
rail clamp is made for 7mm
round saddle rails (Ritchey
part number: 55055467004).
For other types of saddle rails,
select one of the following
Ritchey components:
41055467003 for 8 x 8.5 mm
saddle rails and 41055467002
for 7 x 9.6 mm saddle rails.
