E-119TRI+DISC 345A / 345B: ASSEMBLY GUIDE
8.2 Fork and headset assembly

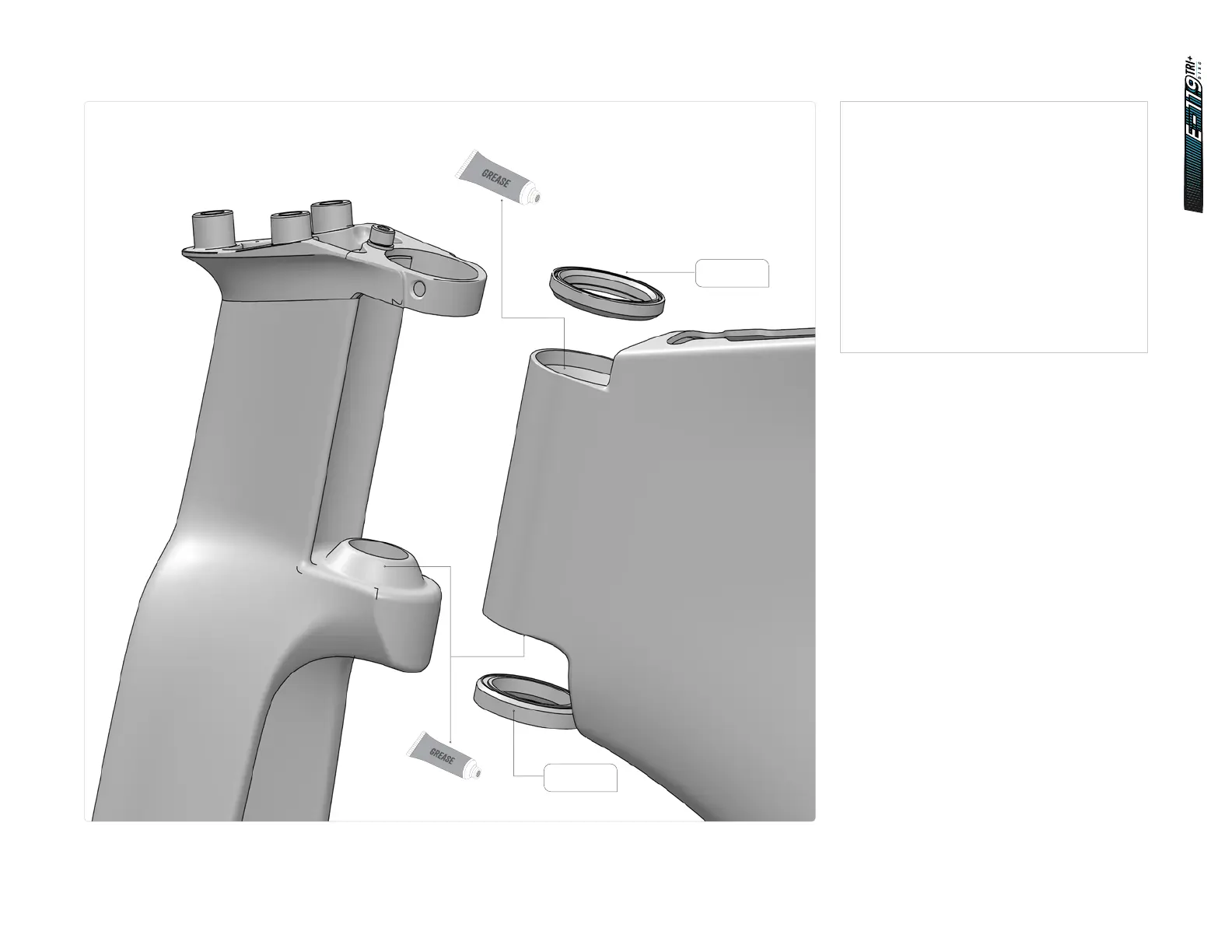

1. Apply grease inside the frame where the
top and bottom bearings will sit.
2. Install the top bearing: MR136-1 1/4”, 45° x
45° stainless steel (SKU: 80650).
3. Install the Bottom Bearing: MR122-1 1/8”,
36° x 45° (SKU: 38934).
4. Apply grease to the tapered part of
the fork.
5. Install the fork by moving the lower part
into place first, followed by the upper part.
38934
MR122 - 1 1/8''
80650
MR136 - 1 1/4''
