Ethernet 10/100 Internal Printer Server Option
This connector is for Ethernet application; it is convenient to use
several printers by Ethernet connector at the same time.
Ethernet Module Status Indicators
LED Status
Description
Both Off
No Ethernet link detected.
Blinking
The printer waits for printer ready.
It will take about 20 seconds to be ready.
Green
Speed LED
On: 100 Mbps link
Off: 10 Mbps link
Amber
Link/Activity LED
On: link up
Off: link down
Flash: activity

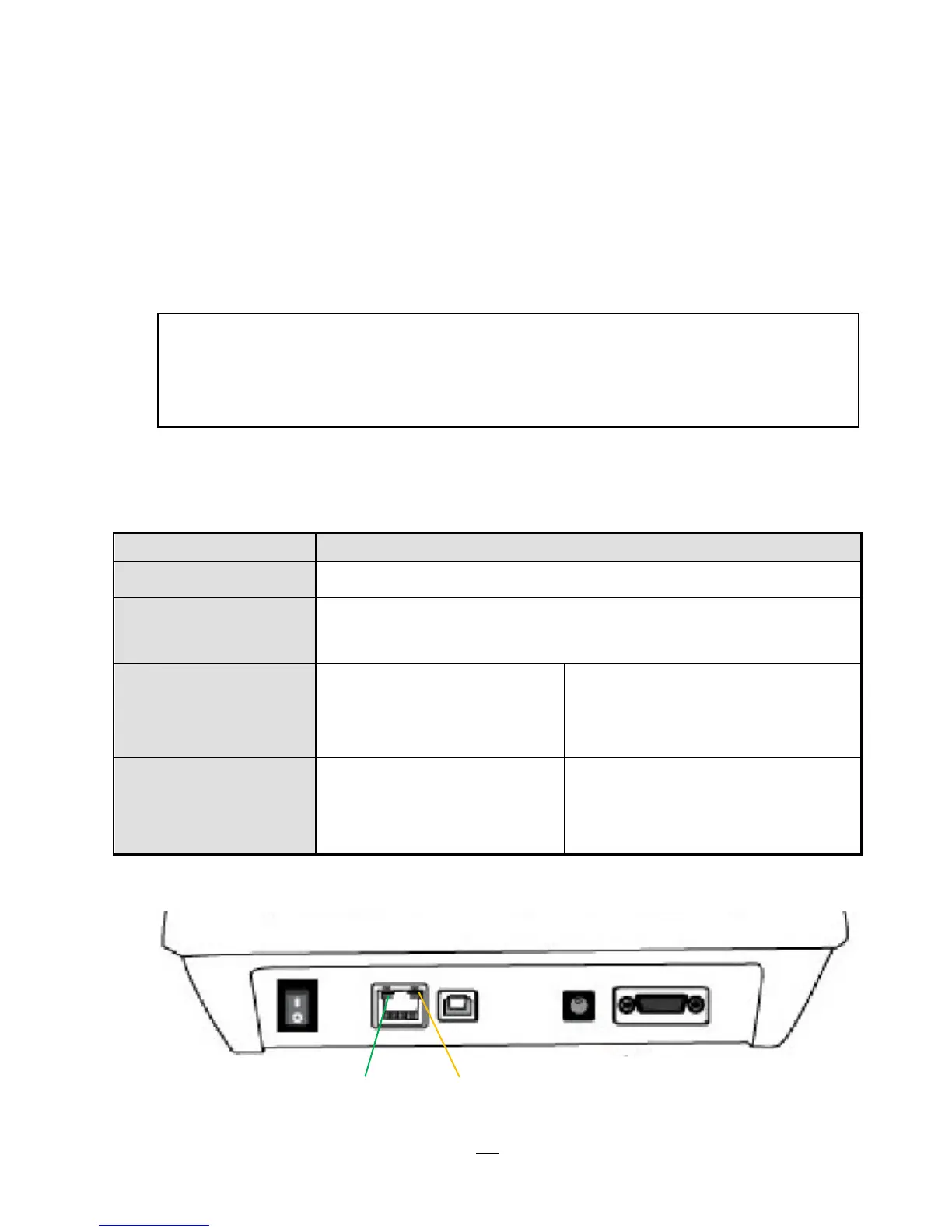

Ethernet LED Indicators:
Note:
When using Ethernet model printer, please wait till the Ready
Indicator to stop blinking, before starting printer operations.
Amber LED
Green LED
