Argus E25 MOD II - Wiring and Brake Connection; Circuit Diagram and Thermal Switch

Argus E25 MOD II - Operating Instructions
22
Undo the screws (2.19) and remove
the cover (2.6) carefully.
ATTENTION!
The
sealing surfaces between
body
and cover, and between
cover
and shaft are relevant for
flameproof
protection.
Damage
to these surfaces results
in
the loss of flameproof protec-
tion!
Undo the screws
(4.22) and remove the cover plate
(cable cover, (4.6)).

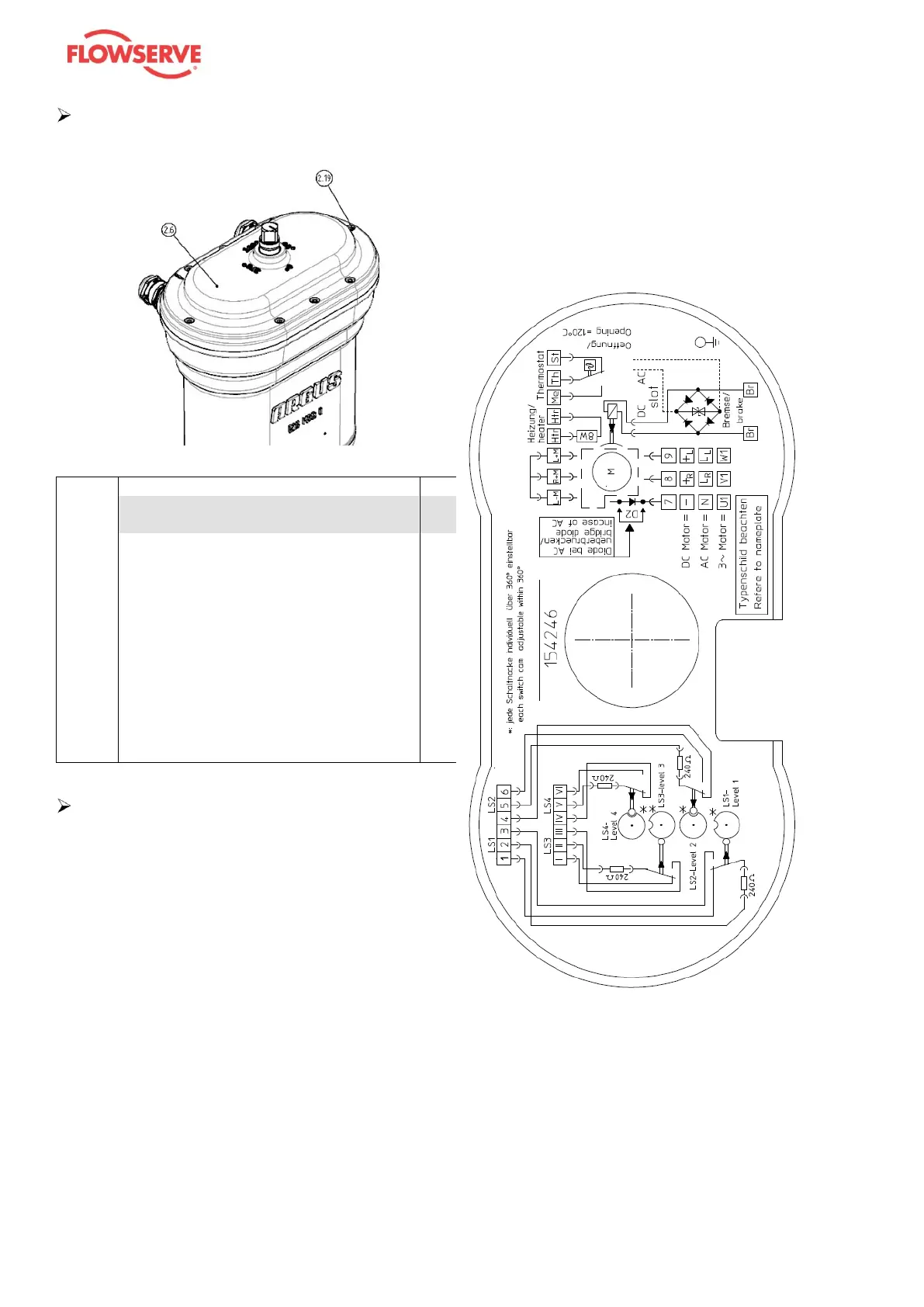

The figure on the cover plate (4.6) shows
the standard circuit diagram.
For any other wiring connections, please
contact the manufacturer.
.
The built-in thermal switch cuts out when
the temperature reaches 120°C.
