Aristel DV-38 - D1 Pwua (Power Board Unit)

S
y
stem Installation Manual
D
V
-38
D1PWUA (POWER BOARD UNIT)
Product: DV-38 POWER UNIT
Item: D1PWUA
Size: 270 mm x 95 mm
Function:
1. To supply entire system power.
2. The input AC Voltage ranges are AC110V~240V
1
5
3
4
8
6
7
2
3. Support 24V Battery Charger for external
Back-up Battery.
The installation site of
D1PWUA

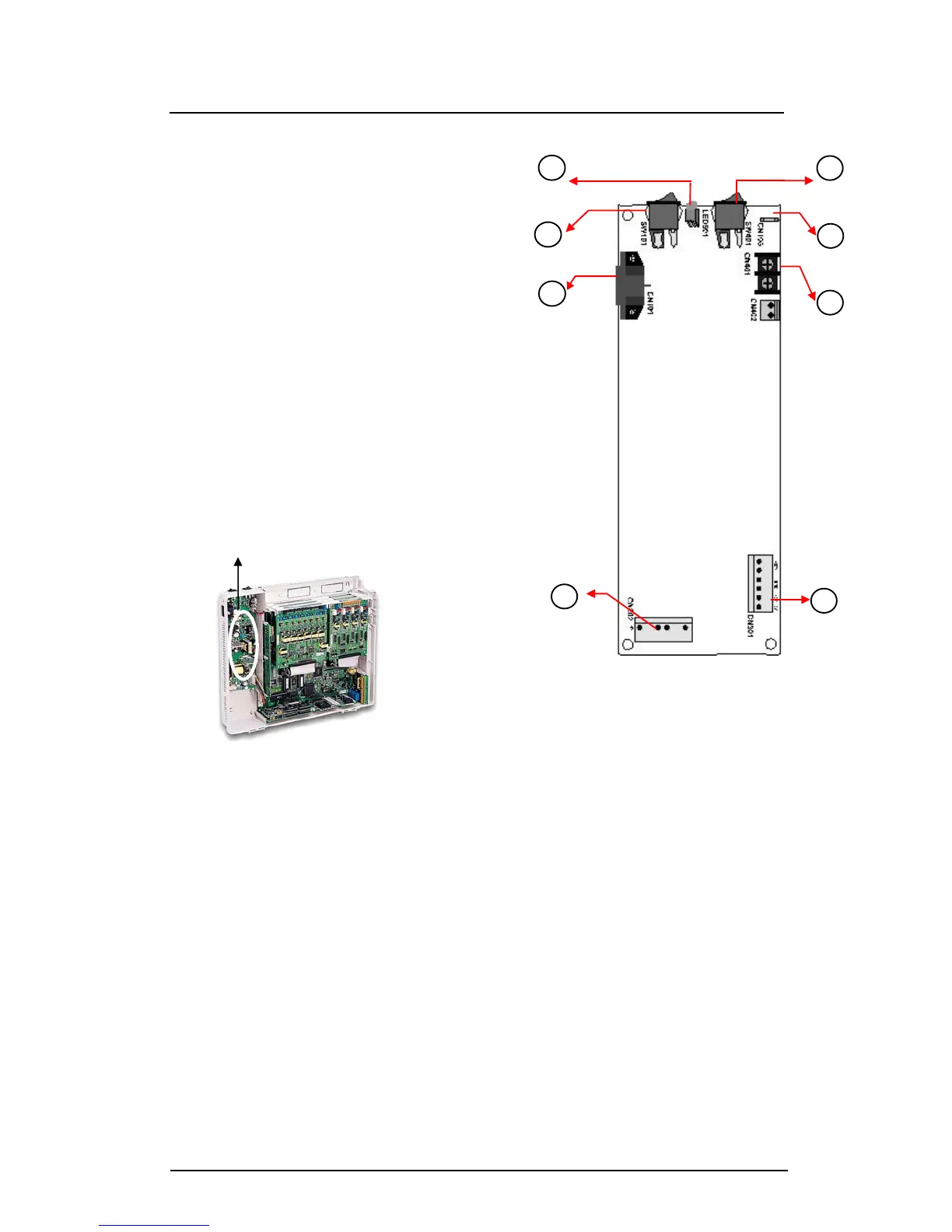

Figure 3. D1PWUA (POWER UNIT)
1. LED501: Power Indicator.
2. SW101: AC Power Switch.
3. CN101: AC Power Inlet.
4. CN802: 4 Pins Connector. (Reserved for further Applications)
5. SW401: External backup battery Power Switch.
6. CN105 : Earth Terminal for D1SLCB Grounding.
7. CN402: External Battery Connector; Left Side is (+), Right side is (-).
8. CN301 : 6 Pins Connector for D1MBUB connection.
18
Arista Systems Corporation
