Aristel DV-38 - D1 STUB (Analog Key Station Unit, 8 Key Station Ports)

D
V
-38
S
y
stem Installation Manual
D1STUB (Analog Key Station Unit, 8 Key Station ports)
Product: DV-38 ANALOG KEY STATION UNIT
Item: D1STUB
Size: 162 mm x 155 mm
Function:
1. Supports 8 ports of digital Key Phone interface.
2. Totally 3 pieces of D1STUB could be installed onto the DV-38 main frame (24
Extensions maximum).
3. D1STUB fully compatible with AV-Series Key Telephones. Ex: KP-10 Series ,
KP-20 Series or KP30 Series.
2

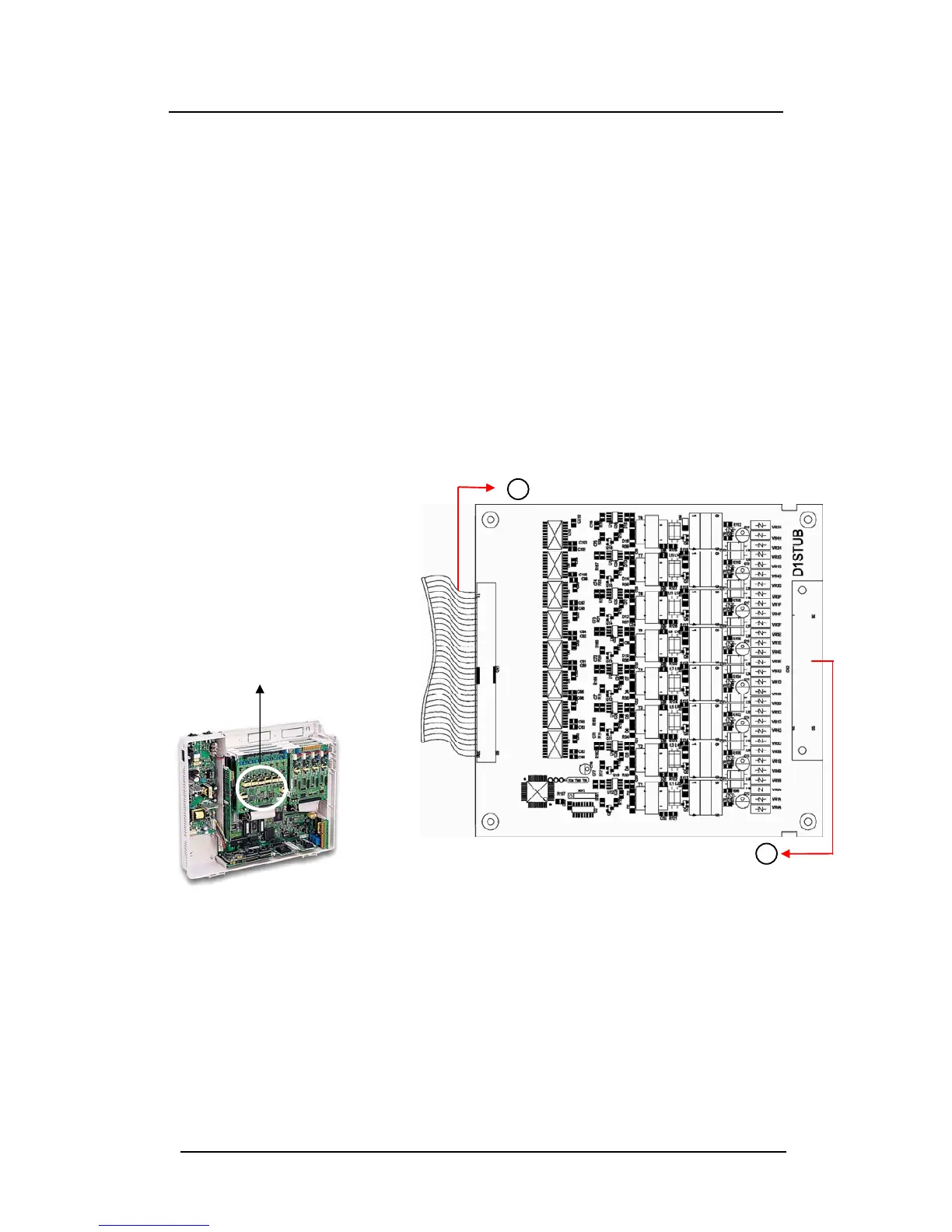

Figure 7. D1STUB (Analog Key Station Unit, 8 Key Station ports)
The installation site of
D1DLUB, D1STUB
1
1. CN1: 60-wires Rainbow Cable to connect to STA1~3 positions where upon the D1MBUB.
2. CN2: Am phenol Connector for analogue Key Station Wiring.
23
