D1CIDC and D1MDCA INSTALLATION
D1CIDC / D1MDCA
CH1A
CH1B
CH4B
CH4A
CH3B
CH3A
CH2B
CH2A
D1TKUC

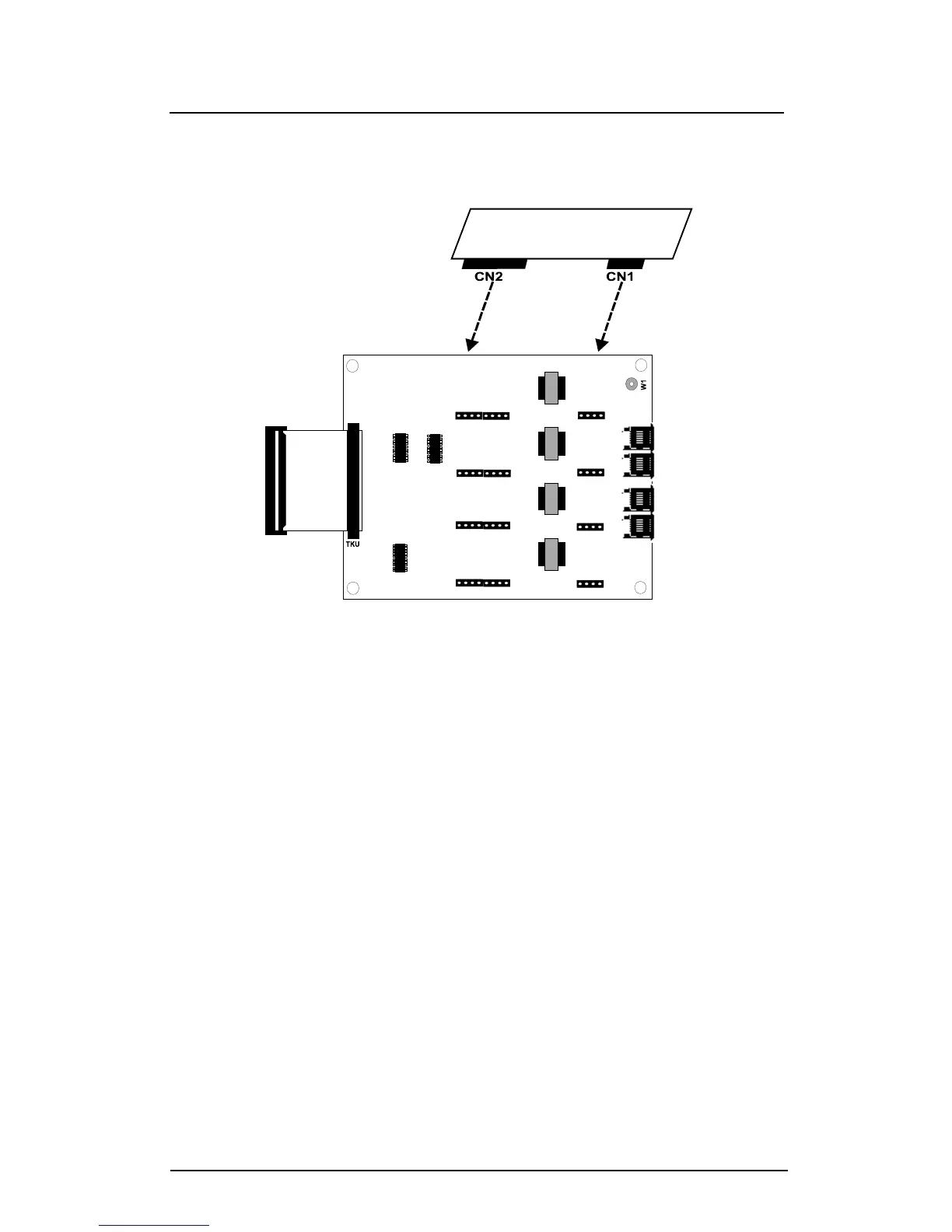

Figure 20. Metering Pulse Detection Card Installation
1. There is a maximum of 4 D1CIDC cards that can be installed in each D1TKUB, one card
for one CO Line.
2. The connection for the 1
st
, 2
nd,
3
rd
and 4
th
CO Lines are from （CH1A）+(CH1B)to（CH4A）
+(CH4B).
