Single Line Phone Wiring For D1SLCB
Single Line Telephone
Wire
Phone Box
D1-SLC
A

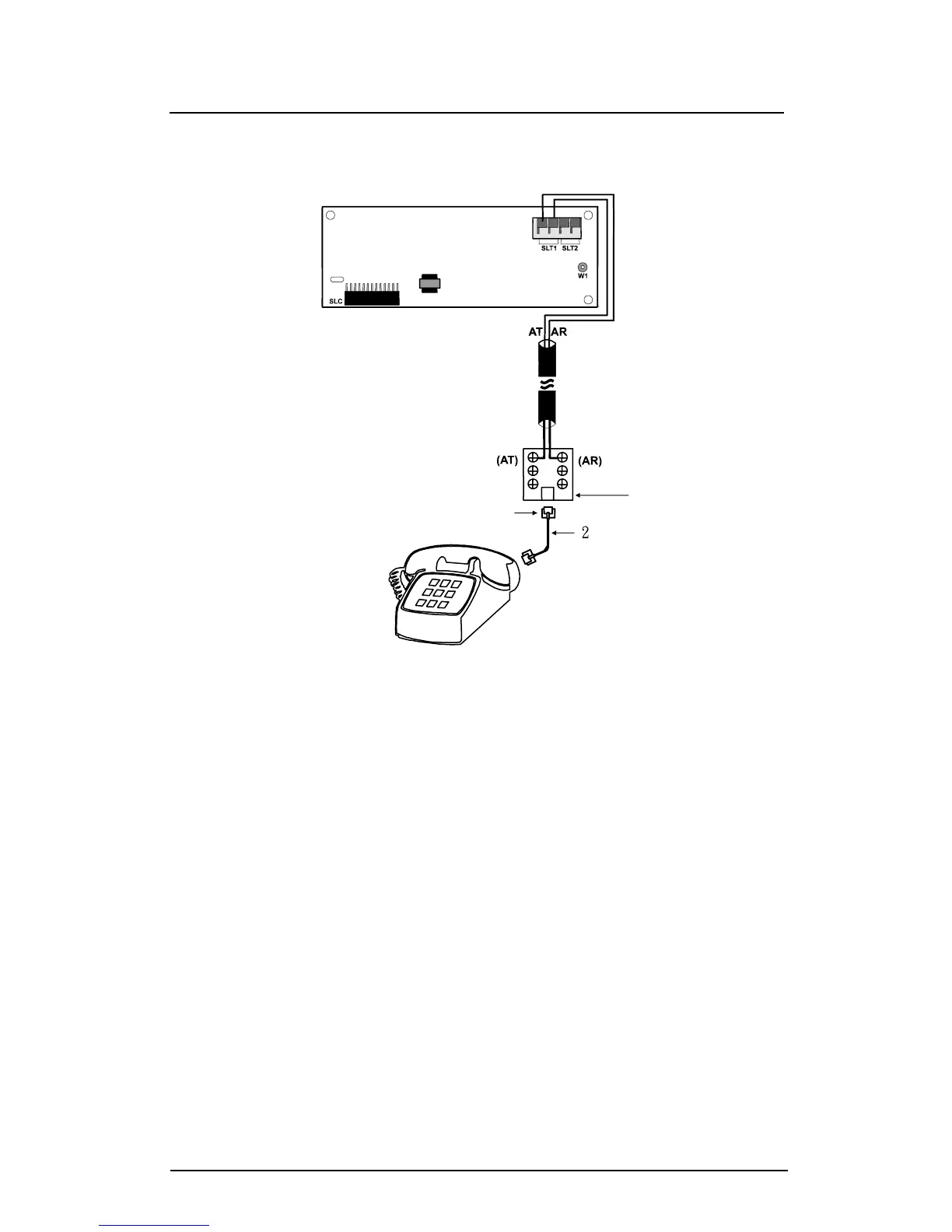

Figure 23. SLT Station Wiring on D1SLCB
1. Connect D1SLCB on D1MBUB.
2. Only for 2 SLT ports (SLT1) and (SLT2) provided on D1SLCB can connect with Single
Line Telephone.
3. The wiring of (SLT2) to connect with Single Line Telephone is analogous to that of (SLT1).
