Aristel DV-38 - D1 DLUB (Digital Key Station Unit, 8 Key Station Ports)

S
y
stem Installation Manual
D
V
-38
D1DLUB (Digital Key Station Unit, 8 Key Station ports)
Product: DV-38 DIGITAL KEY STATION UNIT
Item: D1DLUB
Size: 162 mm x 155 mm
Function:
1. Supports 8 ports of digital Key Phone interface.
2. Totally 3 pieces of D1DLUB could be installed onto the DV-38 main frame (24
Extensions Maximum).
4. D1DLUB fully compatible with DV-Series Key Telephones. Ex: DKP-30, DKP-31,
DKP-32 DKP-33, DKP-50, DKP-51, DKP-52, DKP-53.
1
2

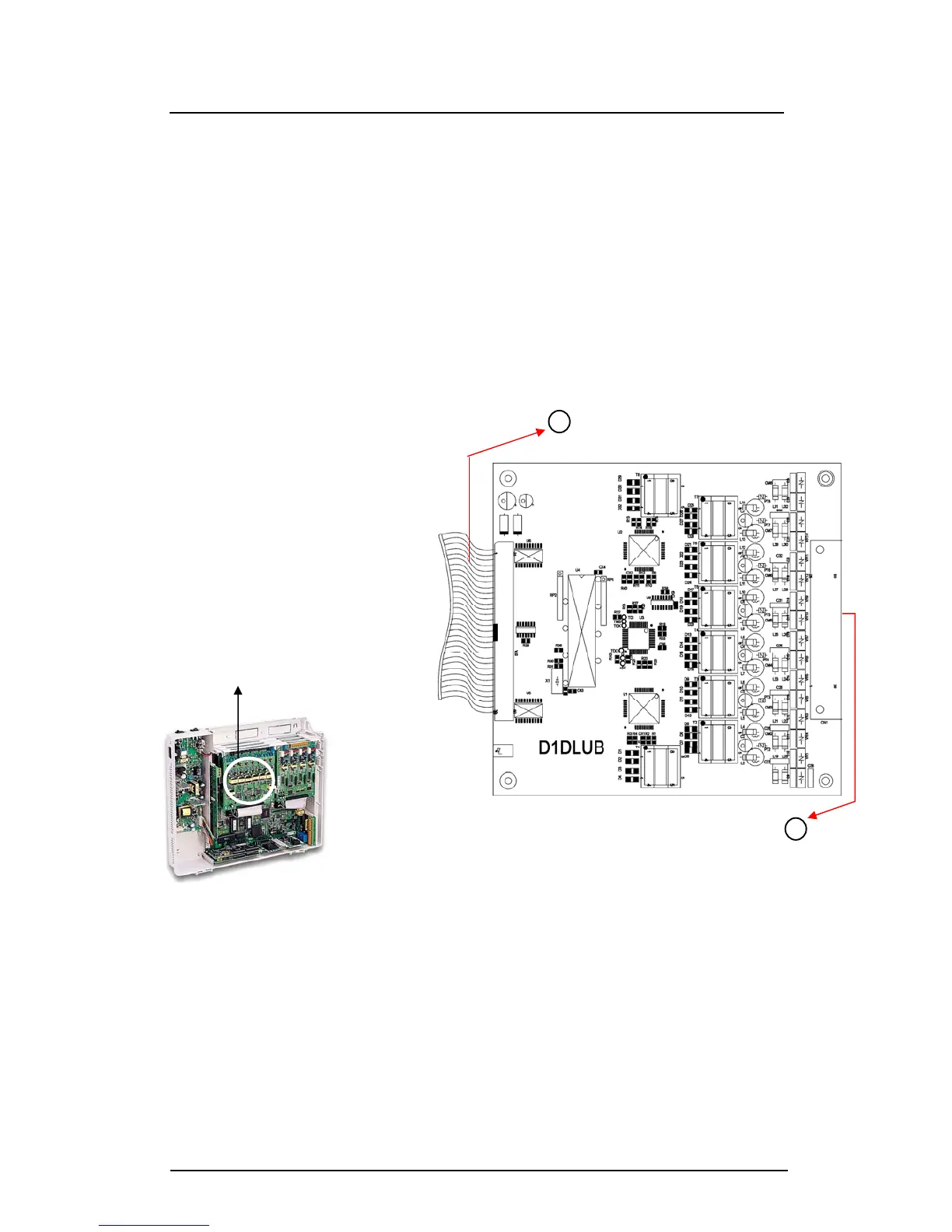

Figure 6. D1DLUB (Digital Key Station Unit, 8 Key Station ports)
The installation site of
D1DLUB, D1STUB
1. STA: 60-wires Rainbow Cable to connect to SAT1~3 positions where upon the D1MBUB.
2. CN1: Am phenol Connector Key Station Wiring.
22
