Aristel DV-38 - Page 49

D
V
-38
S
y
stem Installation Manual
RS232（Serial Printer or PC）Installation
DB-9 Male Connector
Standard DB-9 Cable
DB-9 Male Connector
D1TKUB
D1MBUB
Inside Wiring table
Female DB9(Pin
positions are
viewed from the
Rear inside DB9)
Female DB9(Pin
positions are
viewed from the
Rear inside DB9)
Inside Wiring table
Male DB9 which is
RS232 Output Port of the
system
Wiring table
View from the
front of DB9
Connect to PC
COM Port
6P6C Line Cord
“DB9 to RJ11” Convertor
(RED Color Box, Female)
“DB9 to RJ11” Convertor
(GREY Color Box, Female)
DB-9 Male Connector
RS232 Output Connector
Serial Printer (or PC)
including RS232 interface
D1-TK
U
B
D1
-
MB
UA
RS232
Serial Printer (or PC)
including RS232 interface

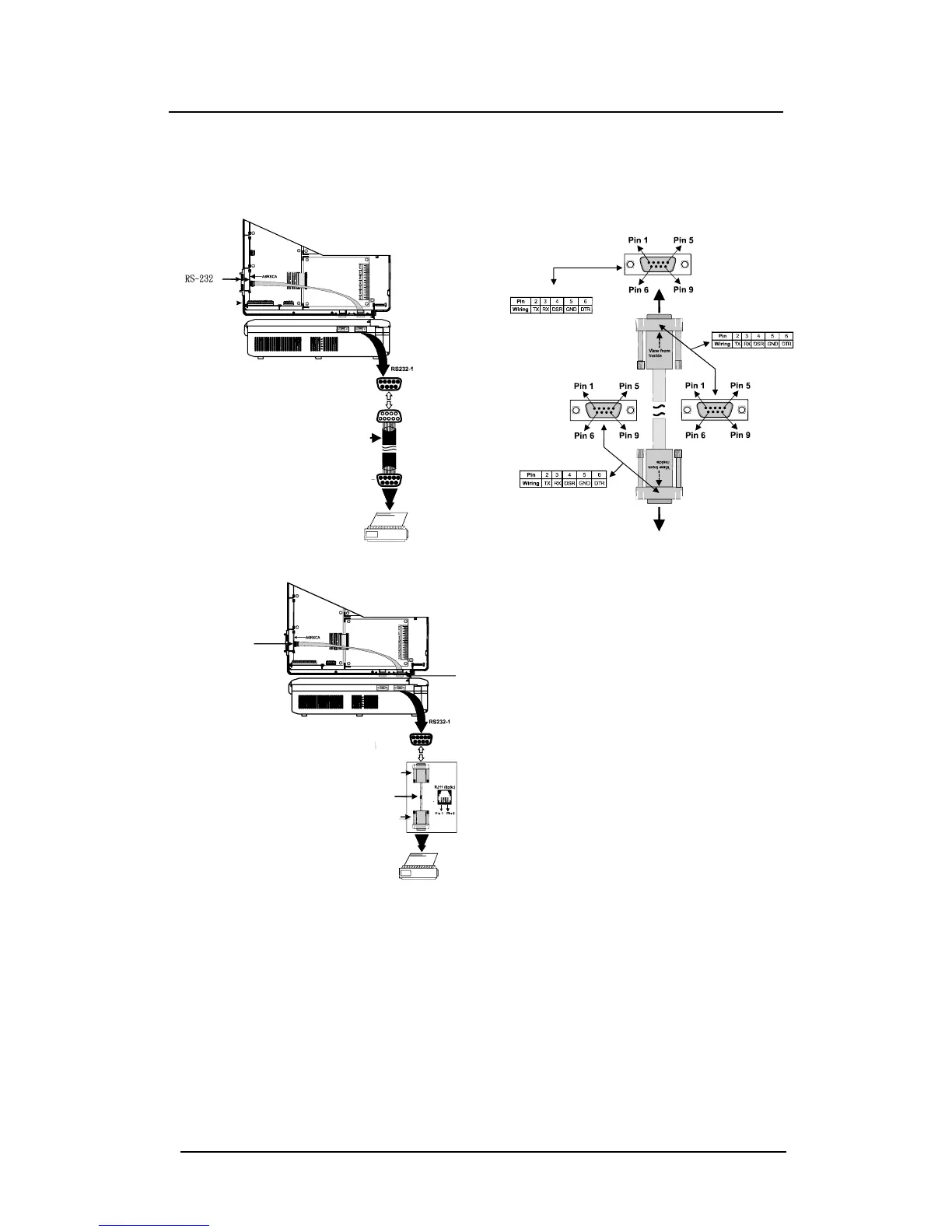

Figure 28. RS232 Wiring on D1MBUB (wired by customer)
2. Install D1RSCC (RSC) position on D1MBUB as the FIRST RS232 interface, or install
D1RSCC to (RPC) position on D1MBUB as the SECOND RS232 interface.
3. Set up the jumper Selection onD1RSCC according to which one of PC or Serial Printer is
connected to the system. Please refer to Figure 9. Point 2,3,4,5, on Page 29.
