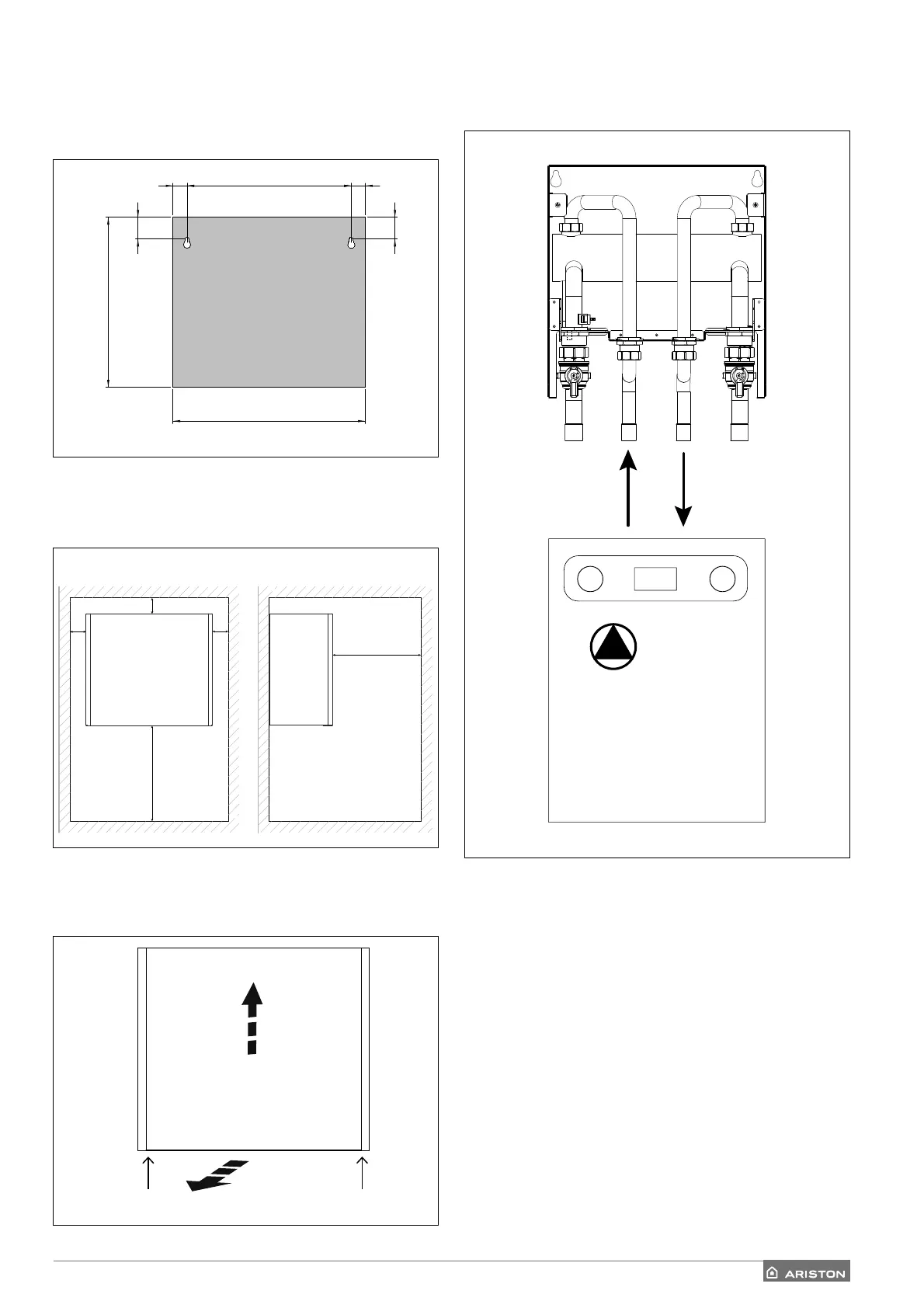

Example of connection to an external heat generator
Connect the external generator fl ow and return pipes to the
related universal hybrid module connection as shown in the
fi gure.
HYBRID MODULE
Preliminary installation
The HYBRID MODULE UNIVERSAL must be positioned close to
a residential space to ensure best performance.
330
400
15
45
270 15
45
Minimum installation distances
To allow proper system maintenance, you must adhere to the
minimum installation distances shown in the fi gures below.
50
50
50
300
500
Removing the front panel
Remove the two screws A, and push the front frame fi rst down-
wards, and then forwards (fi g.2).
(Fig. 1)
(Fig. 2)
AA
