CS175-275-575-875 Installation Guide 25

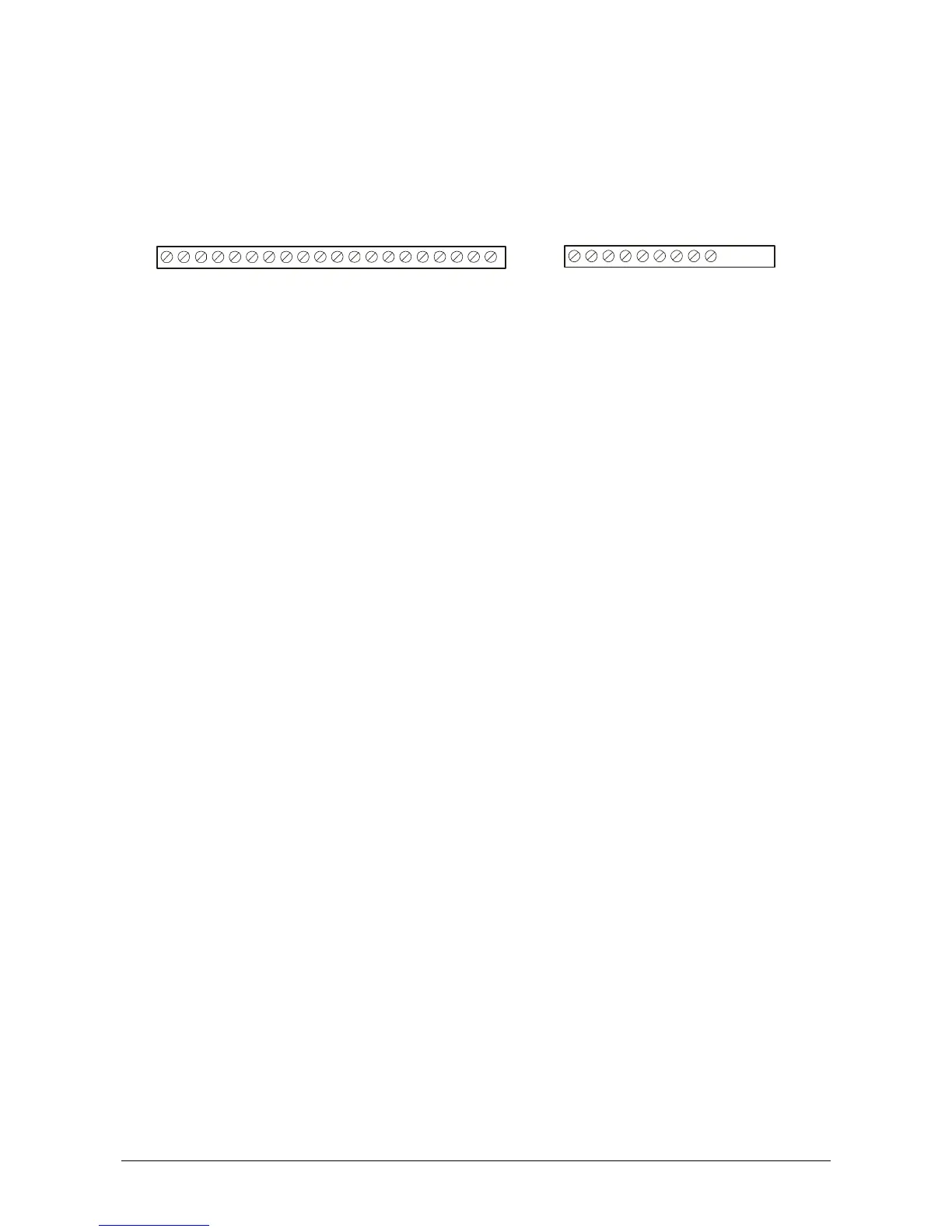

4.6.1 Inputs and outputs
CS275
DATA Communication/Expander data (0101) (Including Keypad)
AUX + Communication/Expander power (Including Keypad)
COM Communication/Expander ground (Including Keypad)
INT Inernal bell return
COM Ground
EXT External bell return
OUT1 Output 1
AUX + Power
OUT 2 Output 2
OUT 3 Output 3
AUX + Power
COM Ground
OUT 4 Output 4
TAMPER Tamper loop
Z1 Zone 1
COM Ground
Z2 Zone 2
Z3 Zone 3
COM Ground
Z4 Zone 4
Z5 Zone 5
COM Ground
Z6 Zone 6
DATA AUX+ COM I
N
T
C
O
M
E
X
T
O
U
T
1
AUX+ OUT2 O
U
T
3
AUX+ C
O
M
O
U
T
4
T
A
M
P
E
R
T
A
M
P
E
R
Z1 COM Z2 Z
3
C
O
M
Z
4
Z5 C
O
M
Z
6
