18

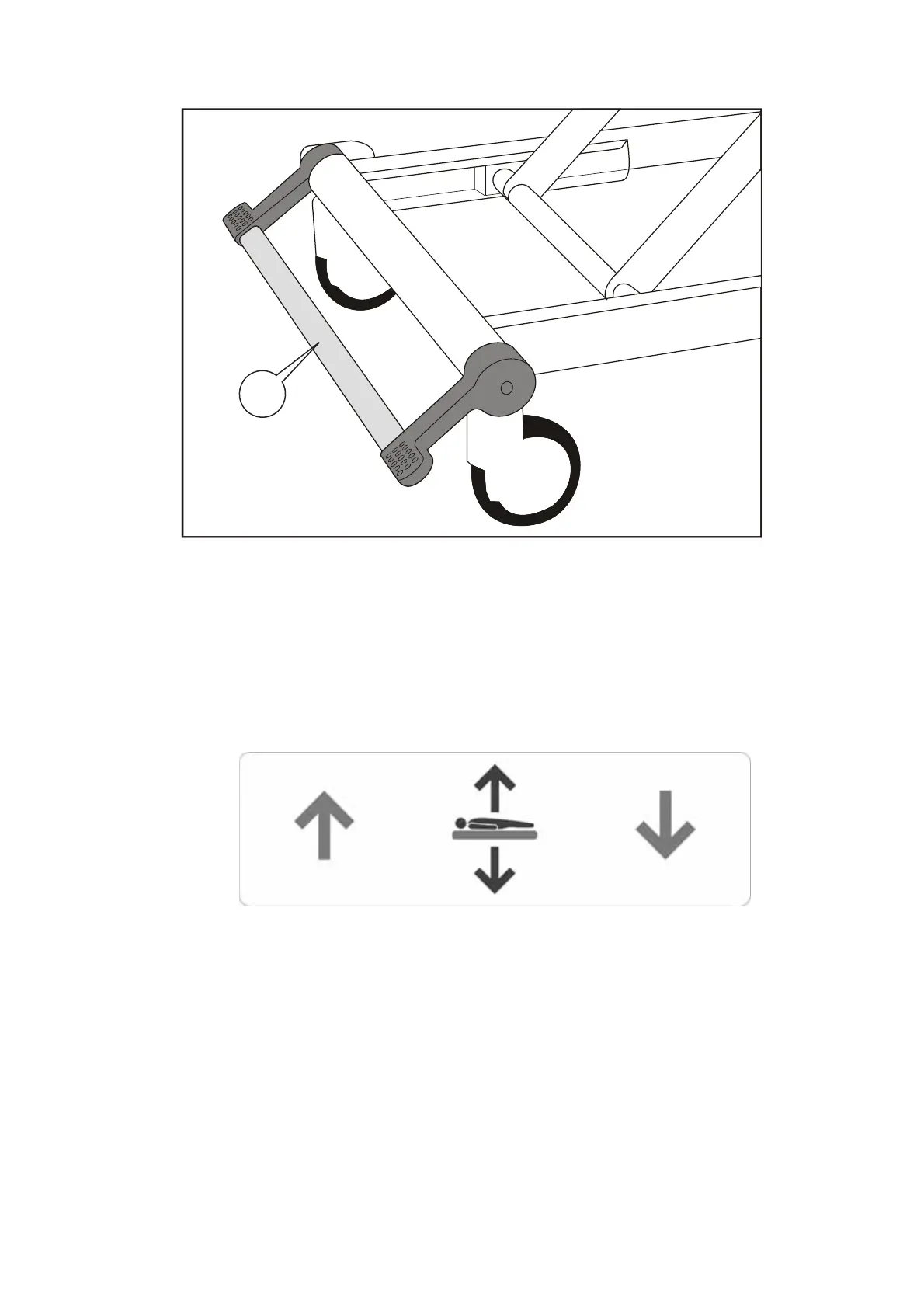

Brake bar
(Optional)
The brake pedals may be linked by a full width brake bar (1) which
makes it easier to operate the pedals.
Brake bar
Head end brake
pedals
Brake pedals are provided at the head end of the bed. These operate in
the same way as the foot end pedals.
Foot Pedal for
Adjustment of
Bed Height
(Optional)
Bed height can be adjusted from bed control panels and from the foot
pedal located near the foot end of the bed.
Lift cover of pedal with foot and press left side to raise the bed height.
Press right side of pedal to lower the bed height.
1
