Armstrong Design Envelope 4302 - Electrical Installation and Control Connections Diagram

installation &
operating instructions
Design Envelope 4302 ivs and 4382 ivs vertical
in-line pumping unit with integrated controls
34
11.8 electrical installation and control connections

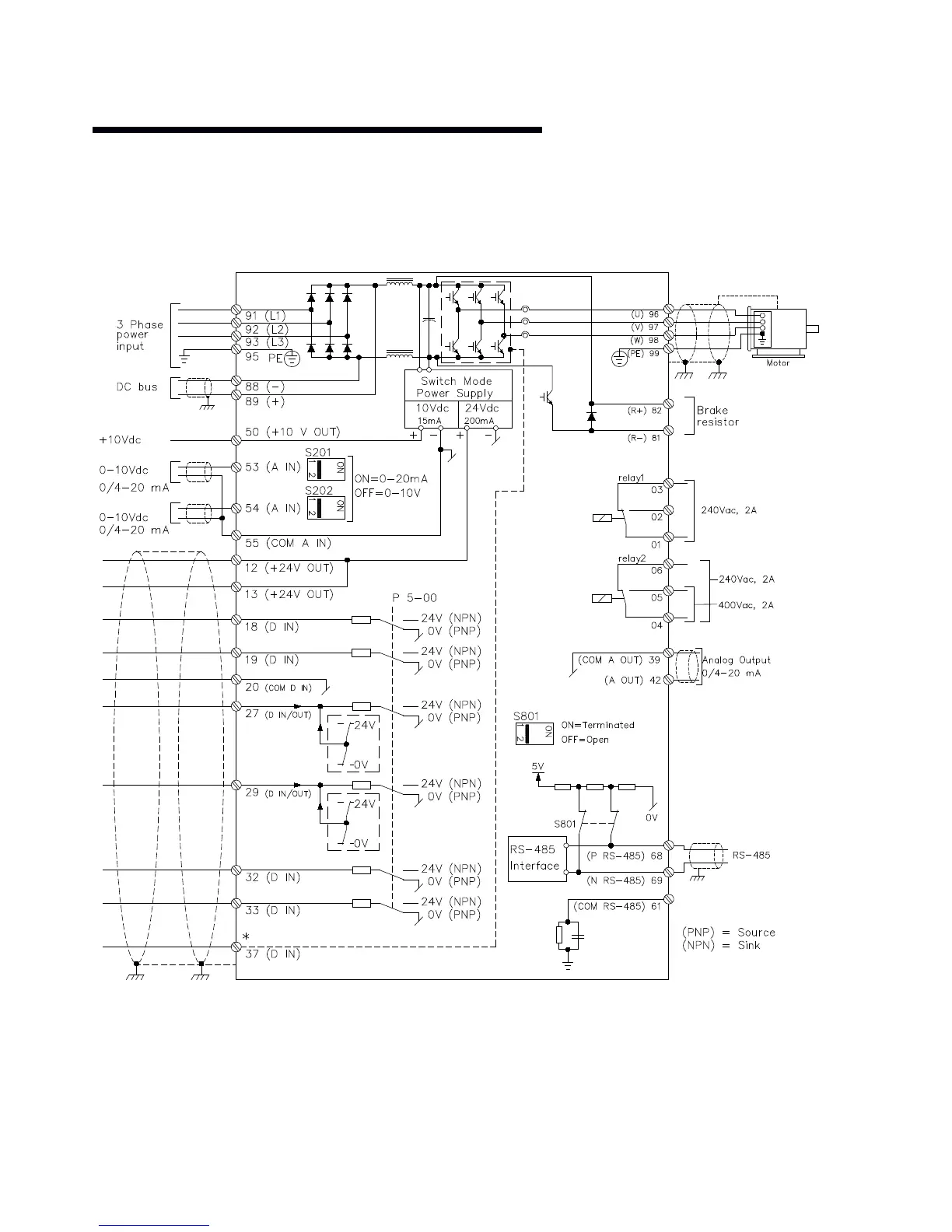

fig. 10 Diagram showing all electrical connections
*Note: terminal 37 is not available on ivs sensorless pumps
