Keypad Operating Instructions, cont.
Continued on next page
Units Imperial Metric
Feedback Type Temperature Position
Control Source Local Analog Modbus
Enabled Disabled
Aux Input
Contact Type
Position
Position Value
Temperature
Enabled Disabled
0° - 355°
Temp. Value
Gains
Gains Value
Standard Inverse
Enabled Disabled
0° - 100°
Enabled Disabled
25 - 175
Auxiliary

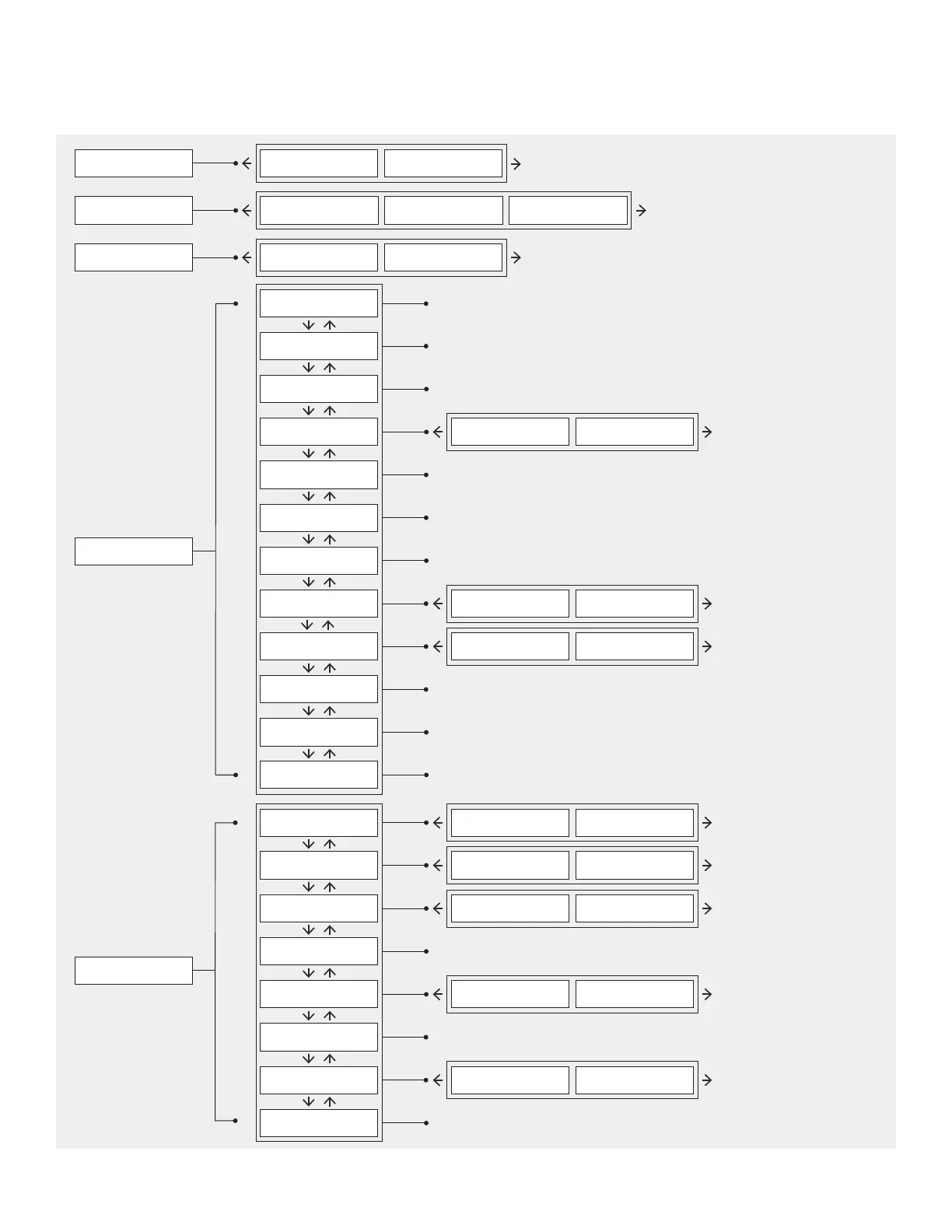

5.3 - Actuator Menu Structure
Standard Configs
Angle Min
Angle Max
Direction
Ctrl Angle Start
Ctrl Angle Stop
Gains Multiplier
RVS Gains
Slow Zone
Value range: 25% - 175%
Value range: 0° - 355°
Value range: 0° - 355°
Value range: 0° - 355°
Standard Reverse
Value range: 0° - 10°
Overwrites current variables to default values based on valve model selected
Value range: 0° - 355°
Value range: 2° - 15°
Standard Reverse
Advanced Settings
Zero Offset
Fault Position
Orientation CW CCW
Value range: 0° - 355°
