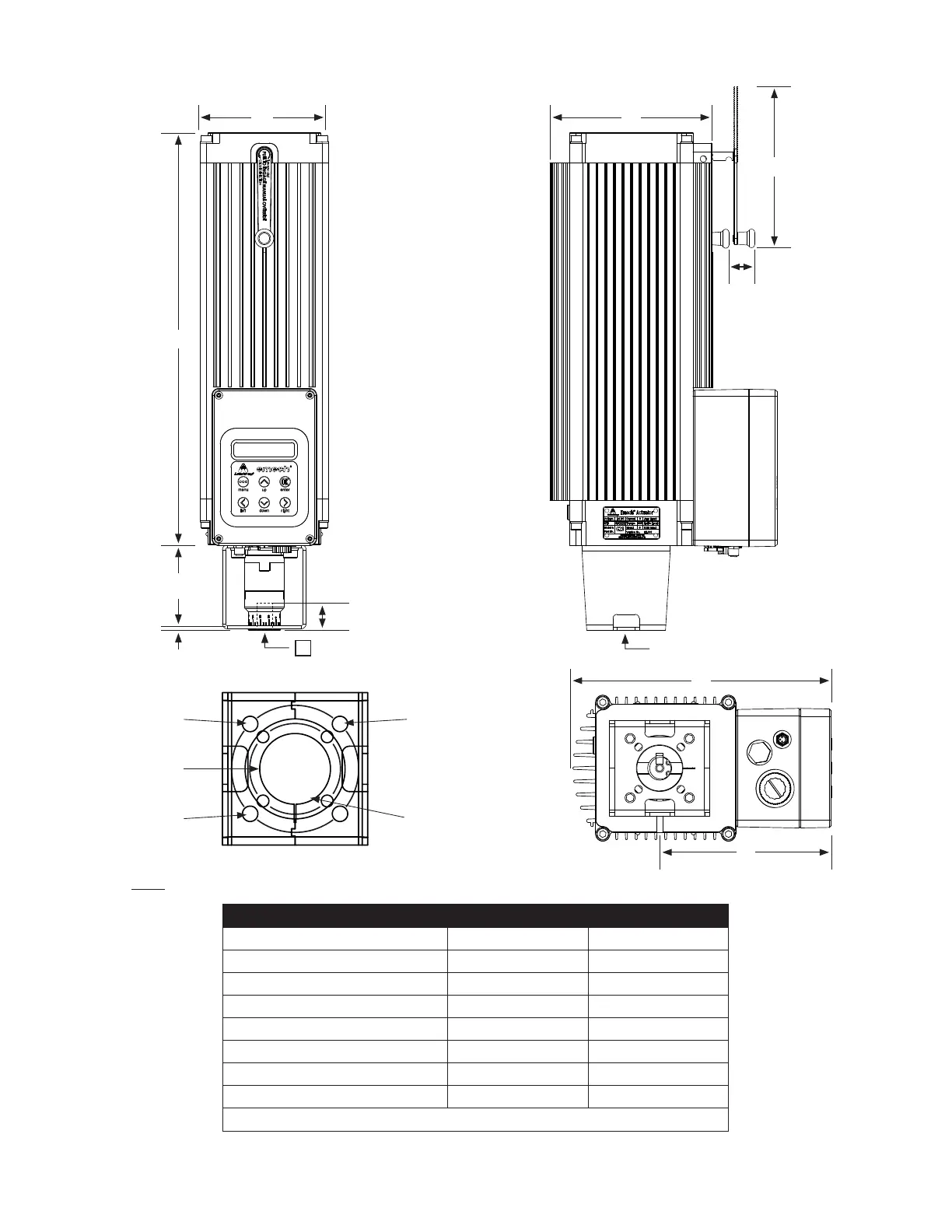

Dimensions
A
B
3.15”
80mm
0.04”
1mm
Mechanical Data G22 G23
A: Width 4” (101.6mm) 4.81” (122.2mm)
B: Height 12” (304.8mm) 15.5” (393.7mm)
C: Maximum valve stem depth 1.12” (28.5mm) 1.12” (28.5mm)
D: Width 5.8” (147.3mm) 6.71” (170.45mm)
E: Rotation Ø 3.54” (90mm) 7.09” (180mm)
F: Width 7.7” (195.6mm) 8.51” (216.2mm)
G: Center of coupling to end of box 5.25” (133.4mm) 5.65” (143.5mm)
Weight 16 lbs 31 lbs
⎕⎕
Size Options: 10mm x 10mm OR 14mm x 14mm
Note: Actuator side of mounting kits are all F07. Other mounting kits are available upon request. Consult factory.
C
Size
D
E
Rotation ∅
Pull out handle to engage.
0.32”
8mm
Valve Side
F
G
4 x ∅ .334 THRU
8.5mm
∅ 2.756±0.004 PCD
70.00mm±0.10
∅ 1.969±0.004 PCD
50.00mm±0.10
4 x ∅ .26 THRU
6.5mm
∅ 1.535±0.004
39.00mm±0.10
