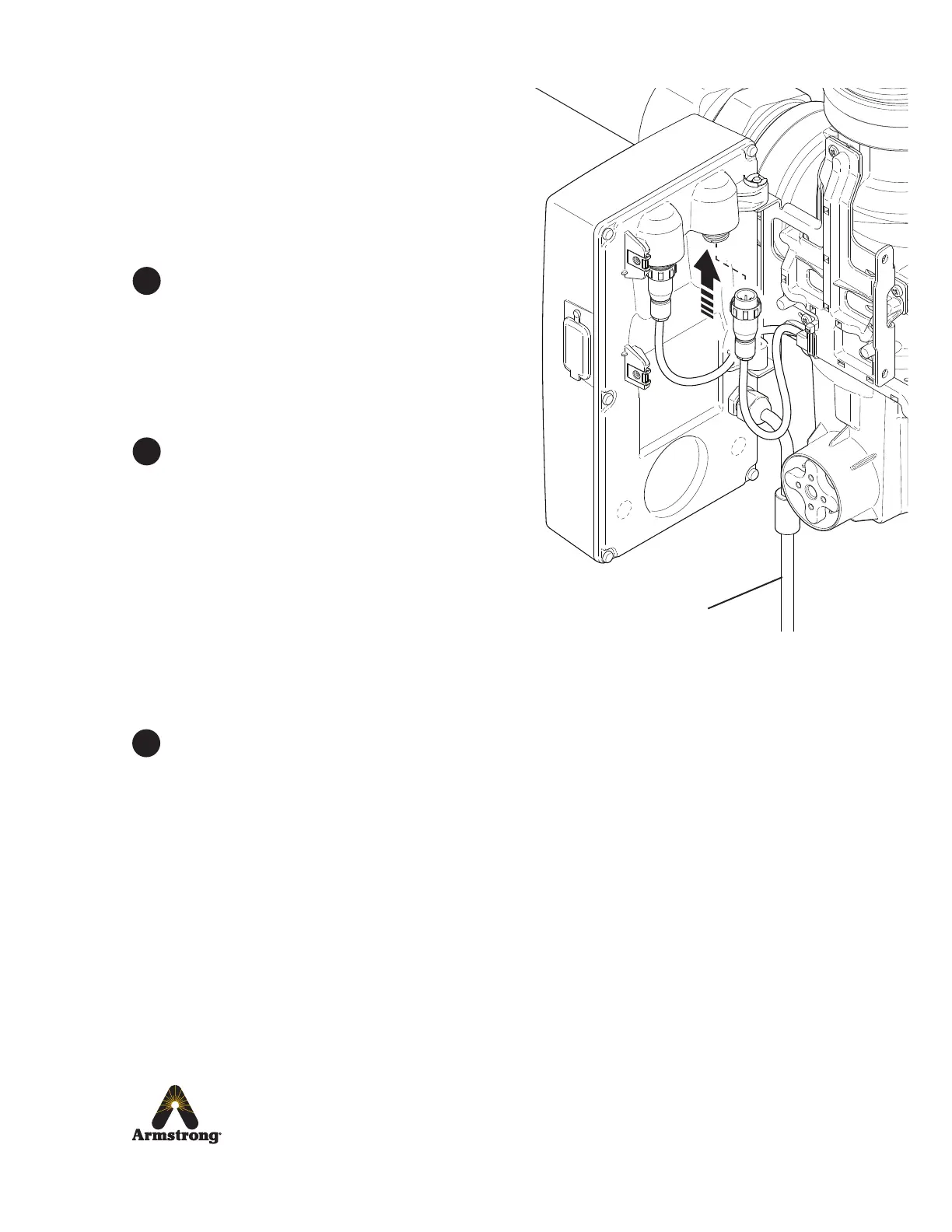

Connect and secure the 8 pin plug to the back
of the Electronics Module.
Important! Do not fit the 4 pin plug at this
stage. To prevent a back EMF the system
must be flooded with water before the 4 pin
plug is fitted.
Connect the power cable to the primary power
supply via switched circuit breaker with a 3
Amp fuse.
A separate, permanently connected supply
must be taken from the ring main to the
appliance through a 3 Amp double pole
switched fuse spur providing a minimum of
3 mm contact separation gap in each pole. This
disconnection device should be located near to
the DRV80 and identified to its purpose.
Commission the DRV80 and recirculation system using the following instructions...
