DIS-IP2 DESKTOP CALL STATION
USER MANUAL
armtel.com page 9/37
info@armtel.com © Armtel
ENG

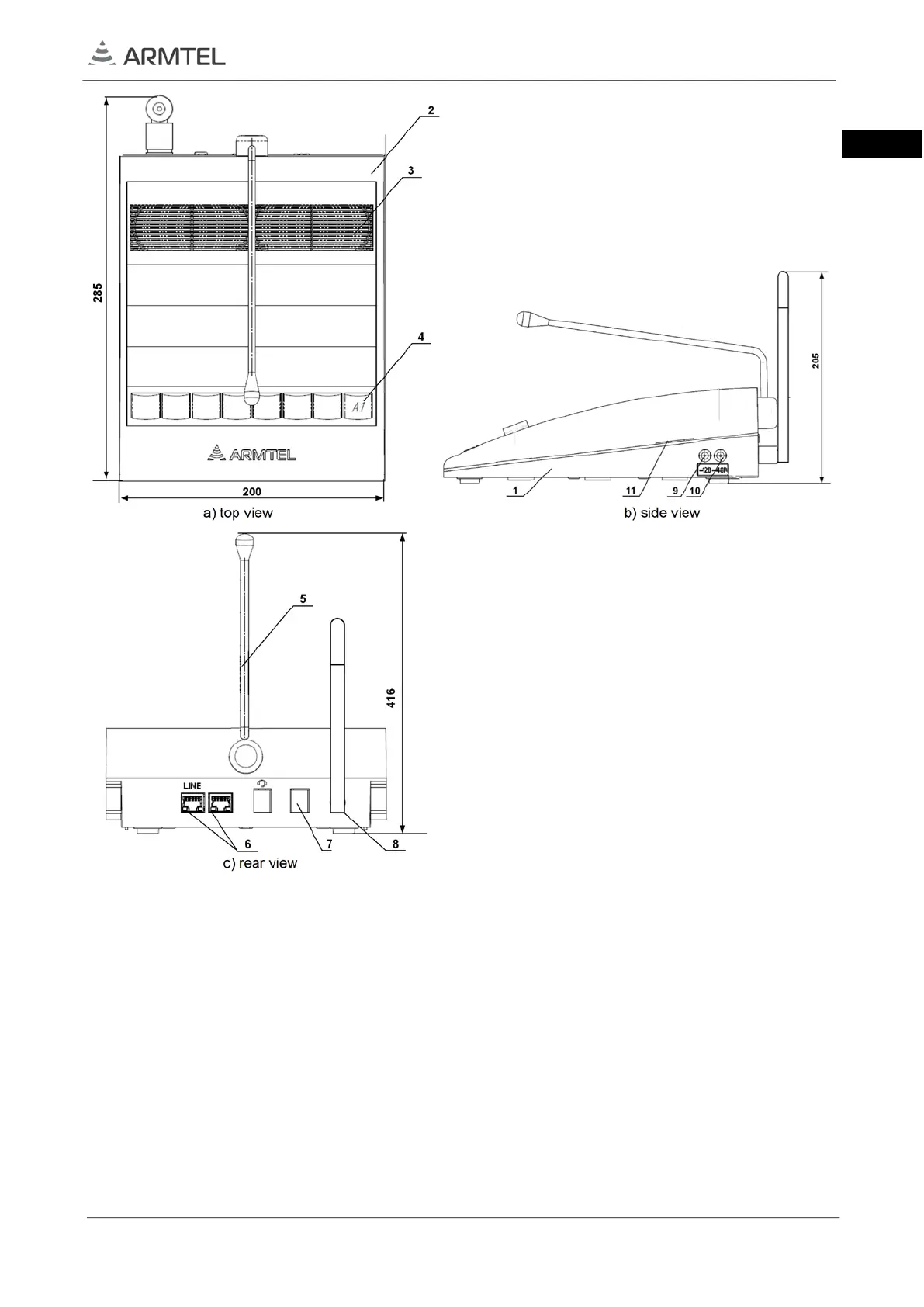

1 – enclosure; 2 – cover; 3 – built-in-loudspeakers; 4 – LED pushbuttons; 5 – electret microphone;
6 –RJ-45 connectors for cable connection to Ethernet; 7 – RJ-11 connector for ADSL line connection;
8 – Wi-Fi antenna NETIS PA105S; 9 – connector for external power supply 12 V; 10 – connector for
external power supply 48 V; 11 –socket for output of DIS expansion unit in case of its use.
Figure 2 – External appearance and overalls of DIS-IP2
1.1.4 Labeling
On the bottom of the DIS-IP2 enclosure is placed bilingual laser engraved nameplate.
The nameplate contains the following information:
− name, trademark and reference information of the manufacturer;
