DIS-IP2 DESKTOP CALL STATION
USER MANUAL
armtel.com page 11/37
info@armtel.com © Armtel
1.2 Description and operation of product components
1.2.1 General
DIS-IP2 components are described herewith:
− the main board, LED pushbuttons;
− Wi-Fi module;
− ADSL modem;
− gooseneck microphone.
1.2.2 Main board
The main board external appearance is shown in Figure 3. The main board is a printed
circuit board with electronic components, necessary for functioning and connecting
DIS-IP2 in the process of operation.

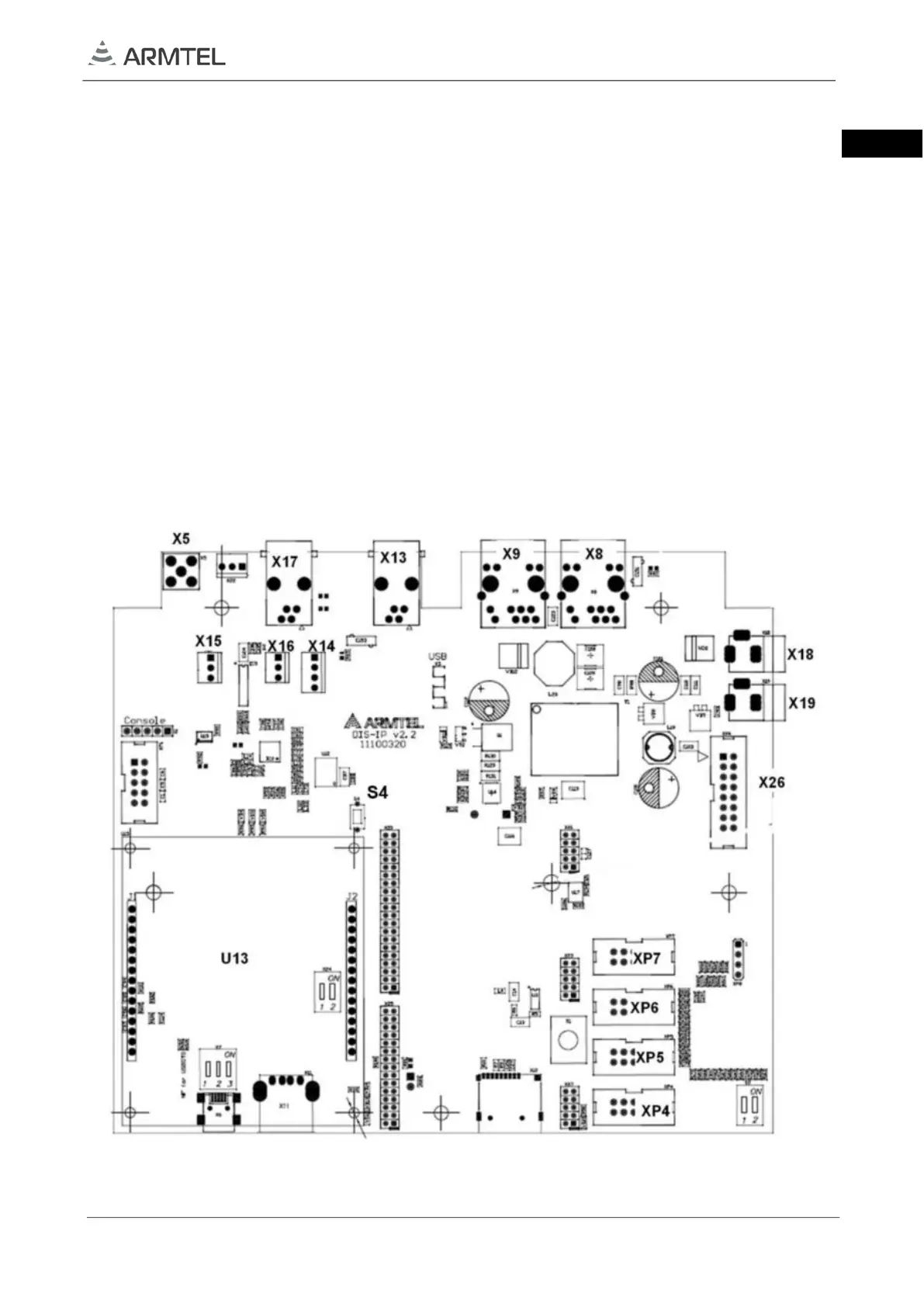

Figure 3 – DIS-IP2 main board
