APPENDIX B
PRODUCT CONNECTION
DIS-IP2 is connected to IP-network via 100BaseT Ethernet interface with PoE function,
providing power supply.
The pin assignment of RJ-45 supply and communication is given in Table B.1.
Table B.1 - Power and Communication RJ-45 Connector Pinouts
Contact No. Assignment
1
Data transfer (TX+)
2
Data transfer (TX-)
3
Data receipt (RX+)
4
PoE_VDD
5
PoE_VDD
6
Data receipt (RX-)
7
PoE_GND
8
PoE_GND

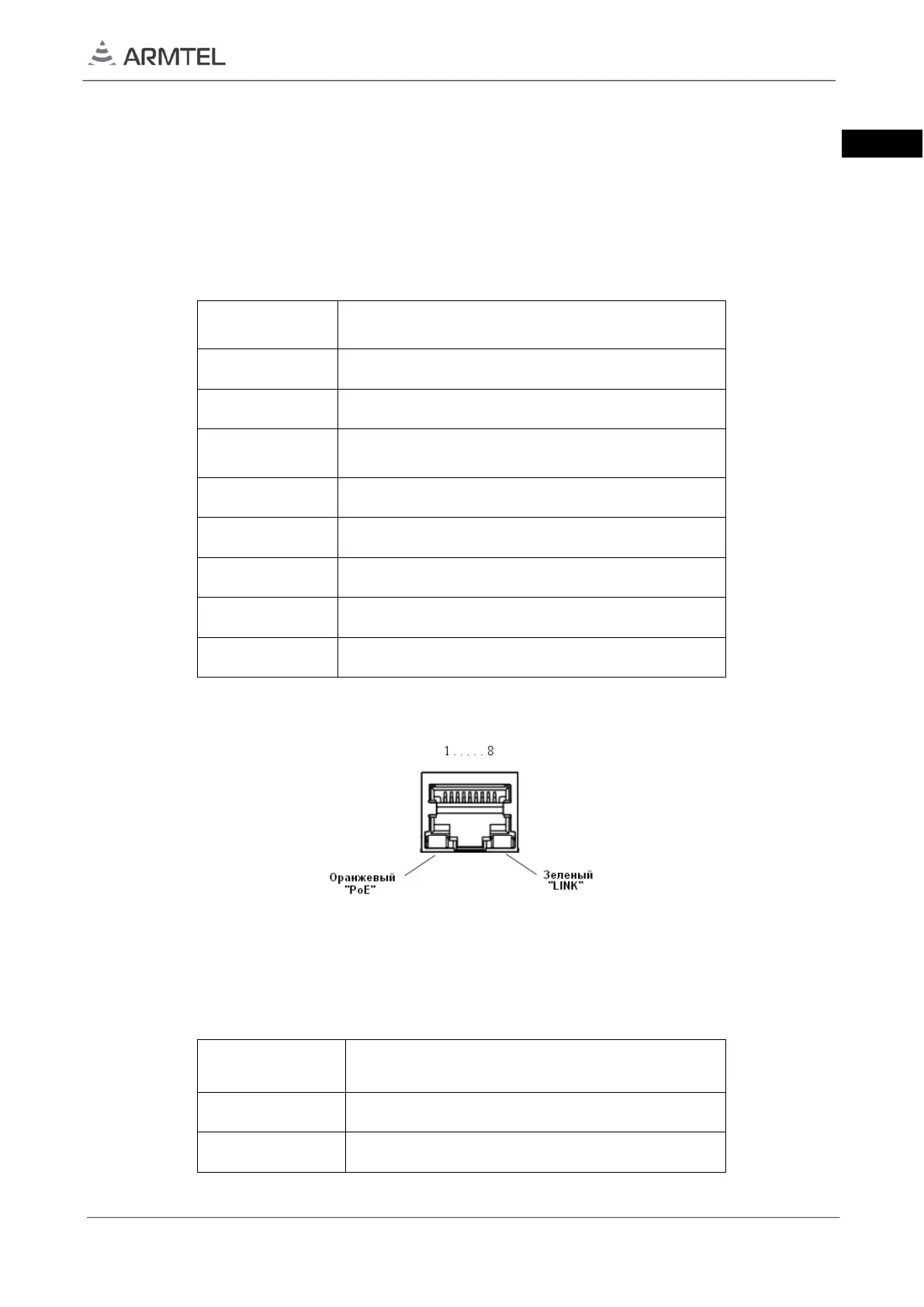

External appearance of RJ-45 with pin numbering and backlight LEDs is shown in Fig-
ure B.1.
Figure B.1 – External appearance of RJ-45 100BaseT Ethernet
The pin assignment of RJ-11 ADSL is given in Table B.2.
Table B.2 - Pin assignment of the RJ-11 ADSL connector
Contact No. Assignment
1
no connected
2
ADSL_TIP
