3600 SERIES USER MANUAL

3600 Series Programmable DC Power Supply

VERSION 2.10 2006.03

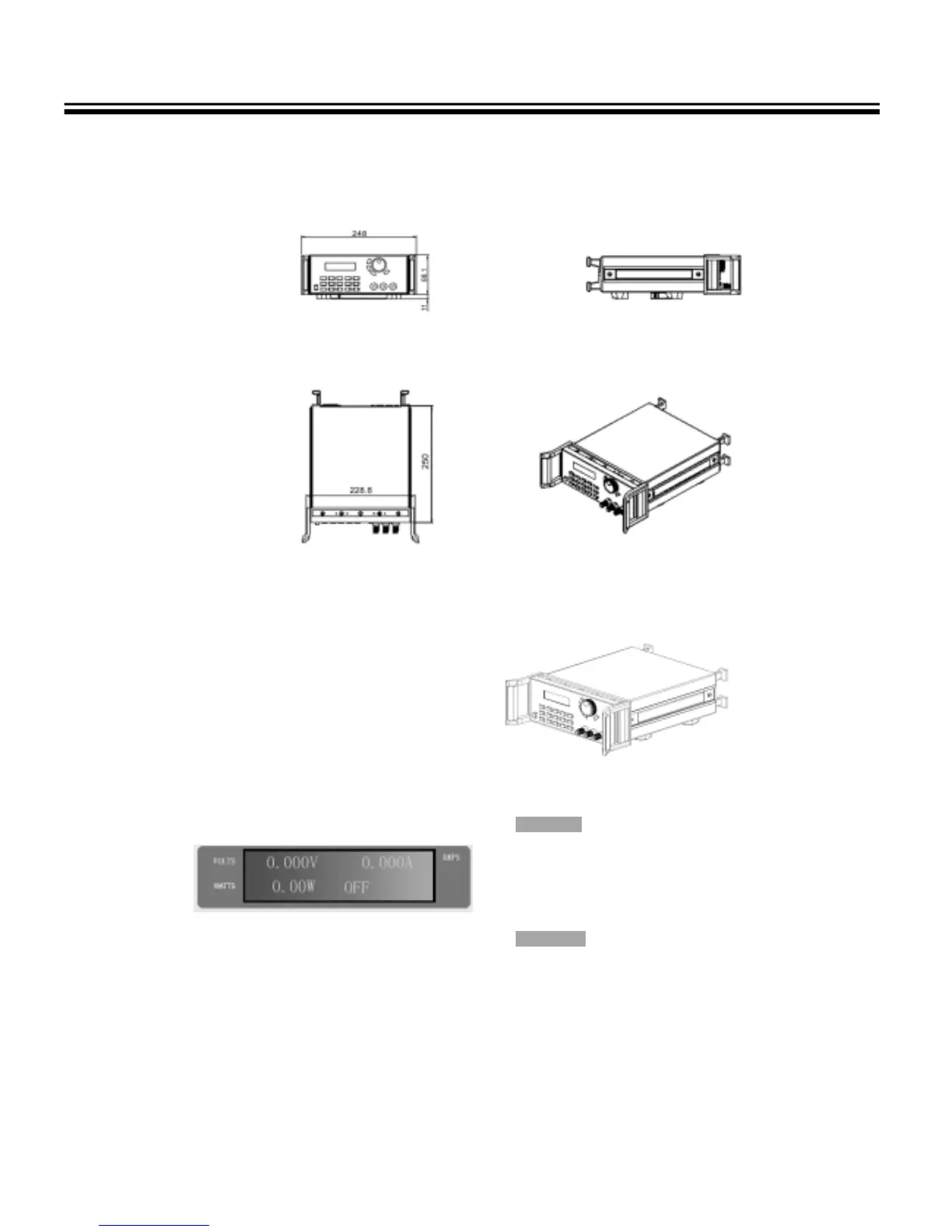

1.4 Dimensions and Structure

1.4.1 Dimensions

Fig. 1-1 Dimensions of 3600 Series Programmable DC Power Supply

1.4.2 Structure

1.4.2.1 Front view

Front panel is for users to operate, and

there is one LCD display, one number

keypad and one rotary knob. Please

see the following pictures. Fig. 1-2 Front view of 3600 Series DC Power Supply

1. LCD display

Fig. 1-3 LCD Display of 3600 Series power supply

The 1st line:

Left: The voltage value. When output is off, this value is

the set value, when output is on, this is the actual output

voltage value

Right: The actual output current value.

The 2nd line:

Left: The output power value. (Flashing power value

means the over power.)

Middle: ON / (OFF), the output state of the power

supply.

Right: PC, represents the Power Supply is controlled by

the computer.
