3600 SERIES USER MANUAL
3600 Series Programmable DC Power Supply
VERSION 2.10 2006.03
6
Chapter 2 Operation
2.1 Connect the Power Supply to the load

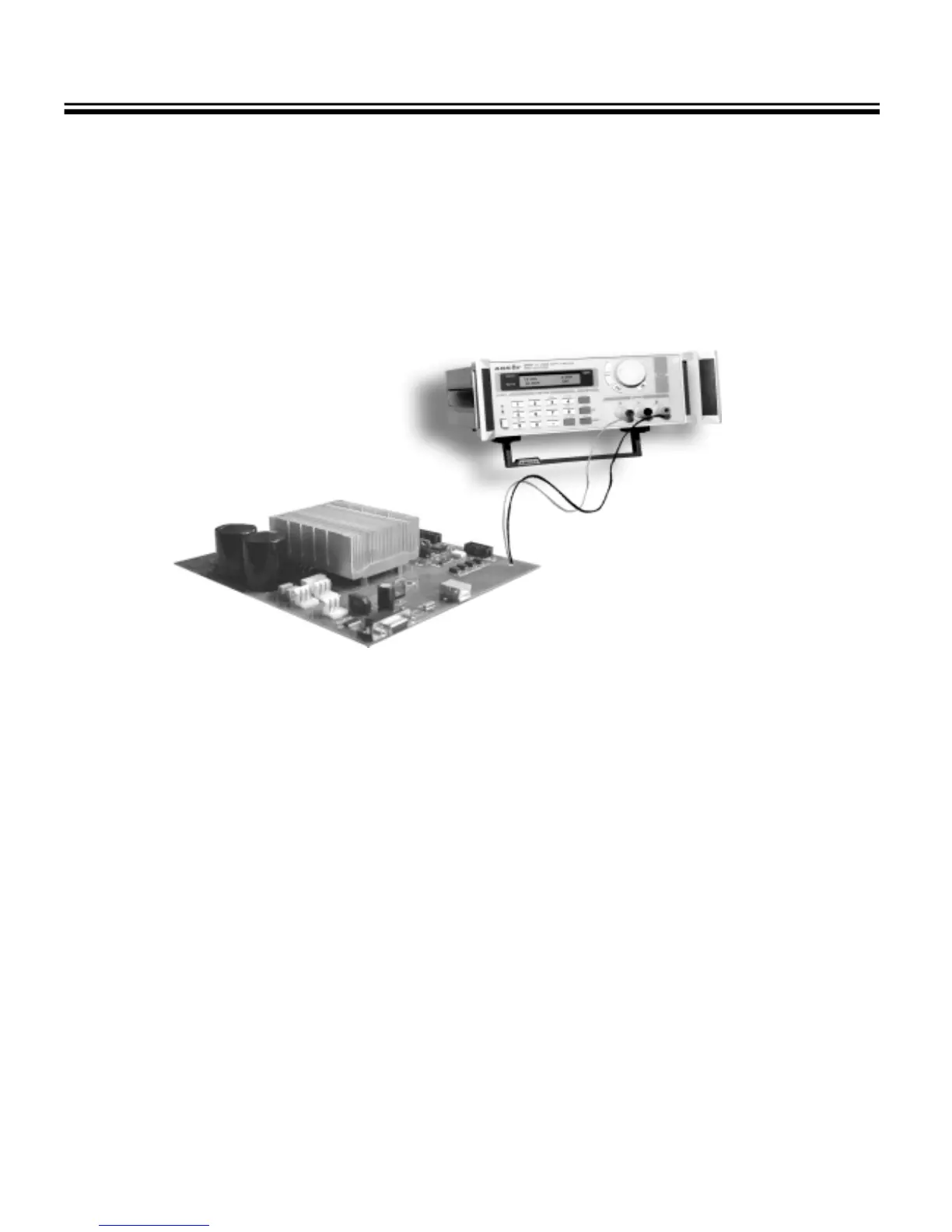

Fig. 2-1 Connect the Power Supply to the load
2.2 Main functions
1.Setting the output voltage
2.Setting the current limit
3. Output On/Off
4. Store parameters
5. Recall parameters
2.2.1 Setting the output voltage
3600 series power supply provides two methods to set the output voltage: by the number keypad and by the
rotary knob. Please see the following operation procedure.
