3600 SERIES USER MANUAL
3600 Series Programmable DC Power Supply
VERSION 2.10 2006.03
21
4.7 The Voltage, Amp, Power Meter
The Voltage, Amp, Power Meter show the setting and read back value of voltage, current and power.

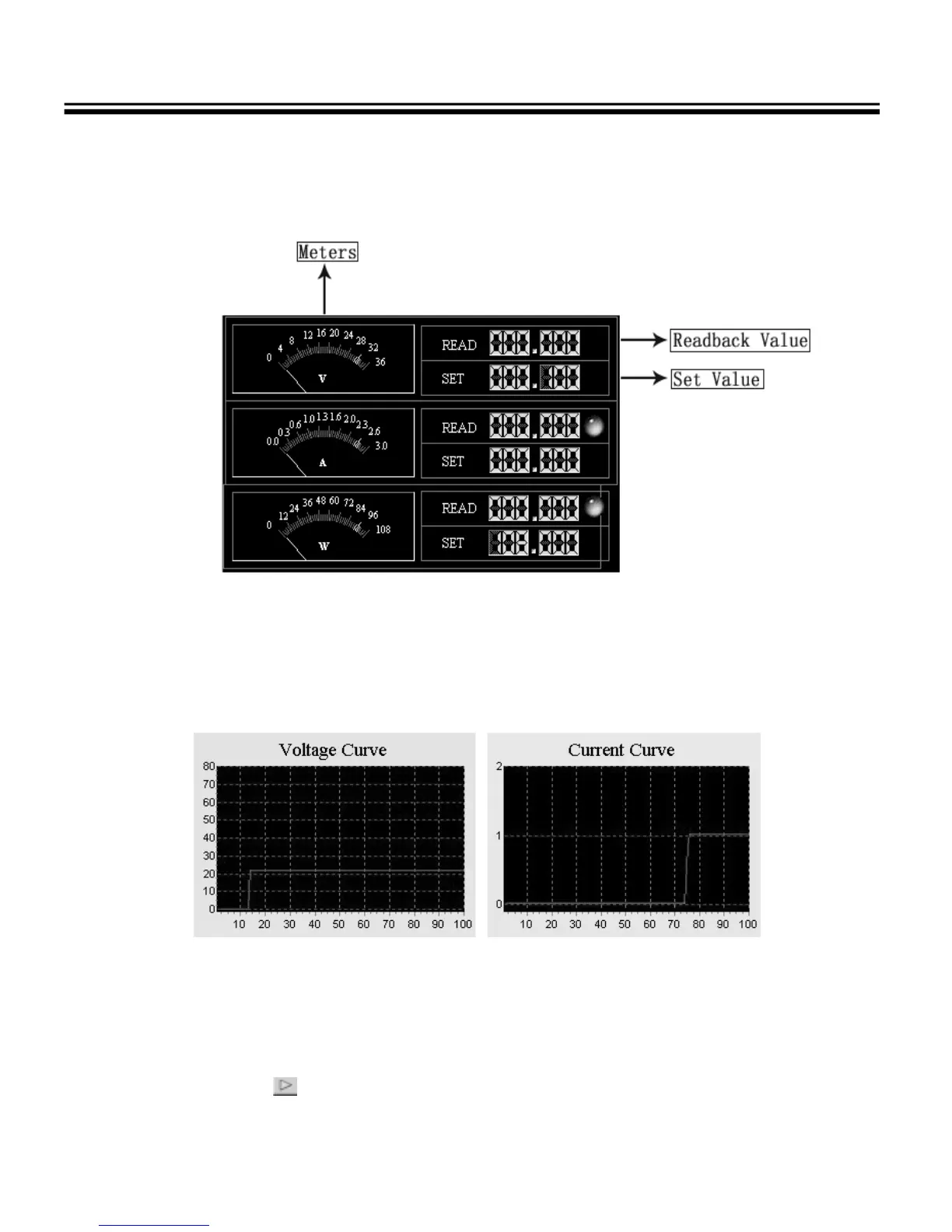

Fig.4-10 The Voltage, Amp, Power Meter
4.8 Dynamic Curve
These curve show the dynamic states of voltage and current.
Fig.4-11 The Voltage Curve Fig.4-12 The Current Curve
You may drag your mouse on the curve to zoom in/out.
4.9 Start Communication
Click the button to start the communication with the power supply.
