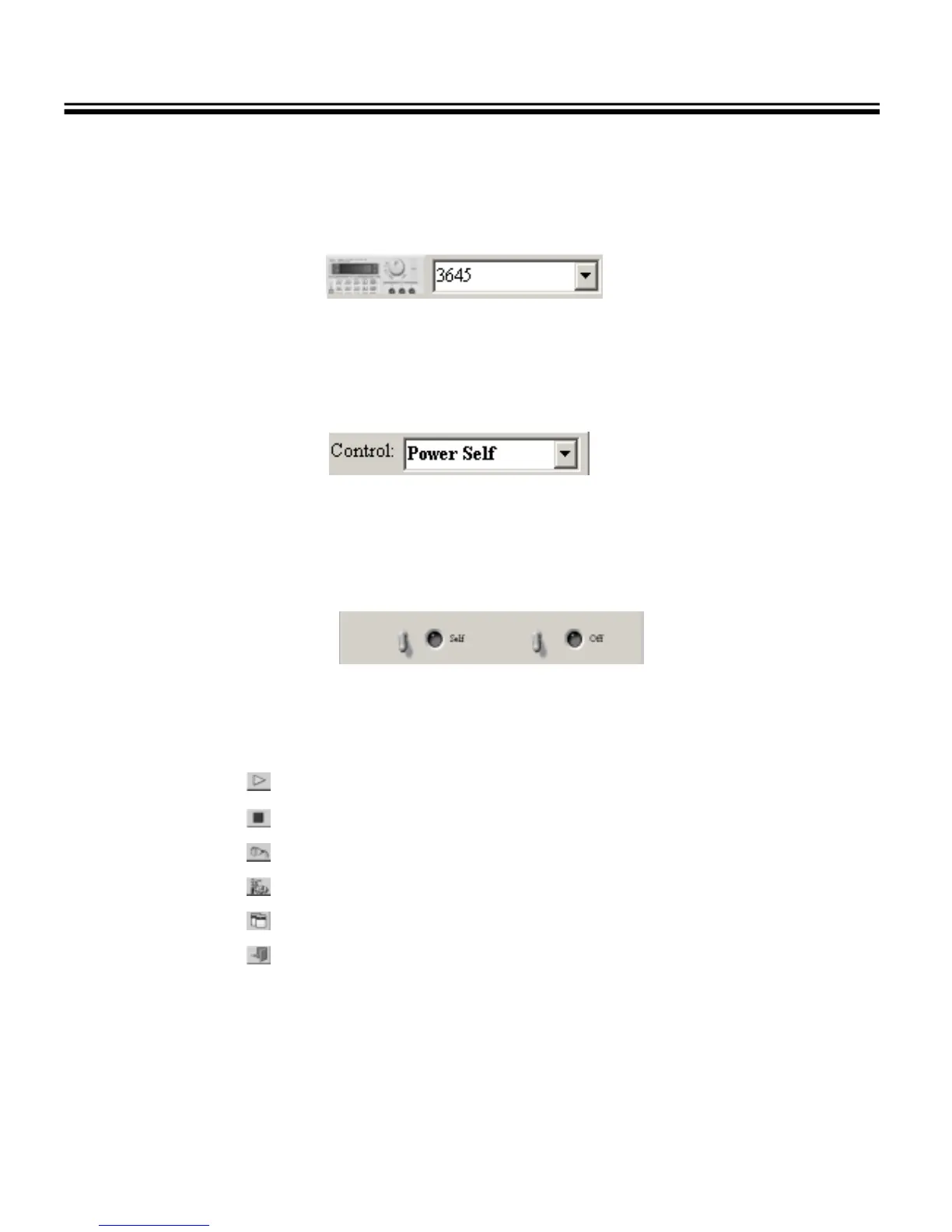

4.2 The Power Supply List
The power supply list lists all registered power on the computer. To make the PowerMS control your power,
choose the power you want to use from the power supply list.
Fig. 4-5 The Power Supply List
4.3 The Control List
To set who controls the power supply: the PC or the power itself; or to enable/disable the power output, select the
corresponding instruction from the control list.
Fig. 4-6 Select the Control Instruction
4.4 The Control Switch
The On/Off switch is to turn on/off the output, the Self/PC Control switch is to set who control the power supply:
the PC or the power itself.
Fig. 4-7 The Control Switch
4.5 The Tool Buttons
On the top left of the main window, there are 6 tool buttons:
“Start”: Start communication
“Stop”: Stop communication
“Setting”: setting COM Port and recording interval
“Power Setting”: Setting power supply parameters
“Report”: Data report
“Quit”: Quit the PowerMS program
To Next Page
