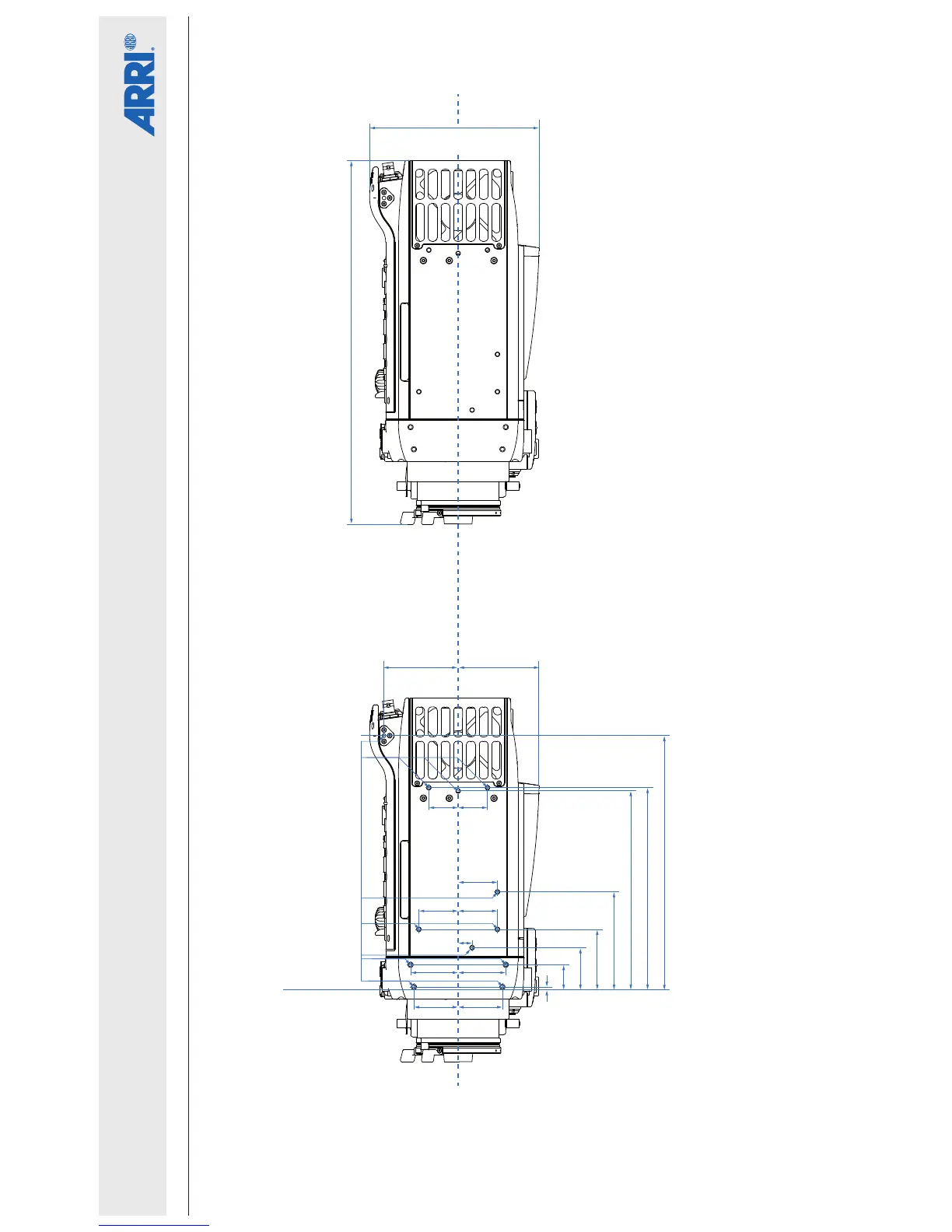

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
331 mm
12.64”
Camera Top
Camera Top Image Plane
Optical Center
67 mm
2.64”
73 mm
2.87”
230 mm
9.06”
183 mm
7.21”
180 mm
7.09”
88.8 mm
3.5”
55 mm
2.17”
38.5mm
1.52”
40 mm
1.58”
43 mm
1.69”
43 mm
1.69”
35.5 mm
1.4”
35.5 mm
1.4”
12.6 mm
0.5”
35.5 mm
1.4”
26.5 mm
1.04”
26.5 mm
1.04”
40 mm
1.58”
23 mm
0.91”
3 mm
0.12”
M4 (4 mm deep)
153 mm
6.02”
