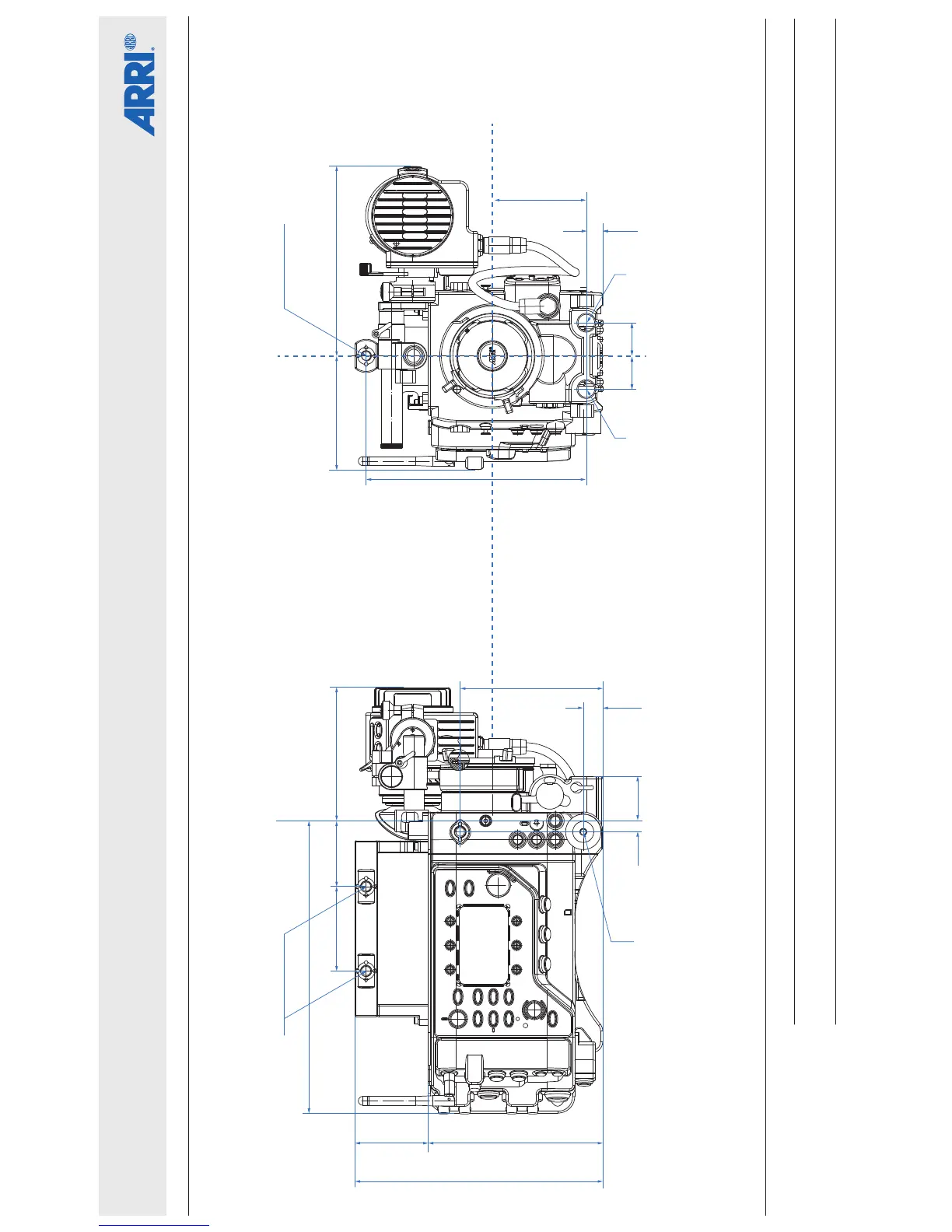

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA Plus
ALEXA Plus Length Width Height Weight
Body, SxS Module 332 mm - 12.95” 175 mm - 6.89” 158 mm - 6.22” 7.0 kg - 15.4 lb
Body, SxS Module, Camera Center Handle (CCH-1), Electronic Viewfinder EVF-1
384 mm - 15.12” 274 mm - 10.8” 224 mm - 8.82” 8.4 kg - 18.5 lb
Camera Right Image Plane
Camera Front Optical Center
Optical Center
M6 (3.5mm deep)
85 mm
3.35”
128.8 mm
5.07”
17.6 mm
0.7”
223.8 mm
8.81”
66 mm
2.6”
157.8 mm
6.21”
102.8 mm
4.05”
171.2 mm
6.74”
120,3 mm
4.74”
59.4 mm
2.34”
10 mm
0.39”
40 mm
1.58”
76.2 mm
3”
264 mm
10.4”
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)
199 mm
7.84”
ø 15 mm ø 15 mm
30 mm
1.18”
30 mm
1.18”
14.8 mm
0.58”
