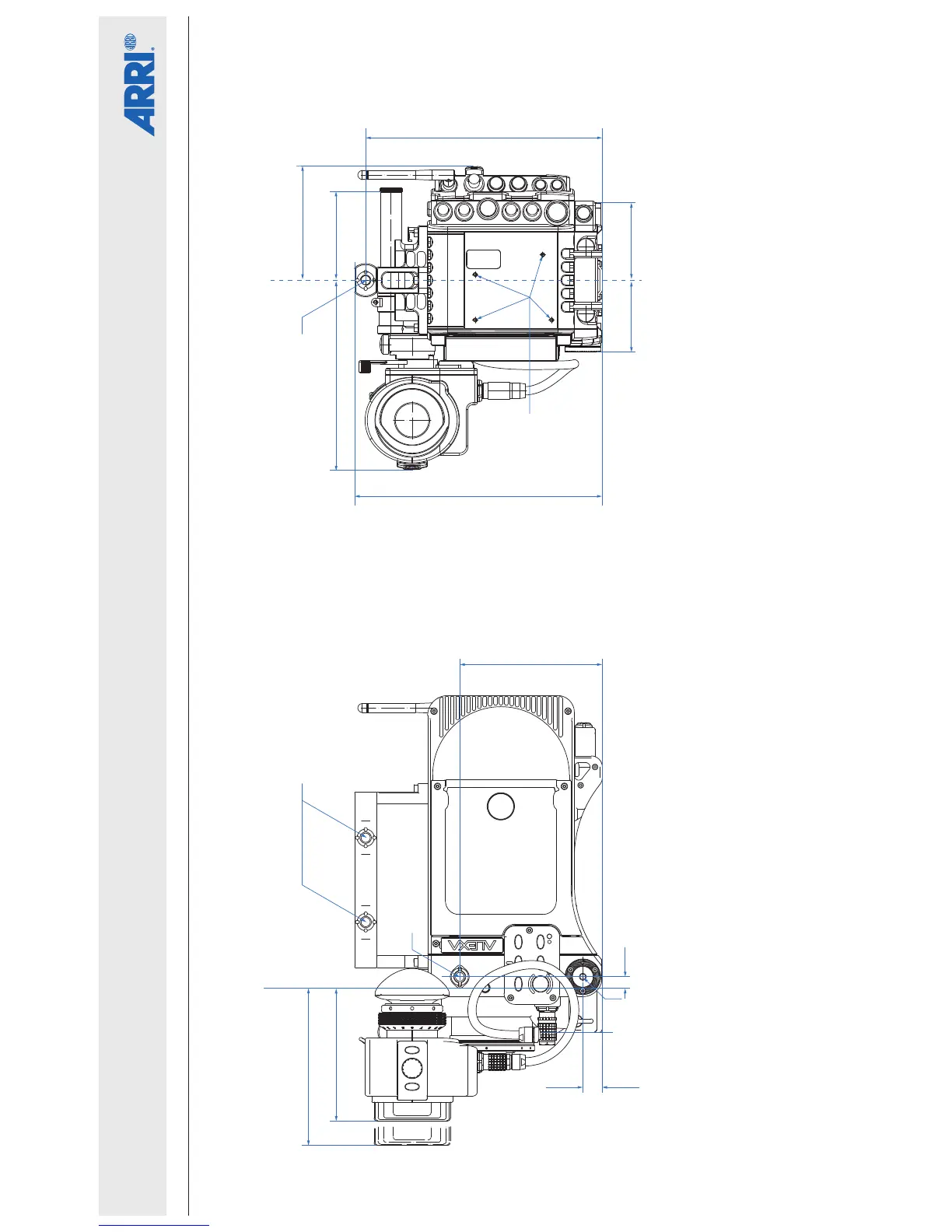

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA Plus
142 mm max.
5.59”
120 mm
4.72”
64.9 mm
2.56”
69.9 mm
2.75”
Camera Left Image Plane
Camera Back Optical Center
80 mm
3.15”
223. 8 mm
8.81”
128.8 mm
5.07”
17.6 mm
0.7”
10 mm
0.39”
213.8 mm
8.42”
102.8 mm
4.05”
171,2 mm
6.74”
M6 (3.5 mm deep)
M3 (6 mm deep)
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)UNC 3/8“–16 (10 mm deep)
