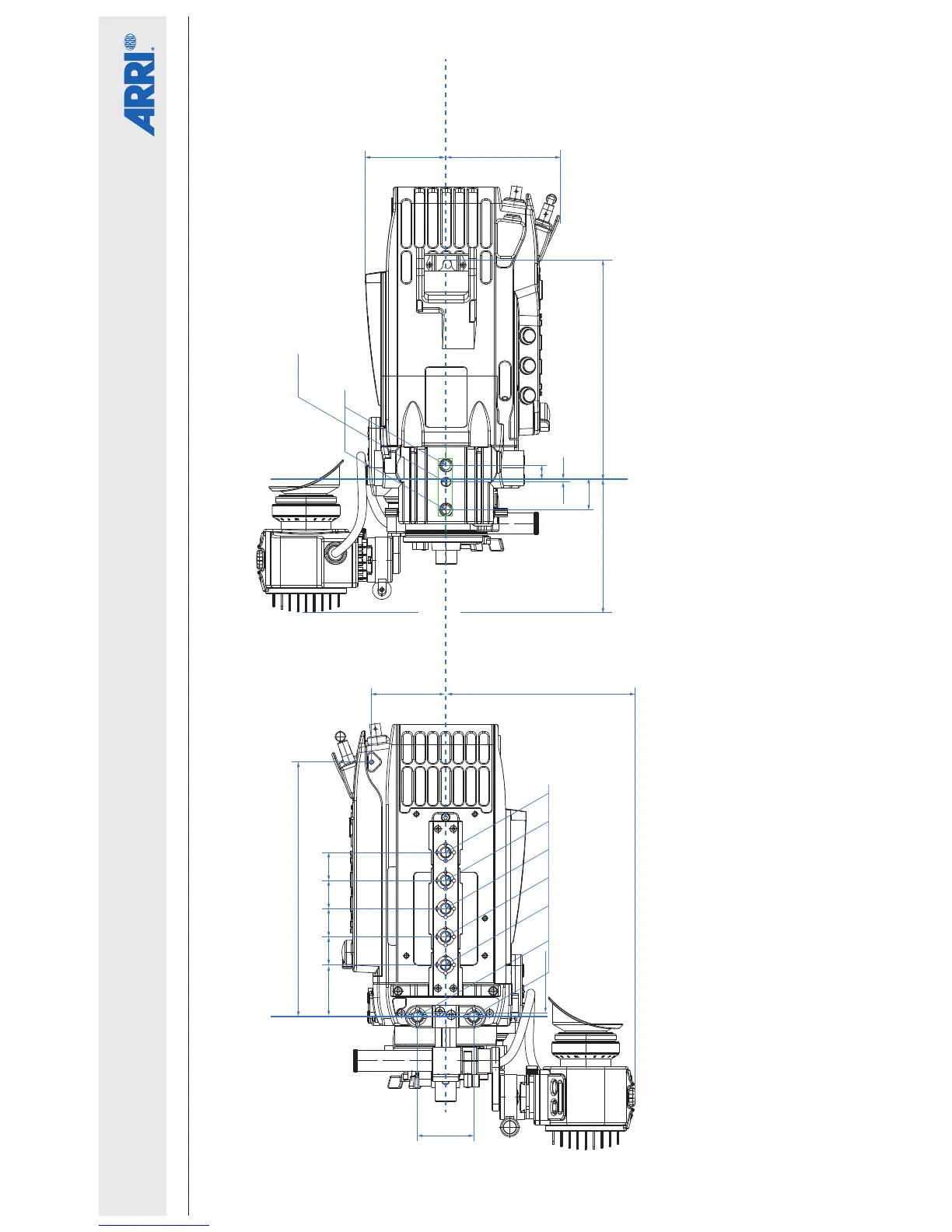

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA Plus
Camera Top Image Plane
Camera Bottom Image Plane
230 mm
9.05”
67 mm
2.64”
46.7 mm
1.84”
46.7 mm
1.84”
3 mm
0.19”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
UNC 3/8“–16 (10 mm deep)
73 mm
2.87”
103 mm
4.06”
UNC 3/8“–16 (10 mm deep)
oval hole 7 mm (+0.022) wide and 8 mm long (4.5 mm deep)
Optical Center
120 mm
4.72”
198 mm
7.79”
27.5 mm
1.08”
2.5 mm
0.1”
12.5 mm
0.49”
50.8 mm
2”
171 mm
6.73”
