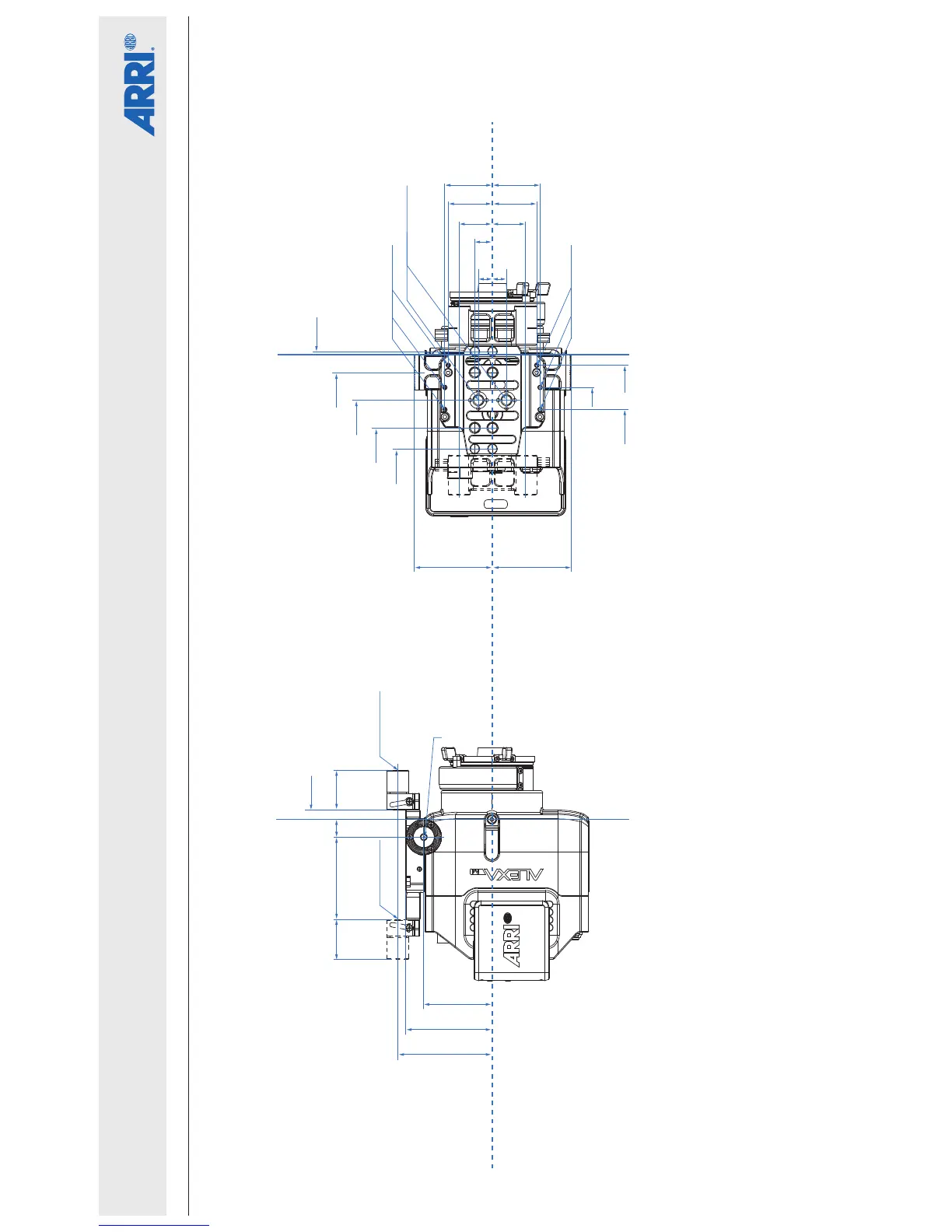

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA M
Head with HEAD-PLATE-2 Right Image Plane
Head with HEAD-PLATE-2 Top Image Plane
Optical Center
74.5 mm
2.93”
36 mm
1.42”
36 mm
1.42”
85 mm
3.35”
78 mm
3.07”
for 15 mm RODSfor 15 mm RODS
2nd 15 mm RODS-Adapter (optional)
43 mm
1.69”
40 mm
1.58”
43 mm
1.69”
40 mm
1.58”
30 mm
1.18”
30 mm
1.18”
16 mm
0.63”
12.7 mm
0.5”
12.7 mm
0.5”
9.5 mm
0.37”
29.5 mm
1.16”
16 mm
0.63”
49.5 mm
1.95”
3 mm
0.12”
8.5 mm
0.34”
41 mm
1.61”
66 mm
2.6”
85 mm
3.35”
16 mm
0.63”
M4 (4 mm deep) M4 (4 mm deep)
UNC 3/8“–16 (10 mm deep)
61.5 mm
2.42”
M6 (3.5mm deep)
70.9 mm
2.8”
70.9 mm
2.8”
