ARRI EVF-1 - Page 283

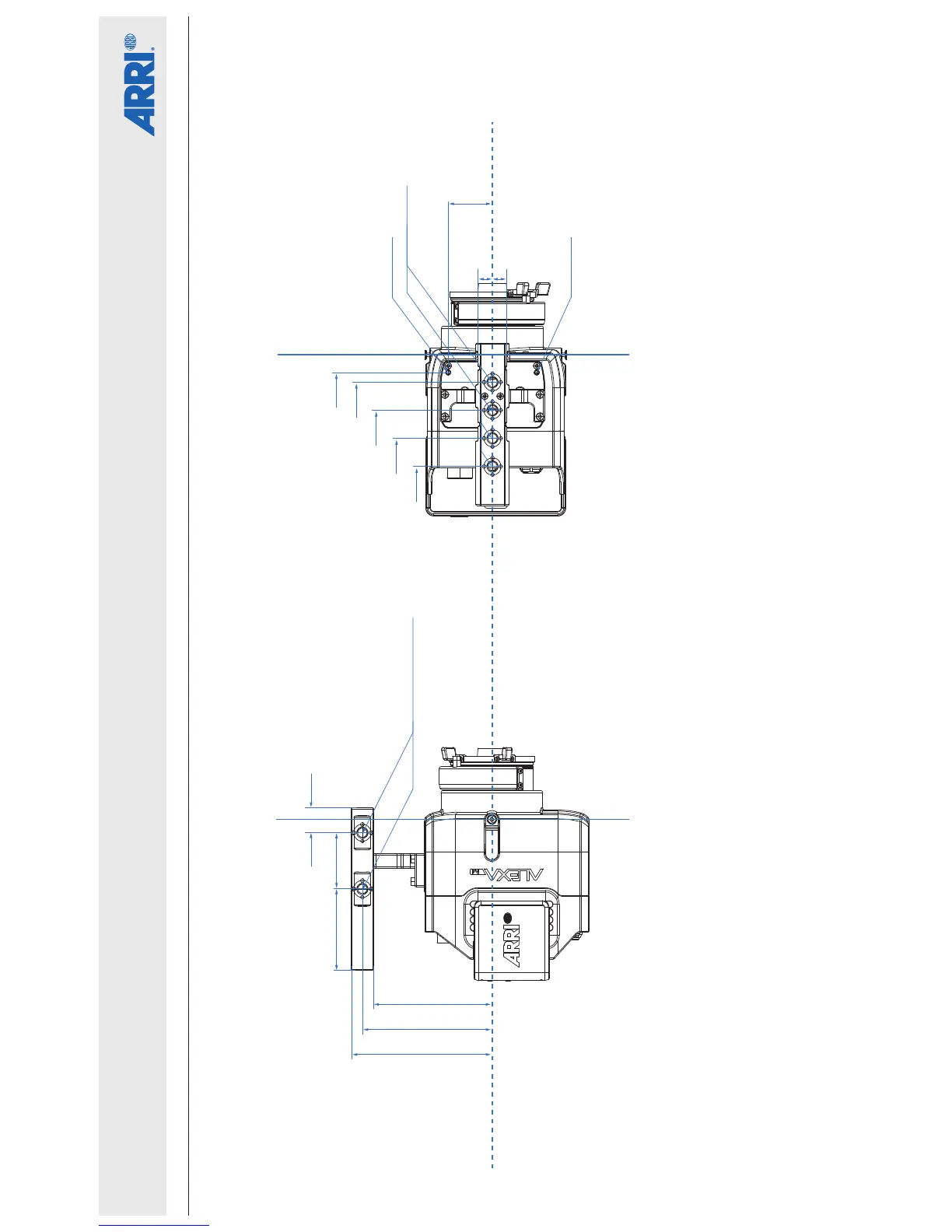

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA M
Head with Handle Right Image Plane
Head with Handle Top Image Plane
Optical Center
50.8 mm
2.0”
73.4 mm
2.89”
127 mm
5.0”
117 mm
4.6”
40 mm
1.58”
13 mm
0.51”
13 mm
0.51”
10.5 mm
0.41”
12.1 mm
0.48”
24.8 mm
0.98”
50.2 mm
1.98”
75.6 mm
2.98”
101 mm
3 .98”
16 mm
0.63”
M4 (4 mm deep) M4 (4 mm deep)
UNC 3/8“–16 (10 mm deep)
107 mm
4.21”
UNC 3/8“–16 (10 mm deep)
