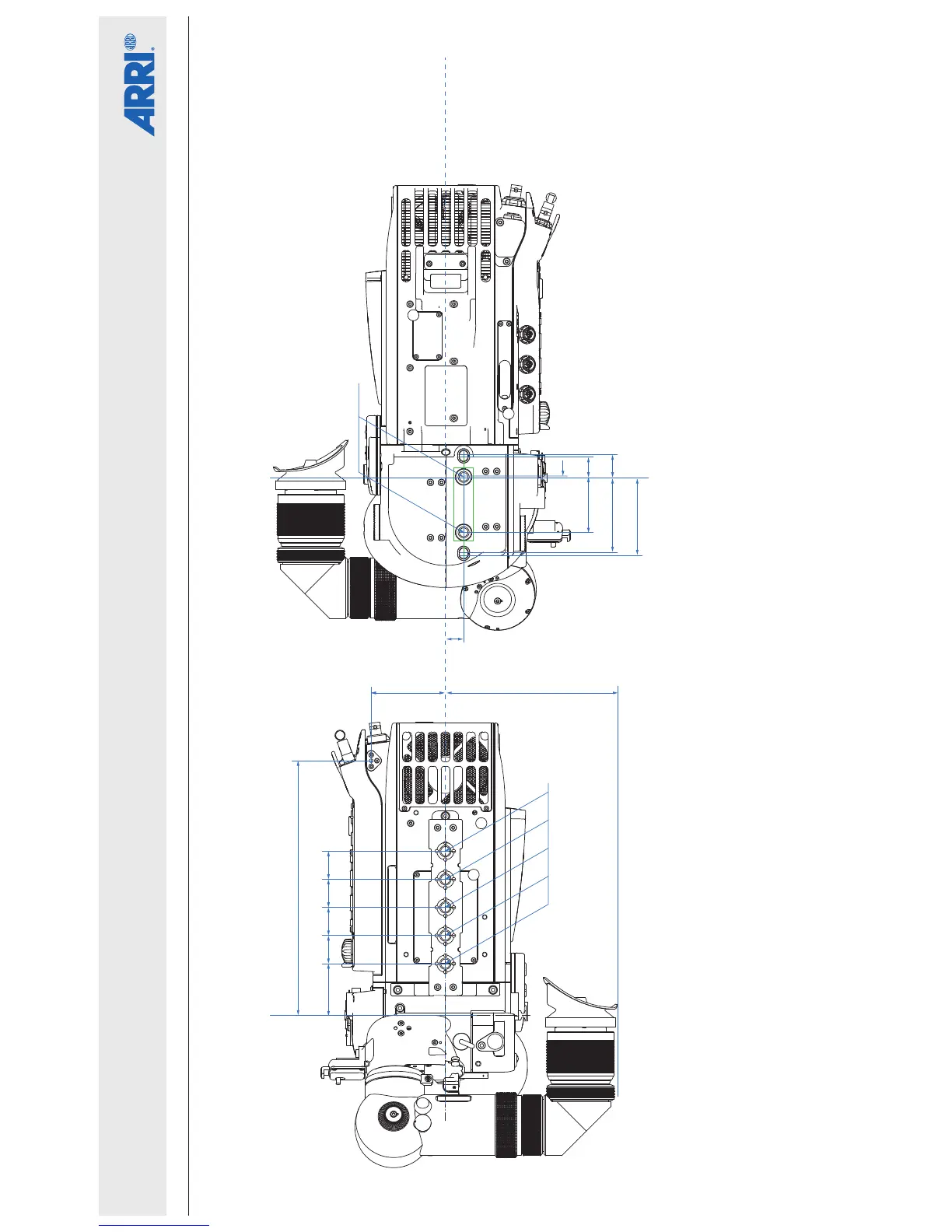

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA Studio
Camera Top Image Plane
Camera Bottom Image Plane
Optical Center
230 mm
9.05”
67 mm
2.64”
16 mm
0.63”
46.7 mm
1.84”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)
49 mm
1.93”
19 mm
0.75”
21 mm
0.83”
67 mm
2.64”
69 mm
2.72”
1 mm
0.04”
156 mm
6.14”
