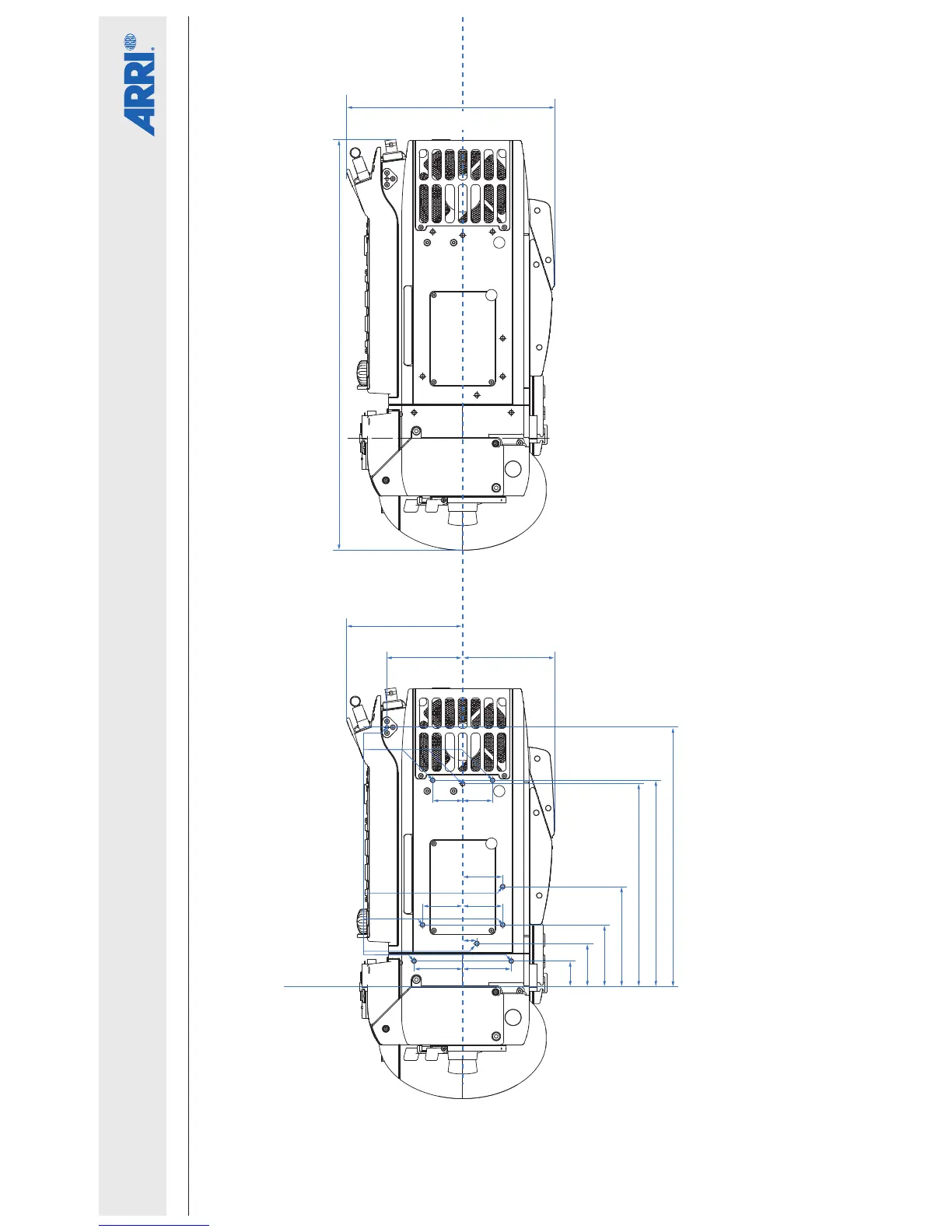

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2013-04
ALEXA Studio with XR Module
80.6 mm
3.17”
364 mm
14.33”
Camera Top Image Plane
Camera Top
67 mm
2.64”
103 mm
4.06”
230 mm
9.06”
183 mm
7.21”
180 mm
7.09”
88.8 mm
3.5”
55 mm
2.17”
38.5mm
1.52”
43 mm
1.69”
43 mm
1.69”
35.5 mm
1.4”
35.5 mm
1.4”
12.6 mm
0.5”
35.5 mm
1.4”
26.5 mm
1.04”
26.5 mm
1.04”
23 mm
0.91”
M4 (4 mm deep)
183.6 mm
7.23”
