Touchstone DG860 Data Gateway User’s Guide

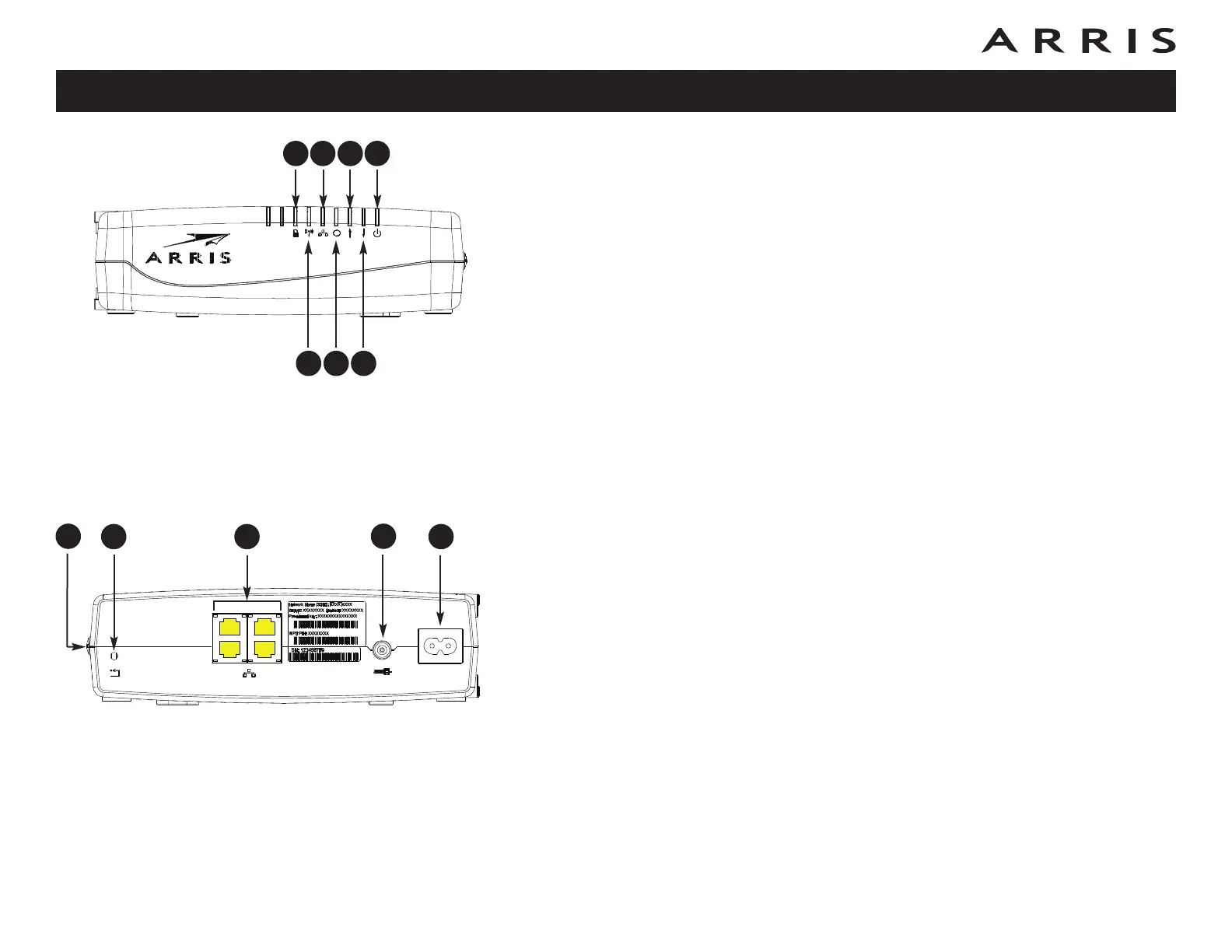

DG860 Front Panel
The front of the DG860 Data Gateway has the following indicators:
A Secure: indicates Wireless Protected Setup (WPS) is active.
B WiFi: indicates the status of the wireless LAN.
C Ethernet: indicates Ethernet connectivity between the Data Gateway and
computers.
D Online: indicates internet data transmission status.
E US: indicates upstream connectivity.
F DS: indicates downstream connectivity.
G Power: indicates whether AC power is available to the unit.
DG860 Rear Panel
The DG860 rear panel has the following connectors and controls:
A WPS button: begins associating the Data Gateway with a wireless device.
B Reset button: resets the Data Gateway as if you power cycled the unit. Use
a pointed non-metallic object to press this button.
C Ethernet (1 - 4): connectors for use with a computer LAN port.
D Cable: connector for the coaxial cable.
E Power: connector for the power cord.
I Power Switch: (DG860S only) power On/Off switch.
DG860
Power
Ethernet
DS
Online
WiFi
Secure
US
B
ECA
D F
G
Reset
Ethernet
10/100/1000
Cable
2
1
4
3
A
CB
D
E
