Touchstone TG862 Telephony Gateway User’s Guide

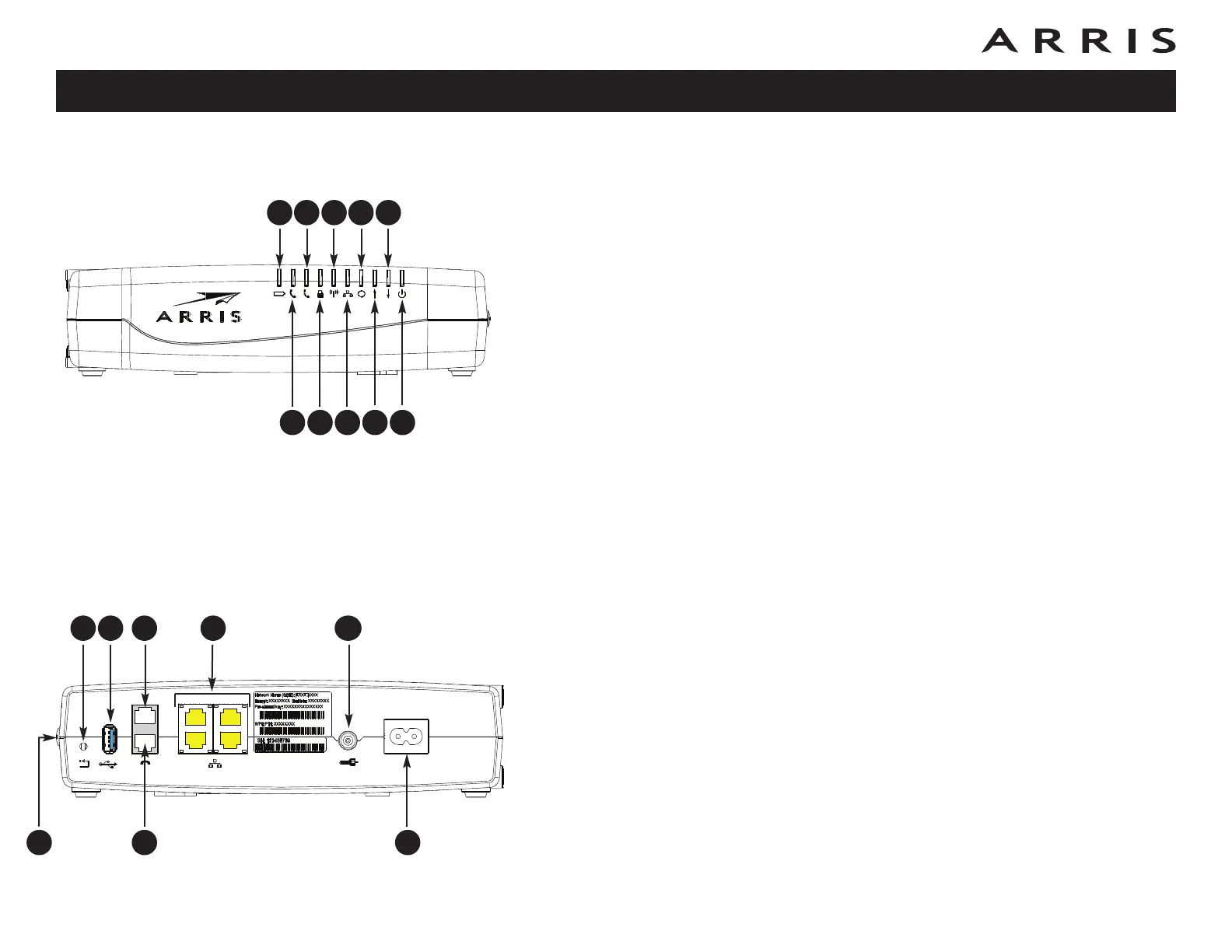

Front Panel
The front of the Telephony Gateway has the following indicators:
A Battery: indicates the battery status.
B Tel 2: indicates the status of telephone line 2.
C Tel 1: indicates the status of telephone line 1.
D Secure: indicates Wireless Protected Setup (WPS) is active.
E WiFi: indicates the status of the wireless LAN.
F Ethernet: indicates Ethernet connectivity between the Telephony Gateway
and computers.
G Online: indicates internet data transmission status.
H US: indicates upstream connectivity.
I DS: indicates downstream connectivity.
J Power: indicates whether AC power is available to the unit.
Rear Panel
The rear of the Telephony Gateway has the following connectors and controls:
A WPS button: begins associating the Telephony Gateway with a wireless de-
vice.
B Reset button: resets the Telephony Gateway as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
C USB: USB host connector - future support for external USB devices
D Telephone 1/2: connector for the first phone line (or both lines of a 2-line
phone).
E Telephone 2: connector for the second phone line.
F Ethernet (1 - 4): connectors for use with a computer LAN port.
G Cable: connector for the coaxial cable.
H Power: connector for the power cord.
