VIP2102 High-Definition IPTV Receiver Installation Manual 7
Connecting to a Standard-Definition Stereo TV

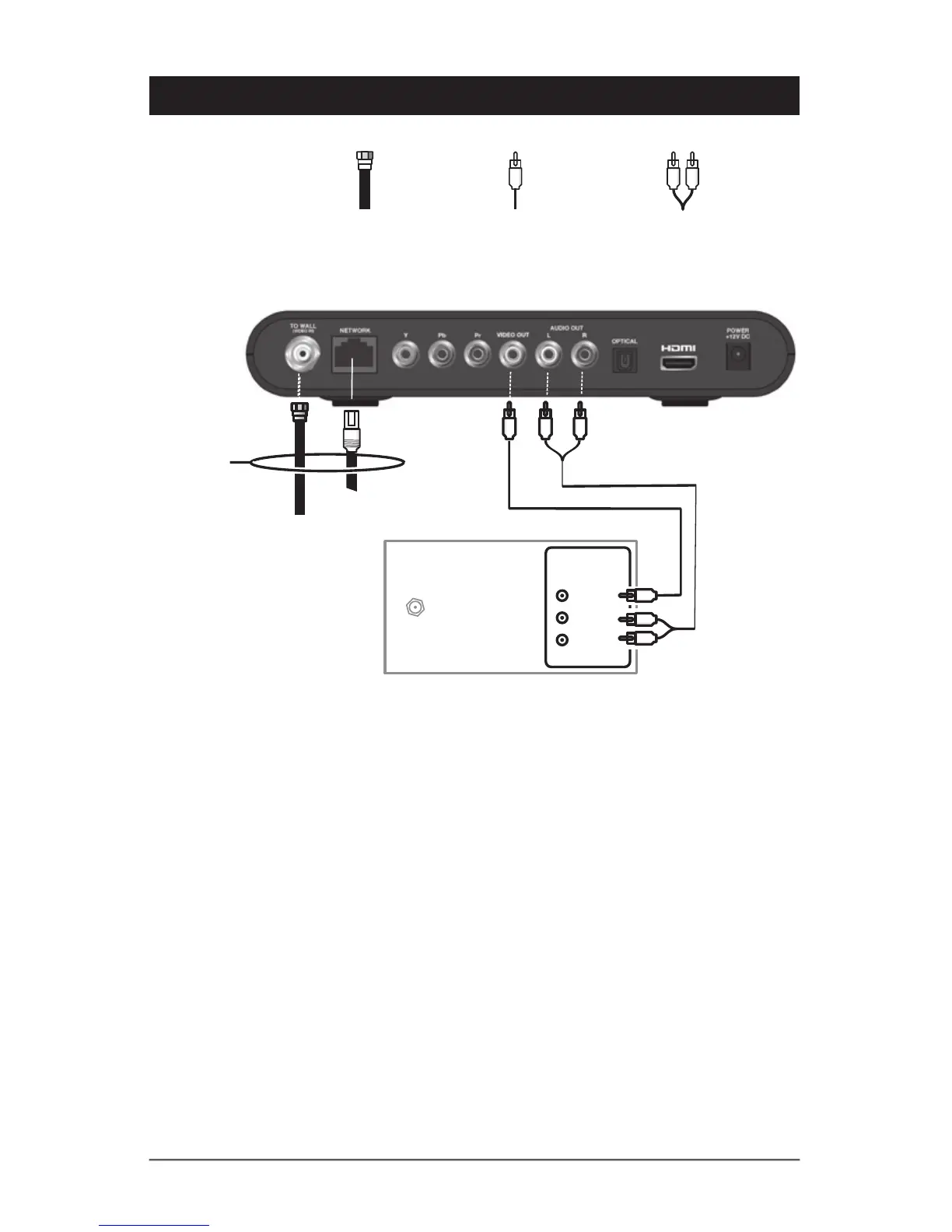

This diagram depicts a method for connecting composite video and two-channel audio to a
standard-definition TV. Note that this video connection method does not support HD video.
For more information, see Connection Options on page 4.
Video in
IP Network
Either / or
CABLE/
ANTENNA IN
INPUT
VIDEO
AUDIO LEFT
AUDIO RIGHT
Sample stereoTV
Baseband video
connection
Baseband audio
connection
RF (75 Ohm)
connection
