VIP2102 High-Definition IPTV Receiver Installation Manual 3

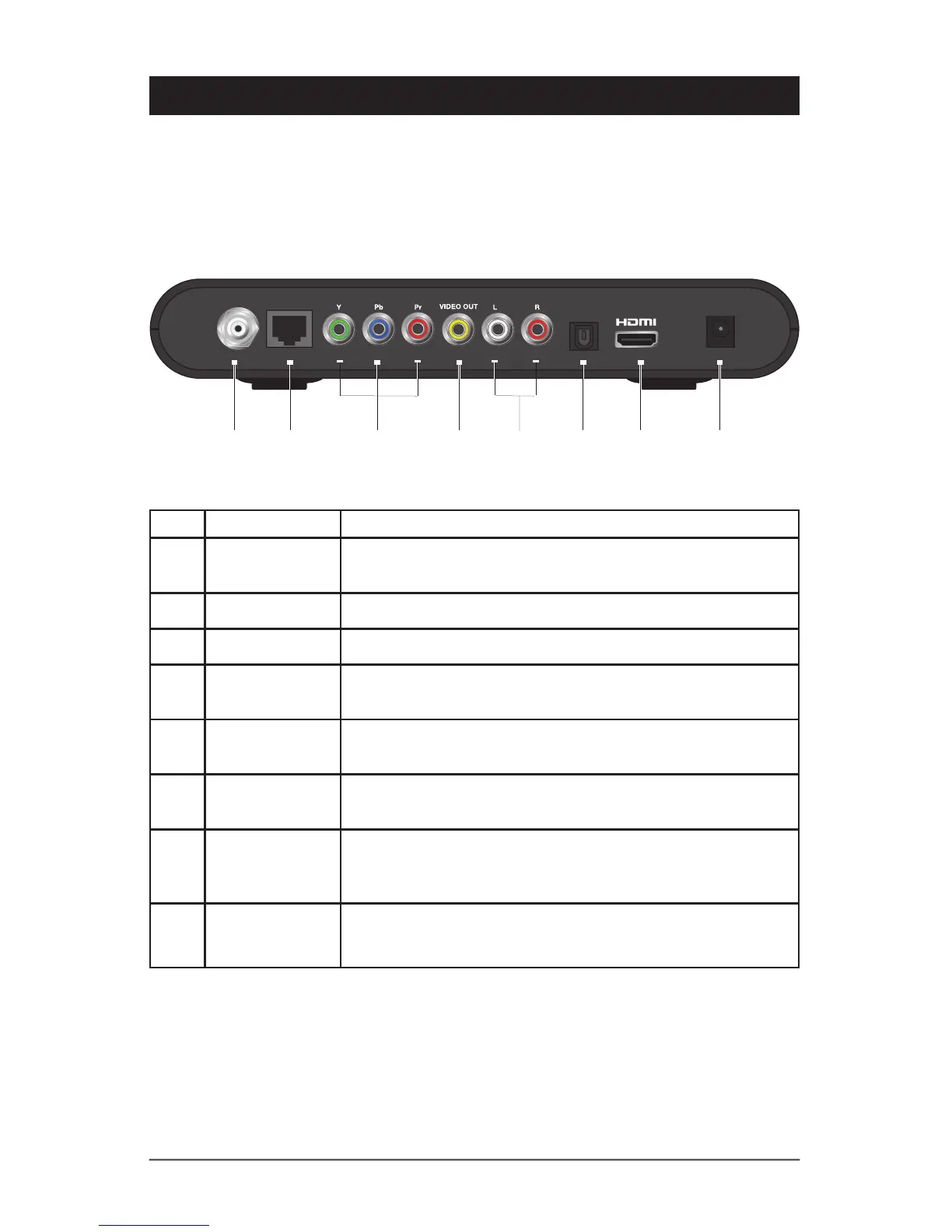

VIP2102 Rear Panel
The VIP2102 rear panel and its connectors are shown below and described in the table that
follows.
Key Item Function
1 TO WALL
(VIDEO IN)
Coaxial input for digital signal from your service provider
2 NETWORK Ethernet 10/100Base-T RJ-45 port for IP video input
3 Y Pb Pr Analog HD component video outputs to an HDTV
4 VIDEO OUT Baseband (Standard Definition) video output for connection
to a TV, VCR, or other device
5 AUDIO OUT
R and L
Left and right stereo audio outputs
6 OPTICAL Toslink (S/PDIF) digital audio output to a compatible TV or
home theater receiver
7 HDMI™ Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter)
8 POWER
+12 VDC
Connector for the DC power adapter
The VIP2102 power adapter is rated at 18-Watts
