Arris VIP2502W - Connecting to a Stereo TV

10 VIP2502W Wireless IPTV Receiver Installation Guide
Connecting to a Stereo TV
POWER
+12V DC
HDMI
NETWORK
OPTICAL
AUDIO OUT
R
VIDEO OUT
Y
Pb
Pr
L
CABLE/
ANTENNA IN
INPUT
S-VIDEO
VIDEO
AUDIO LEFT
AUDIO RIGHT

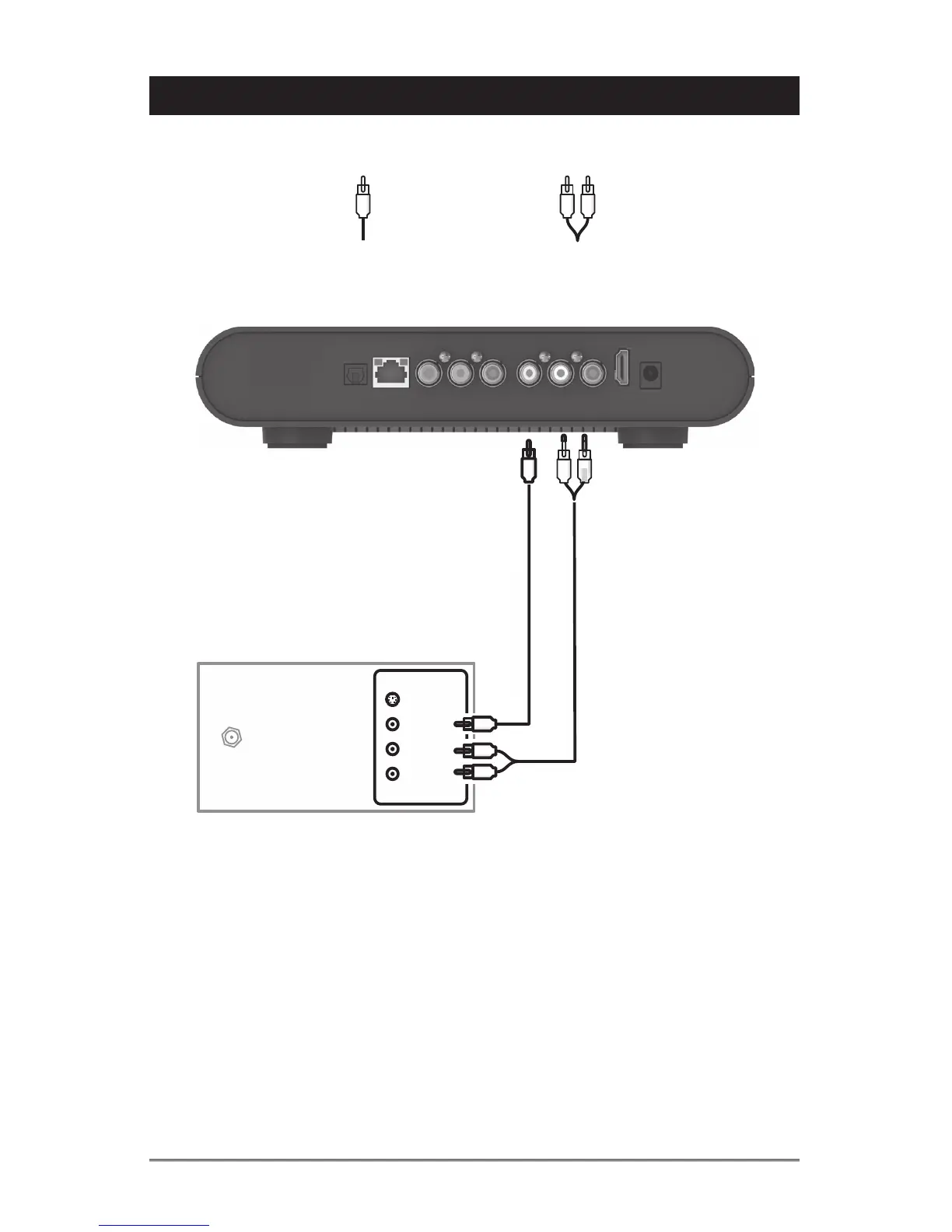

Sample stereoTV
Composite video
connection
Baseband audio
connection
This video connection method does not support HD video. For more information, see
“Connecting an HDTV – Video Only.”
