VIP2502W Wireless IPTV Receiver Installation Guide 3
Rear Panel

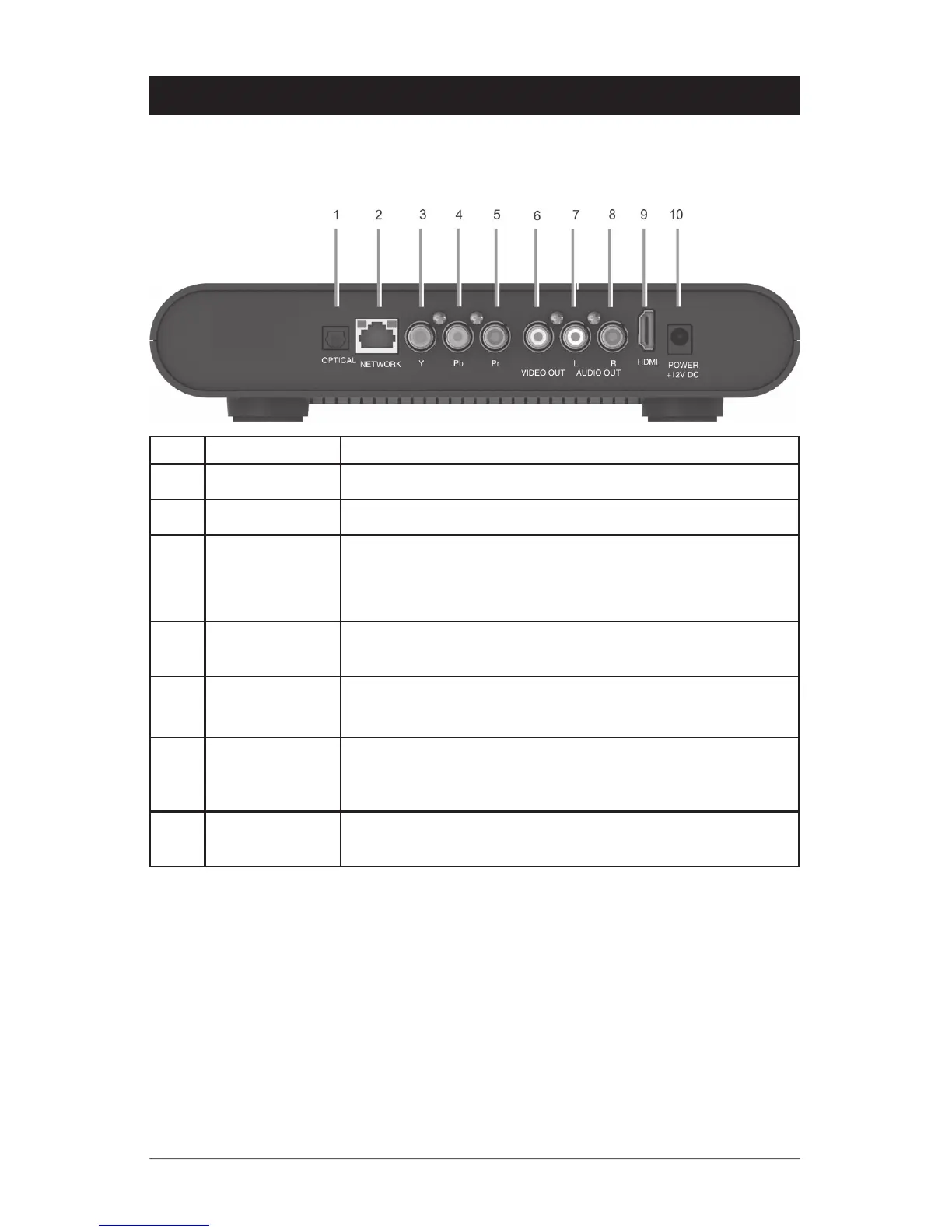

The VIP2502W rear panel features are described in the following table.
Key Item Function
1 OPTICAL Toslink (S/PDIF) digital audio output
2 NETWORK Ethernet 10/100Base-T RJ-45 port
3
4
5
Y
Pb
Pr
RCA component video outputs to an HDTV
6 VIDEO OUT RCA standard-definition composite video output to a TV,
media recorder, or other device
7
8
L R
AUDIO OUT
Left and right RCA stereo audio (analog) outputs
9 HDMI™ Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter)
10 POWER
+12 VDC
Connector for the DC power adapter. Use only the adapter
specified for VIP2502W.
